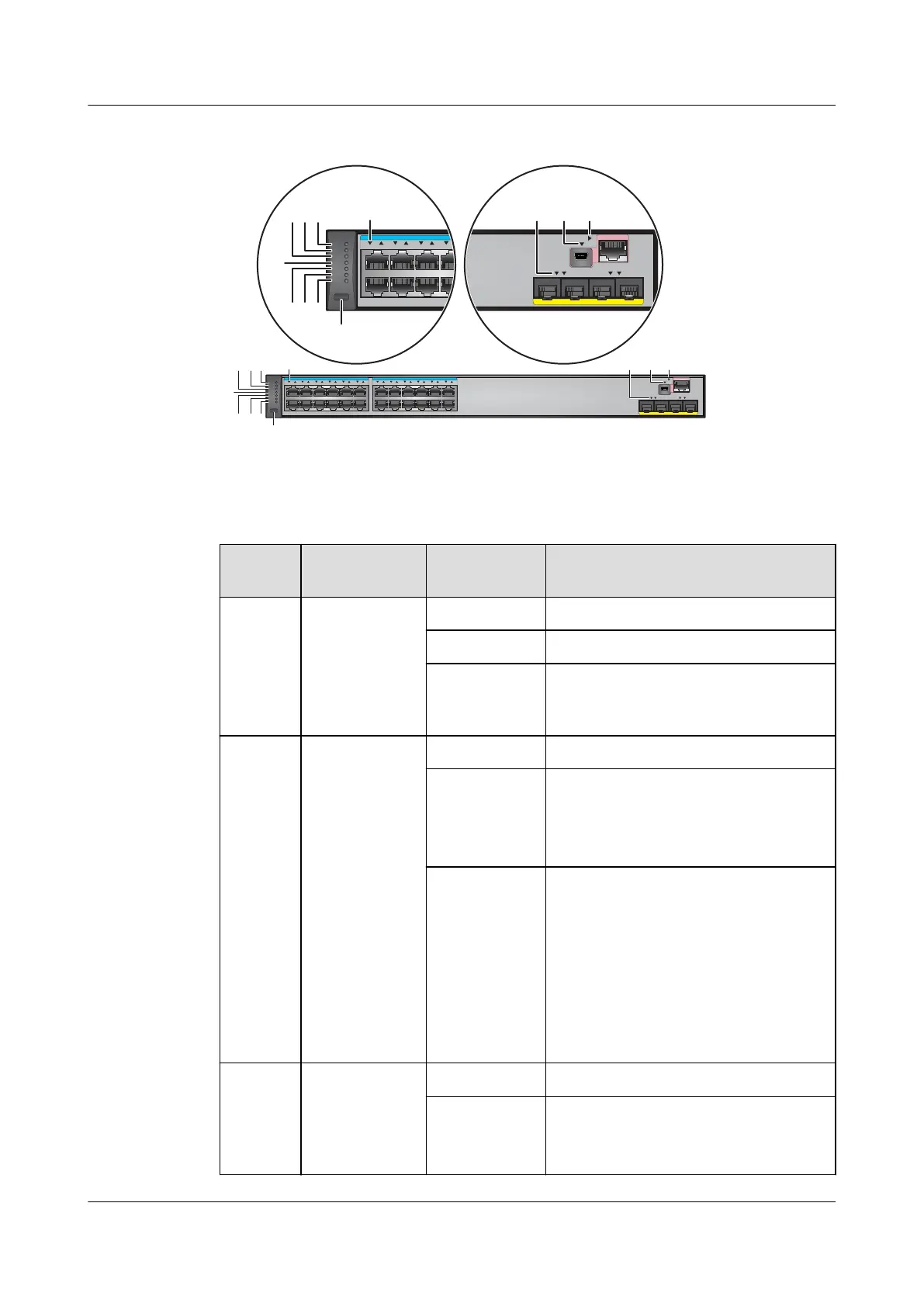

Figure 3-30 Indicators on the S5700-28X-PWR-LI-AC
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
CONSOLE
MODE
STCK
SPED
STAT
SYS
PWR
RPS
PoE
HUAWEI
S5700-28X-PWR-LI-AC
1
23 4
1
910911
8
23
4
765
12 34 56 7
MODE
STCK
SPED
STAT
SYS
PWR
RPS
PoE
HUAWEI
S5700-28X-PWR-LI-AC
1
9
8
23
4
765
CONSOLE
1
23 4
10911
Table 3-79 Description of indicators on the switch
Number
Indicator/
Button
Color Description
1 PWR: internal
power supply
indicator
- Off: The switch is powered off.
Green Steady on: The switch is powered on.
Yellow Steady on: The built-in power module is
faulty, and the switch is powered by the
RPS system.
2 RPS: RPS
power supply
indicator
- Off: No RPS is connected to the switch.
Green
l Steady on: The RPS is in cold backup
state or forced power-on state.
l Blinking: The RPS is providing power
for another device.
Yellow
l Steady on: The RPS is in alarm state.
(No 870 W PoE power module is
available in the RPS1800 or the
RPS1800 cannot provide power
supply to the local switch at this
time.)
l Blinking: The RPS is providing power
for the switch and the built-in power
module of the switch is faulty.
3 SYS: system
status indicator
- Off: The system is not running.
Green
l Fast blinking: The system is starting.
l Slow blinking: The system is running
normally.
S5700 Series Ethernet Switches
