Version Mapping
Table 3-91 lists the mapping between the S5700-28X-LI-24S-DC chassis and software
versions.
Table 3-91 Version mapping
Series Model Software Version
S5700-LI S5700-28X-LI-24S-DC V200R003C00 and later versions
NOTE
This model does not match V200R003C02,
V200R003C10, V200R005C00SPC500,
V200R005C01, V200R005C02, V200R005C03,
or V200R007C10.
Appearance and Structure

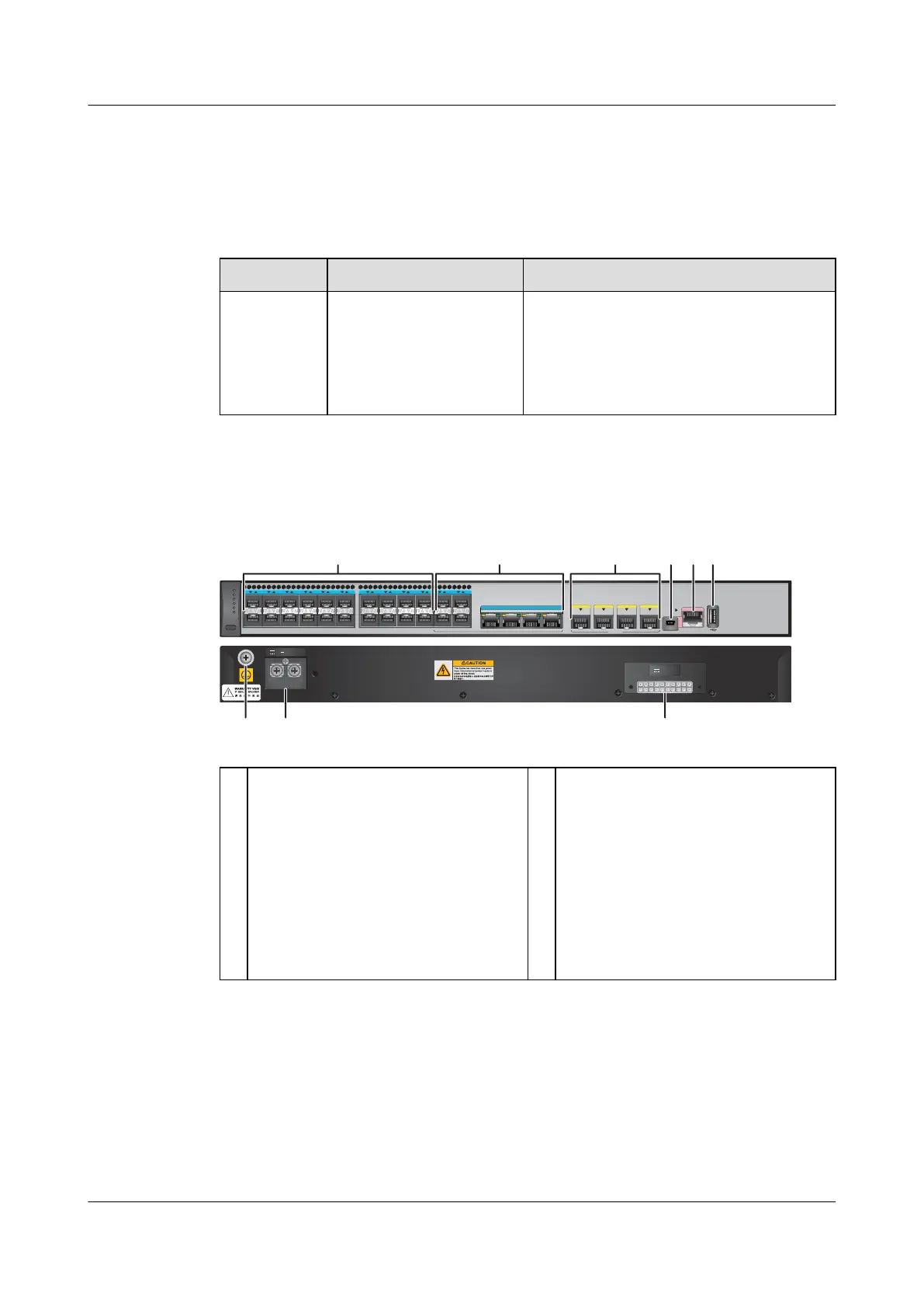

Figure 3-35 S5700-28X-LI-24S-DC appearance
CONSOLE
1 2 3 4
MODE
STCK
SPED
STAT
SYS
RPS
PWR
HUAWEI
S5700-28X-LI-24S-DC
1234567891011 1 2
13 14
15
16
17 18 19 20
21
22
23 24
21 22 23 24
10G/1G
1
78 9
23
456
+12V;8A
-48 -60V;3A
1 Twenty 100/1000BASE-X ports
Applicable modules:
l FE optical module
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
l GE copper module
2 Four combo ports (10/100/1000BASE-T
+ 100/1000BASE-X)
Modules applicable to combo optical
ports:
l FE optical module
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
