The mini USB port is connected to a console for on-site configuration. When both the Mini
USB and console port have a cable connected, only the Mini USB port works.
Indicator Description
The S5700-10P-LI-AC has similar indicators to those of the S5700-28X-LI-AC, except that
the S5700-10P-LI-AC does not have RPS and STCK indicators and two GE optical ports do
not support the Speed mode. For details, see Indicator Description.
Power Supply Configuration
The S5700-10P-LI-AC has a built-in power module and does not support pluggable power
modules.
Figure 3-3 shows the power supply mode of a built-in AC power module. The built-in AC
power module (PWR) receives power from an external power source and provides a 12 V
output to the chassis.

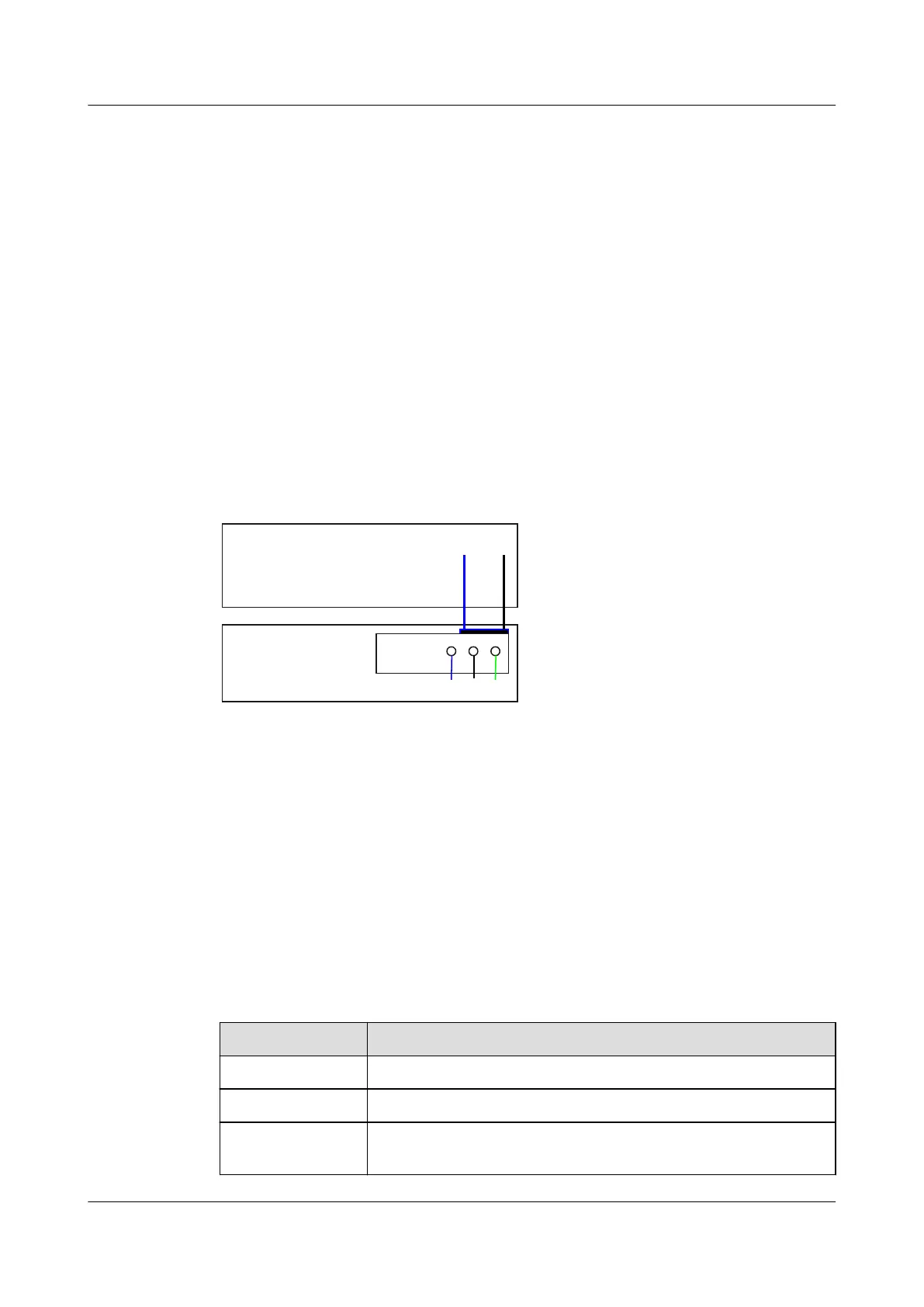

Figure 3-3 Power supply mode of a built-in AC power module
Motherboard
GND12V
PWR
L N PGND
L: live wire N: neutral wire PGND: protection ground GND: 12 V reference ground
Heat Dissipation
The S5700-10P-LI-AC has no fans and uses natural heat dissipation.
Technical Specifications
Table 3-8 lists specifications of the S5700-10P-LI-AC.
Table 3-8 Technical specifications
Item
Description
Memory (RAM) 256 MB
Flash 200 MB
Mean time between
failures (MTBF)
44.41 years
