Huawei S6700 Series

S6700-48-EI

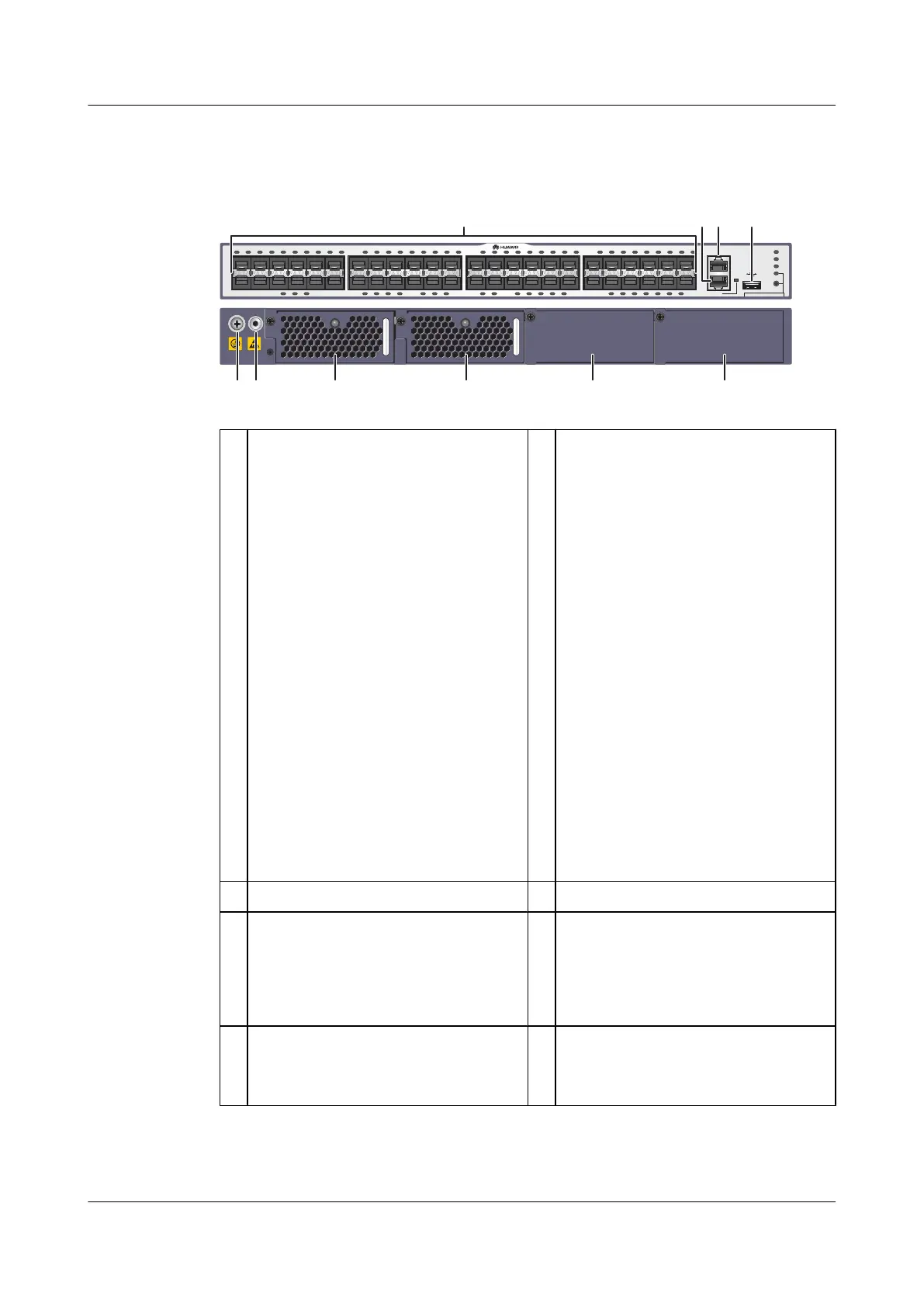

Figure 2-3 Appearance of the S6700-48-EI
2
1
11
12
13
14
23
24
25
26
35
36
37
38
47
48
Quidway S6700 Series
CONSOLE
ETH
GREEN=SPEED RED=STACK
LINK/ACT
PWR1
PWR2
SYS
MODE
STATUS STATUS
1
56 7 8 9 10
23 4
1 Forty-eight 10GE SFP+ Ethernet
optical ports
Applicable modules and cables:
l GE optical module
l GE-CWDM optical module
l GE SFP copper module (applicable
in V200R001C01 and later versions)
l 10GE SFP+ optical module
l 10GE-CWDM optical module
(applicable in V200R005C00 and
later versions)
l 1 m or 3 m SFP+ copper cable
l 5 m SFP+ copper cable (applicable
in V200R005C02 version)
l 10 m SFP+ copper cable (applicable
in V200R001C00 and later versions)
l 3 m, 10 m AOC cables (applicable in
V200R003C00 and later versions)
2
One ETH management port
3 One console port 4 One USB port
5 Ground screw
NOTE
It is used with a ground cable.
6 ESD jack
NOTE
When you install or maintain a switch, wear an
ESD wrist strap and insert the other end of the
ESD wrist strap into this ESD jack.
7 Fan module slot 2
NOTE
Available fans: CX7E1FANA Fan Module
8 Fan module slot 1
NOTE
Available fans: CX7E1FANA Fan Module
