Panel Description

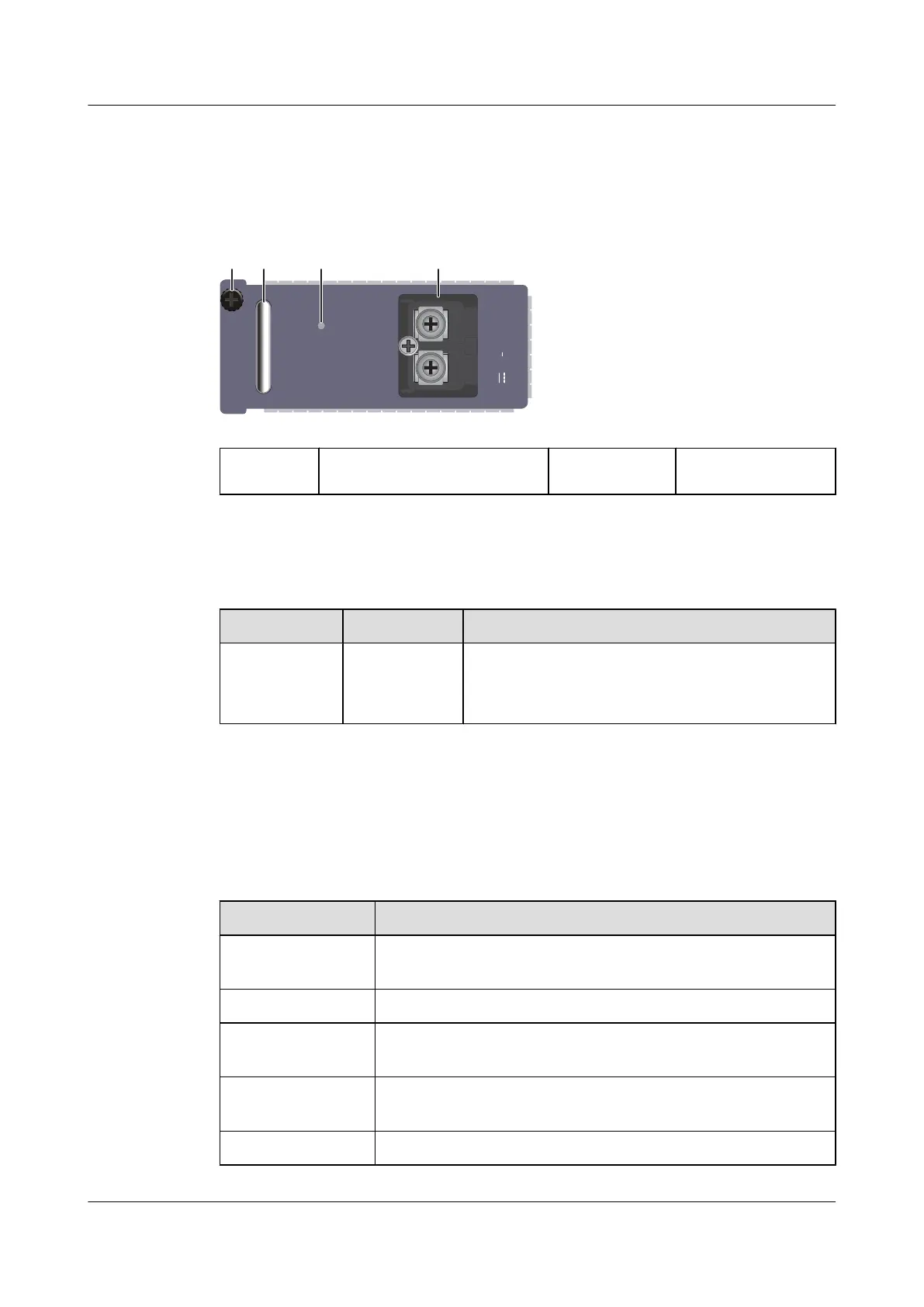

Figure 3-4 shows the panel of a 500 W DC power module.
Figure 3-4 Panel of a 500 W DC power module
STATUS
LS6W2PSD0500
NEG(-) RTN(+)
-48 -60V ; 13A
14 2 3
1. Handle 2. Power status indicator 3. DC socket 4. Captive screw
Table 3-7 describes indicators on a 500 W DC power module panel.
Table 3-7 Description of indicators on a 500 W DC power module panel
Indicator Color Description
STATUS Green
l Off: No DC power input is provided.
l Steady on: The DC input power is in the normal
range.
Specifications
Table 3-8 describes technical specifications of a 500 W DC power module.
Table 3-8 Technical specifications of a 500 W DC power module
Item Description
Dimensions (W x D x
H)
100 mm x 205 mm x 40 mm
Weight 1 kg
Rated input voltage
range
-48 V DC to -60 V DC
Maximum input
voltage range
-38.4 V DC to -72 V DC
Input current 13 A
