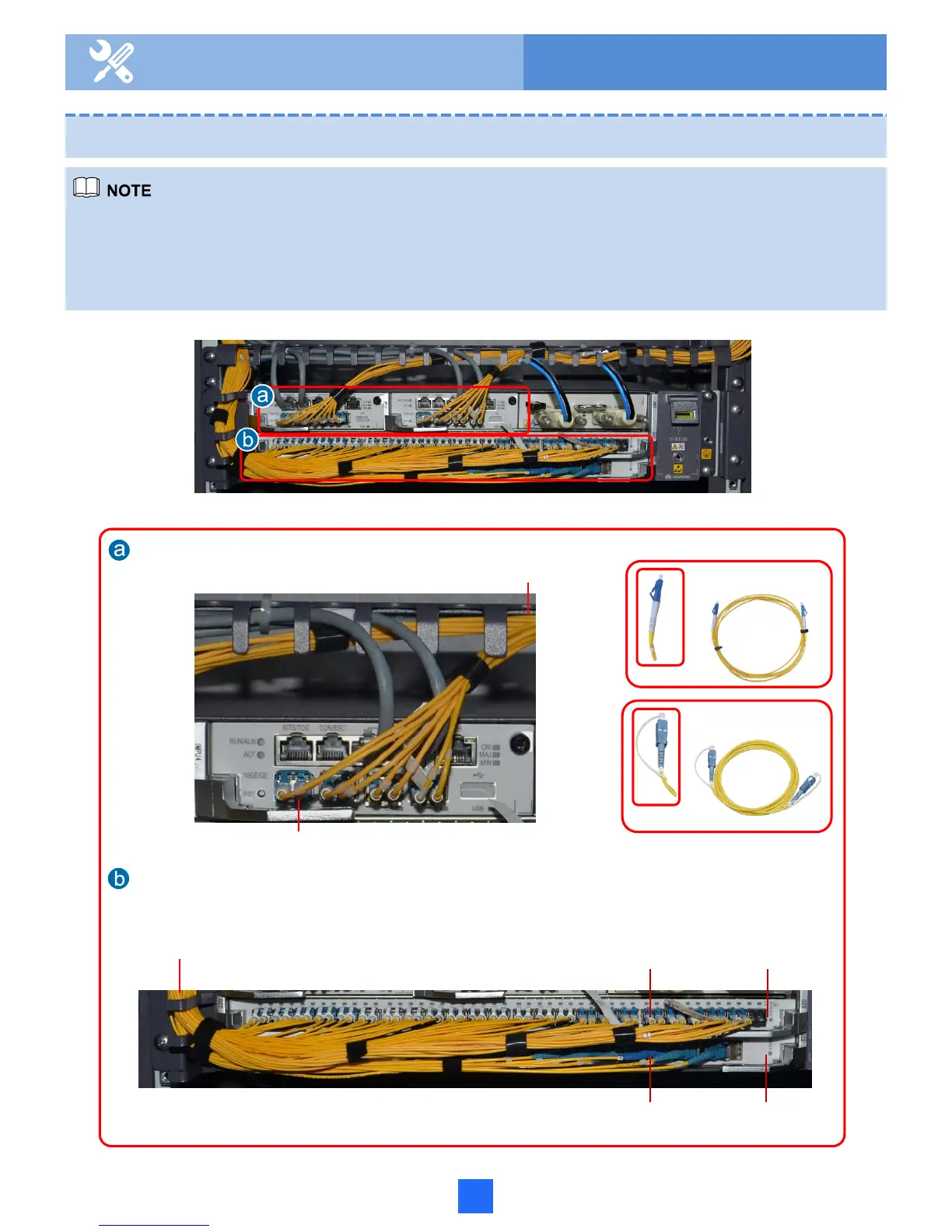

7.3 Routing Optical Fibers
7 Routing Cables
• When handling optical fibers, do not stand close to or look into the optical fiber port directly
with naked eyes.
• The bending radius of the optical fiber should be more than 20 times the cable diameter. In
general, the bending radius of the optical fiber is greater than or equal to 40 mm.
LC
LC
SC
P2P board
PON board
To ODF
Fiber for uplink
Fiber for service
Optical fiber (LC)
Optical fiber (SC)
To ODF
12
