12

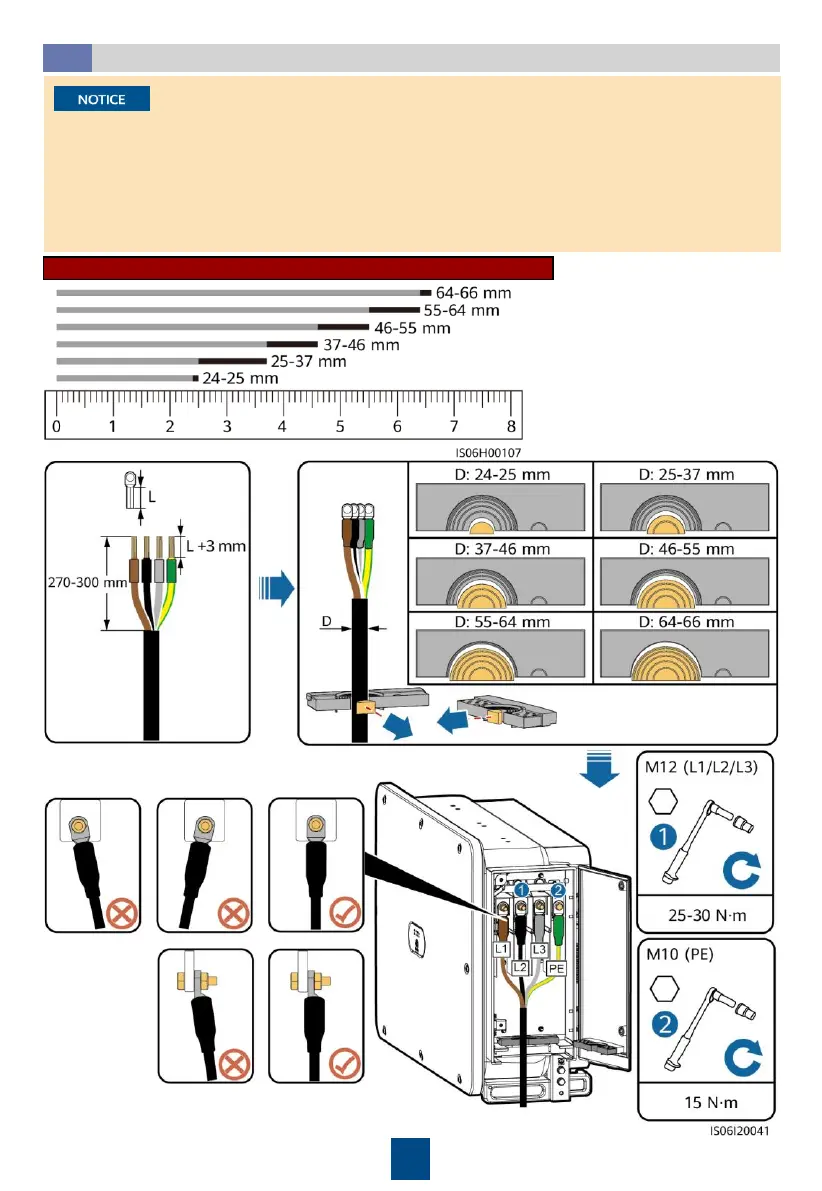

Multi-Core Cable (Four-Core Cable Is Used as an Example)
Installing AC Output Power Cables
4.7
(five rings)
(four rings)
(three rings)
(two rings)
(one ring)
(six rings)
• Remove the corresponding rubber rings in strict accordance with the cable diameter, and ensure
that the crimping module is not damaged. Otherwise the protection level of the solar inverter
will be affected.
• Ensure that AC terminations provide firm and solid electrical connections. Failing to do so may
cause SUN2000 malfunction and damage to its terminal block, even starting thermal events.
• If the AC output power cables are subject to a pulling force because the inverter is not installed
stably, ensure that the last cable that bears the stress is the PE cable.
