Huawei SUN2000-20KTL-M2 Quick Guide

5

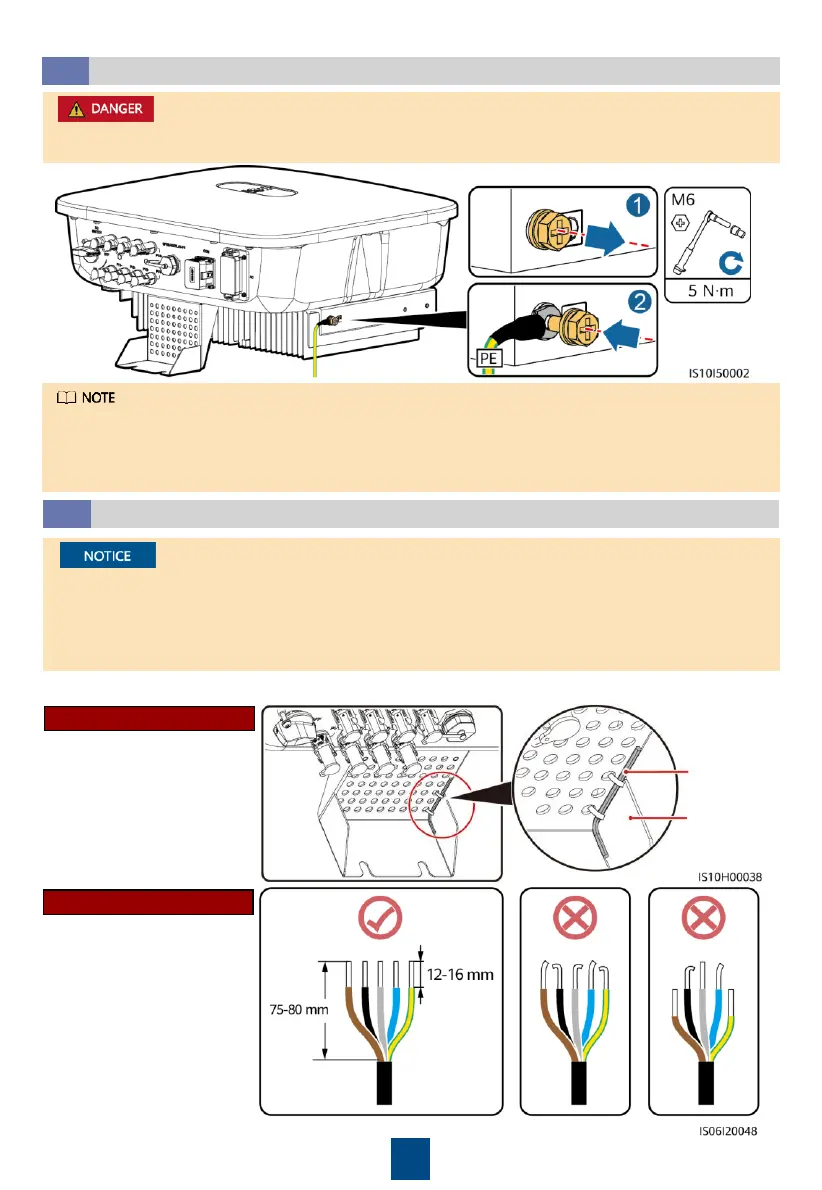

Installing the PE Cable
3.2
Do not connect the neutral wire to the enclosure as a PE cable. Otherwise, electric shocks may
occur.
•
The PE point at the AC output port is used only as a PE equipotential point, and cannot
substitute for the PE point on the enclosure.
•
It is recommended that silica gel or paint be used around the ground terminal after the PE
cable is connected.
Installing the AC Output Power Cable
3.3
•
Ensure that the protection layer of the AC output power cable is inside the connector, the
core wires are totally inserted into the cable hole, and the cable is connected securely. Failing
to do so may cause device malfunction or damage.
•
The hex key is delivered with the inverter and bound to the hanging kit at the bottom of the
inverter.
Hanging kit
Hex key
1. Connect the AC output power cable to the AC connector.
Stripping requirements
Hex key

Huawei SUN2000-20KTL-M2 Specifications

General

Model	SUN2000-20KTL-M2
Type	String Inverter
Max. efficiency	98.6%
European efficiency	98.3%
Max. input voltage	1100 V
Max. input current per MPPT	26 A
Number of MPPTs	2
Rated output power	20, 000 W
Start Voltage	200 V
MPPT Voltage Range	200 V - 1000 V
Max. AC Power	22, 000 VA
Output Frequency	50 Hz / 60 Hz
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Rated AC Voltage	230 V / 400 V
Max. Input Power	30, 000 W
Max. Output Power	22, 000 W
Rated Output Voltage	230 V / 400 V
