Huawei SUN2000-20KTL-M2 Quick Guide

6

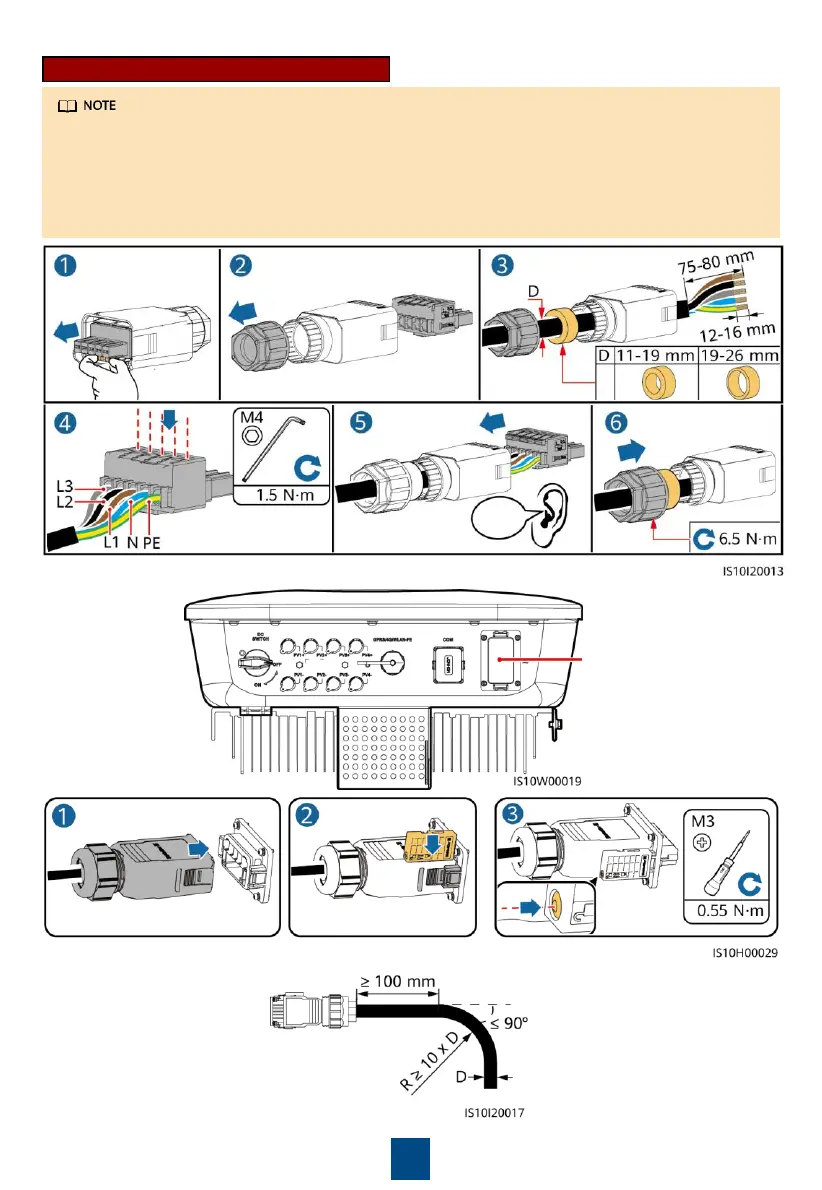

Five-Core Cable (L1, L2, L3, N, and PE)
Click
2. Connect the AC connector to the AC output port.
AC output port (AC)
3. Check the route of the AC output power cable.
• This section describes how to connect a five-core AC output power cable to an AC connector.
• A three-core AC output power cable can be connected similarly. The three-core cable (L1, L2,
and L3) is not connected to the neutral wire or PE wire.
• A four-core or five-core AC output power cable can be connected similarly. The four-core
cable (L1, L2, L3, and PE) is not connected to the N wire, and the four-core cable (L1, L2, L3,
and N) is not connected to the PE wire.

Huawei SUN2000-20KTL-M2 Specifications

General

Model	SUN2000-20KTL-M2
Type	String Inverter
Max. efficiency	98.6%
European efficiency	98.3%
Max. input voltage	1100 V
Max. input current per MPPT	26 A
Number of MPPTs	2
Rated output power	20, 000 W
Start Voltage	200 V
MPPT Voltage Range	200 V - 1000 V
Max. AC Power	22, 000 VA
Output Frequency	50 Hz / 60 Hz
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Rated AC Voltage	230 V / 400 V
Max. Input Power	30, 000 W
Max. Output Power	22, 000 W
Rated Output Voltage	230 V / 400 V
