Huawei SUN2000-20KTL-M2 Quick Guide

8
Click

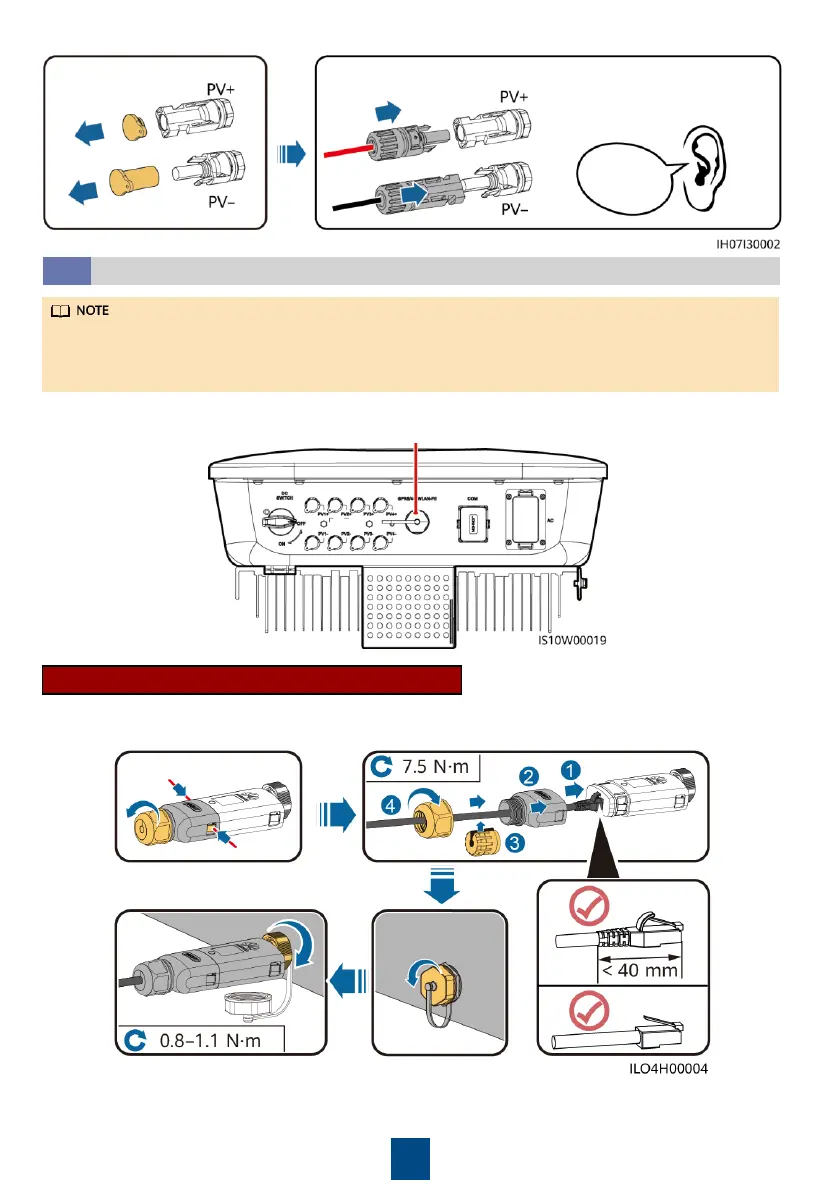

Pull the DC input power cable
back to ensure that it is
connected securely.
Smart Dongle port (GPRS/4G/WLAN-FE)
(Optional) Installing the Smart Dongle
3.5
•
If WLAN-FE communication is used, install a WLAN-FE Smart Dongle (SDongleA-05).
•
If 4G communication is used, install a 4G Smart Dongle (SDongleA-03).
•
You need to purchase the Smart Dongle by yourself.
WLAN-FE Smart Dongle (FE Communication)
You are advised to use a CAT 5E outdoor shielded network cable (outer diameter < 9 mm; internal
resistance ≤ 1.5 Ω/10 m) and shielded RJ45 connectors.
GPRS/4G/WLAN-FE

Huawei SUN2000-20KTL-M2 Specifications

General

Model	SUN2000-20KTL-M2
Type	String Inverter
Max. efficiency	98.6%
European efficiency	98.3%
Max. input voltage	1100 V
Max. input current per MPPT	26 A
Number of MPPTs	2
Rated output power	20, 000 W
Start Voltage	200 V
MPPT Voltage Range	200 V - 1000 V
Max. AC Power	22, 000 VA
Output Frequency	50 Hz / 60 Hz
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Rated AC Voltage	230 V / 400 V
Max. Input Power	30, 000 W
Max. Output Power	22, 000 W
Rated Output Voltage	230 V / 400 V
