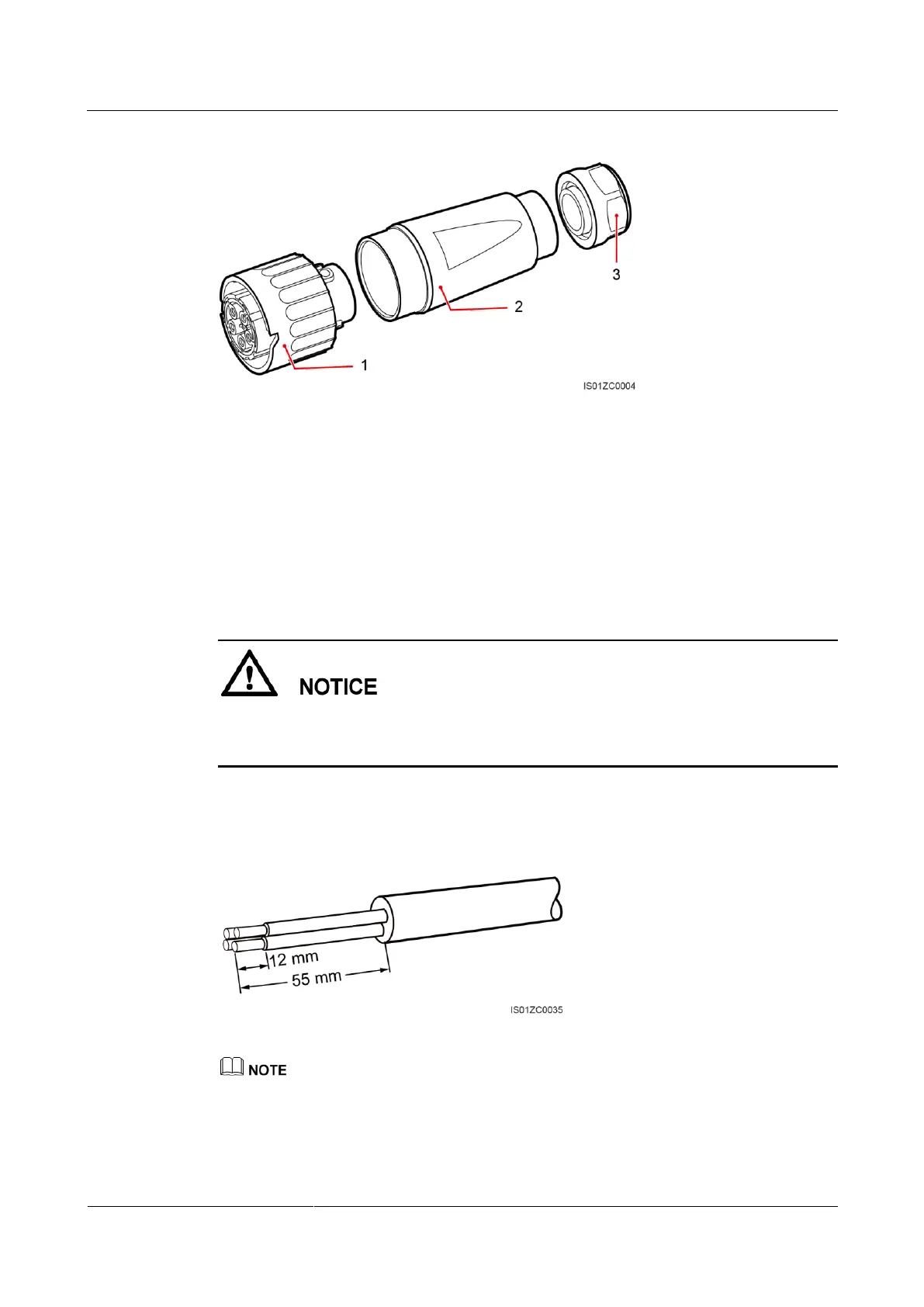

Figure 5-5 AC output connector
Procedure
Step 1 Remove the cable gland and adapter from the AC output connector.
Step 2 Remove an appropriate length of the jacket and insulation layer of the core wires from the AC
output cable using a wire stripper, as shown in Figure 5-6.
The core wires (L1, L2, L3, and N) of the AC power cable must be correctly identified to
prevent incorrect cable connections which can cause device damage or startup failure. (No
neutral cable connections are involved for the SUN2000-28KTL.)
1. Strip the jacket of the AC output cable by 55 mm.
2. Strip the insulation layer of each core wire by 12 mm.
Figure 5-6 Stripped length
The preceding figure shows the stripped length only for all SUN2000 models except the
SUN2000-28KTL. For the SUN2000-28KTL, align the neutral cable with the protective jacket and cut
off the neutral cable.
