When cutting off the cable, take protective measures to prevent personal injury.
Step 3 Insert the core wires (L1, L2, L3, and N) of the AC output cable into the cable gland and the
adapter, as shown in Figure 5-8.
If the outer diameter of the cable is greater than 16 mm, remove a seal ring from the interior of the cable
gland (as shown in Figure 5-7) before inserting the power cable into the cable gland and the adapter.

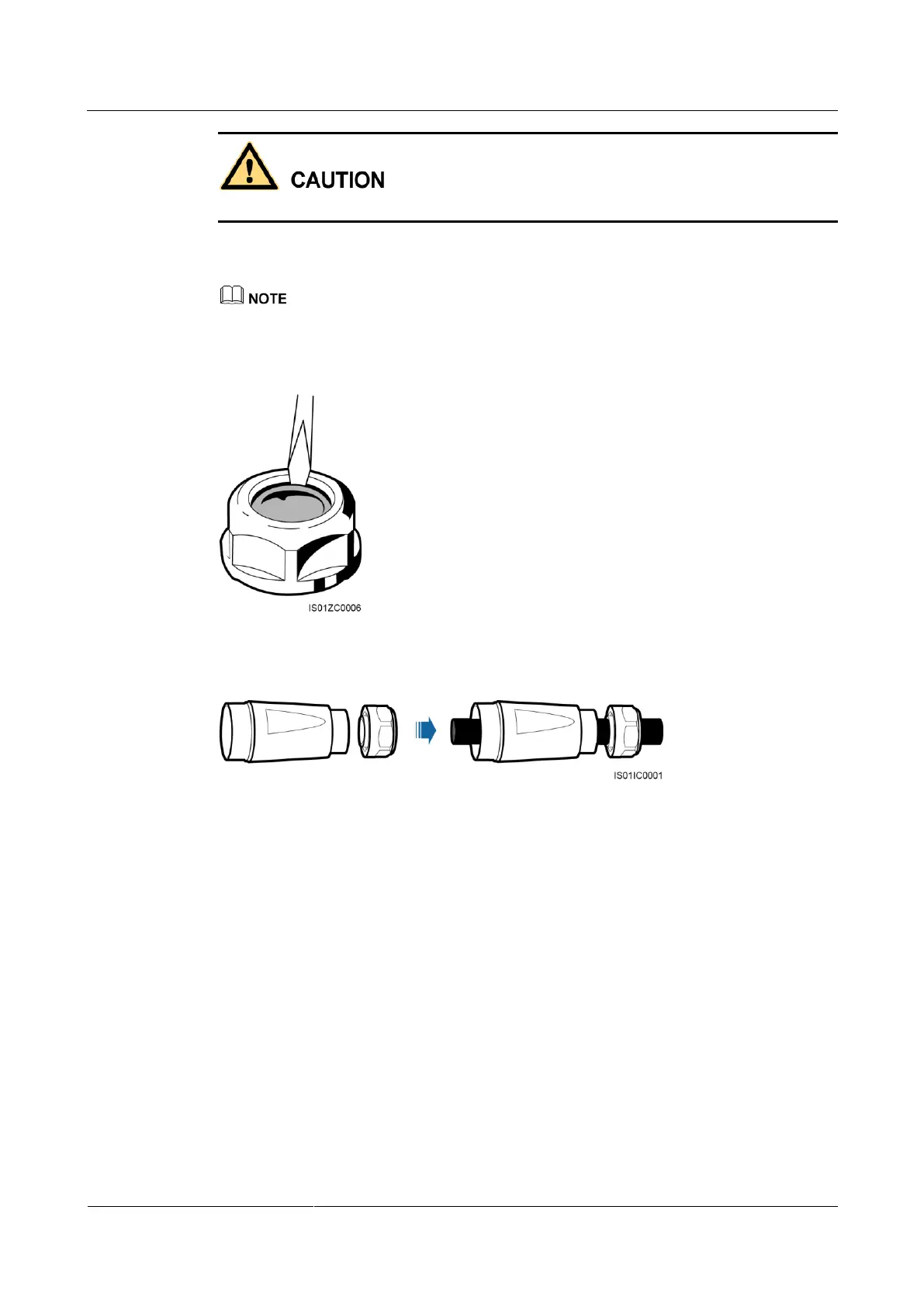

Figure 5-7 Stripping a seal ring
Figure 5-8 Installing a cable gland and adapter
Step 4 Loosen the screws of the coupler holes using a torque screwdriver. Insert the core wires into
the corresponding holes as shown in Figure 5-9. Tighten the screws to a torque of 0.7 N·m, as
shown in Figure 5-10.
