Huawei SUN2000-40KTL-M3 Quick Guide

5

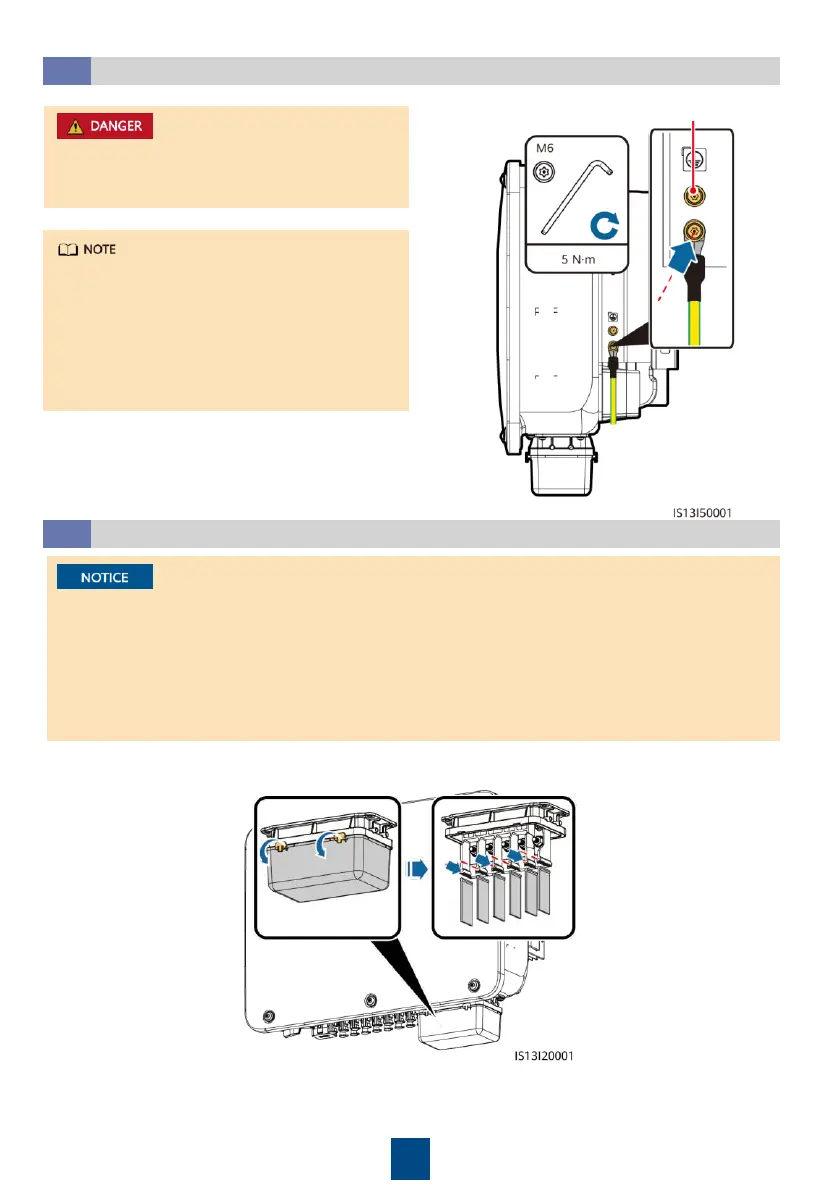

Connecting a PE Cable
4.2
•
The PE point at the AC output port is used
only as a PE equipotential point, not a
substitute for the PE point on the
enclosure.
•
It is recommended that silica gel or paint
be applied around the ground terminal
after the PE cable is connected.
Do not connect the neutral wire to the
enclosure as a PE cable. Otherwise, electric
shocks may occur.
Installing the AC Output Power Cable
4.3
•
Use a socket wrench and extension rod to connect the AC power cable. The extension rod
must be longer than 100 mm.
•
Sufficient slack should be provided in the PE cable to ensure that the last cable bearing the
force is the PE cable when the AC output power cable bears pulling force due to force
majeure.
•
Do not install third-party devices in the AC connection box.
•
You need to prepare M8 OT terminals by yourself.
1. Remove the AC terminal box and install partition boards.
Reserved PE point

Huawei SUN2000-40KTL-M3 Specifications

General

Max. Efficiency	98.7%
European Efficiency	98.4%
Max. Input Voltage	1100 V
MPPT Operating Voltage Range	200 V - 1000 V
Max. Input Current per MPPT	26 A
Number of MPPTs	4
Rated Output Power	40000 W
Rated AC Voltage	400 V
Rated AC Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
Total Harmonic Distortion (THD)	<3%
DC Reverse-Polarity Protection	Yes
AC Overcurrent Protection	Yes
DC Surge Protection	Type II
AC Surge Protection	Type II
Insulation Monitoring	Yes
Residual Current Monitoring	Yes
DC Switch	Yes
Protection Class	IP66
Operating Temperature Range	-25°C to +60°C
Relative Humidity (Operating)	0% - 100%
Cooling	Natural Convection
Max. Apparent AC Power	44000 VA
AC Voltage Range	320 V - 480 V
Operating Altitude	4000 m
Display	LED Indicators
Communication	RS485, WLAN
Weight	43 kg
Max. DC Power	60000 W
