15
5. Tighten the thread-lock sealing nut and seal the cable gland.

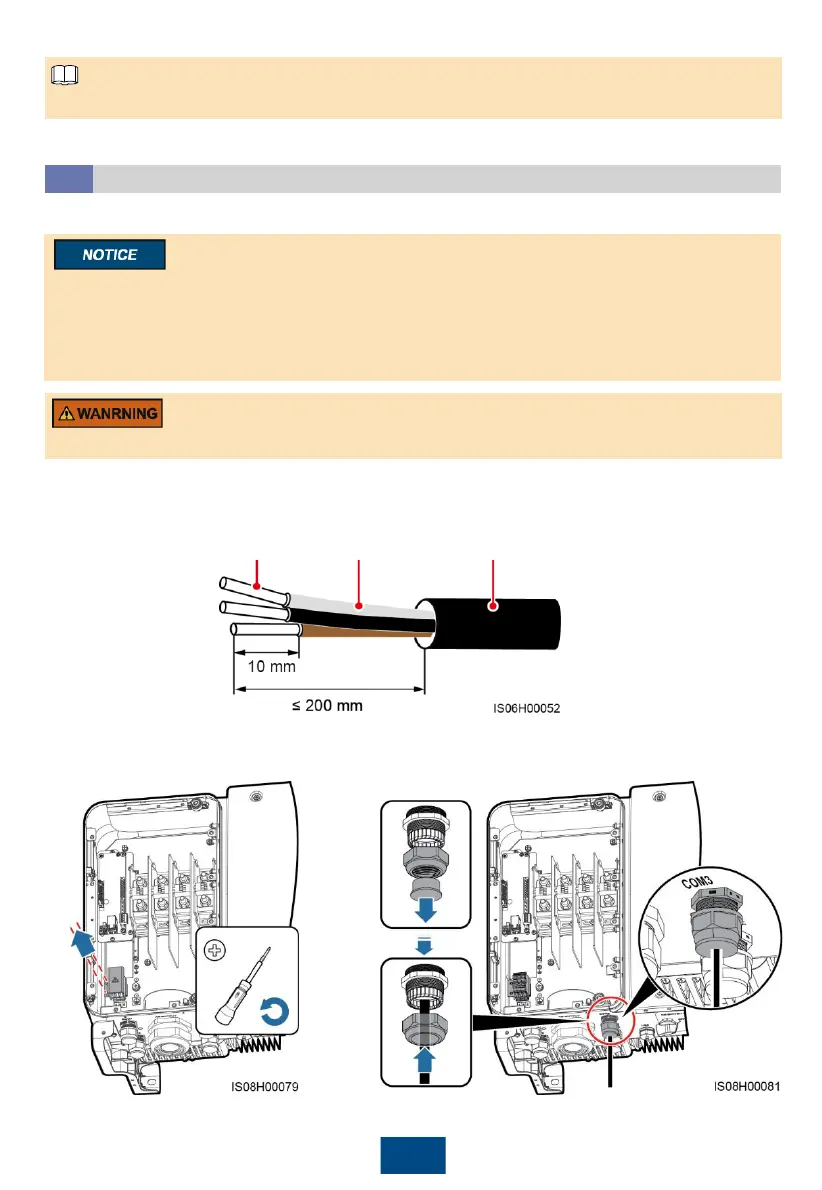

(Optional) Installing the Solar Tracker Power Cable
4.7
1. A switch-disconnector-fuse or fuse-switch-disconnector with a voltage of no less than 500 V,
current of 16 A, and protection type of gM needs to be installed between the SUN2000 and the
tracker controller for protection.
2. The cable between the wiring terminal on the power cable and the switch-disconnector-fuse or
fuse-switch-disconnector should be less than or equal to 2.5 meters.
Do not place flammable materials around the cable.
1. Remove an appropriate length of the jacket and insulation layer from the solar tracker power
cable using a wire stripper. (Ensure that the jacket is in the maintenance compartment.)
JacketInsulation layerCore wire
Tie the communication cables with the cables on internal side of the maintenance compartment.
2. Remove the shielding cover from wiring
terminals.
3. Route the cable through the cable gland.
The solar tracker power cable can be installed on the SUN2000-65KTL-M0 only.
