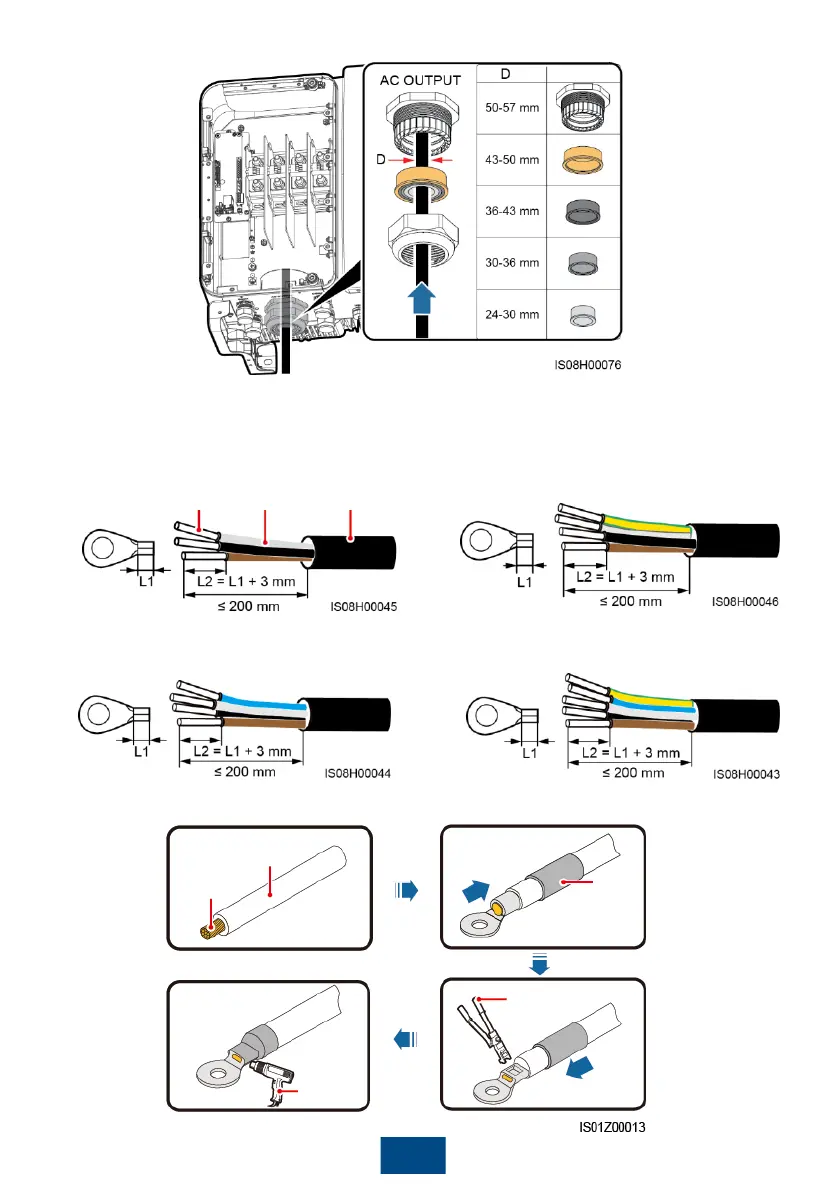

3. Remove an appropriate length of the jacket and insulation layer from the AC output power
cable using a wire stripper. (Ensure that the jacket is in the maintenance compartment.)
4. Crimp an OT terminal.
Jacket
Insulation
layer
a. Three-core cable (excluding the ground
cable and neutral wire)
c. Four-core cable (excluding the ground
cable but including the neutral wire)
b. Four-core cable (including the ground cable
but excluding the neutral wire)
d. Five-core cable (including the ground cable
and neutral wire)
Core wire
Insulation layer
Heat
gun
Hydraulic pliers
Heat shrink
tubing
Core
wire
