Huawei SUN2000-50KTL-ZHM3 Quick Start Guide

2
2
Installation Requirements

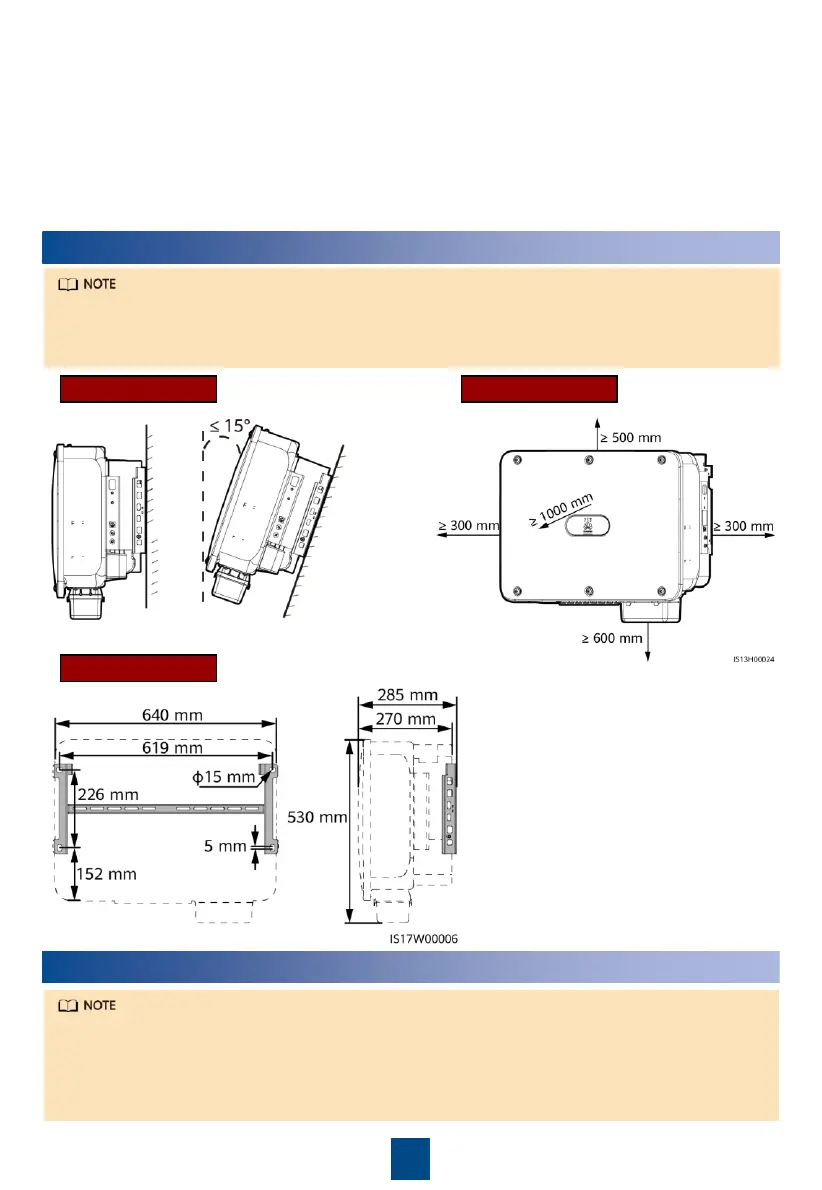

Dimensions
Angle Space
If inverters are installed in a place with abundant vegetation, in addition to routine weeding,
harden the ground underneath the inverters using cement or gravel (recommended area: 3 m x
2.5 m).
(1) LED indicators
(2) Host panel
(3) Screws for fixing the awning
(4) Communications port (COM)
(5) Hole for the DC switch locking screw
(6) DC switch (DC SWITCH)
(7) Smart Dongle port (4G/WLAN
-FE)
(8)
DC input terminals (PV1–PV8)
(9
) Ventilation valves
(10) AC output port
(11) Ground point
(12) Fan
3
Installing a Solar Inverter
•
M12x40 bolt assemblies are supplied with the solar inverter. If the bolt length does not meet
the installation requirements, prepare M12 bolt assemblies by yourself and use them
together with the supplied M12 nuts.
•
This quick guide describes how to install a solar inverter on a support. For details about
wall-mounted installation, see the user manual.

Huawei SUN2000-50KTL-ZHM3 Specifications

General

Brand	Huawei
Model	SUN2000-50KTL-ZHM3
Category	Inverter
Language	English
