Huawei SUN2000-50KTL-ZHM3 Quick Start Guide

5
No.
Cable
Type
Specifications
1
PE cable
Single
-core outdoor copper-
core cable
Conductor cross
-sectional area ≥ 16 mm
2
2
AC output power
cable
Outdoor copper
-
core/aluminum
-core cable
•
Conductor cross-sectional area: 25–50
mm
2
outdoor copper-core cable or 35
–
50 mm
2
outdoor aluminum-core cable
a
•
Cable outer diameter: 16–38 mm
3
DC input power
cable
Common outdoor PV cable in
the industry (recommended
model: PV1
-F)
•
Conductor cross-sectional area: 4–6
mm
2
•
Cable outer diameter: 5.5–9 mm
4
(Optional) RS485
communications
cable
Two
-core outdoor shielded
twisted pair (recommended
model: DJYP2VP2
-2x2x0.75)
•
Conductor cross-sectional area: 0.2–1
mm
2
•
Cable outer diameter: 4–11 mm
5
AC circuit
breaker
Recommended: three
-phase
AC circuit breaker
Rated voltage ≥
500 V AC
Rated
current: 125 A
Note a: Five
-core cables with a cross-sectional area of 5 x 35 mm
2
or 5 x 50 mm
2
are not
supported.

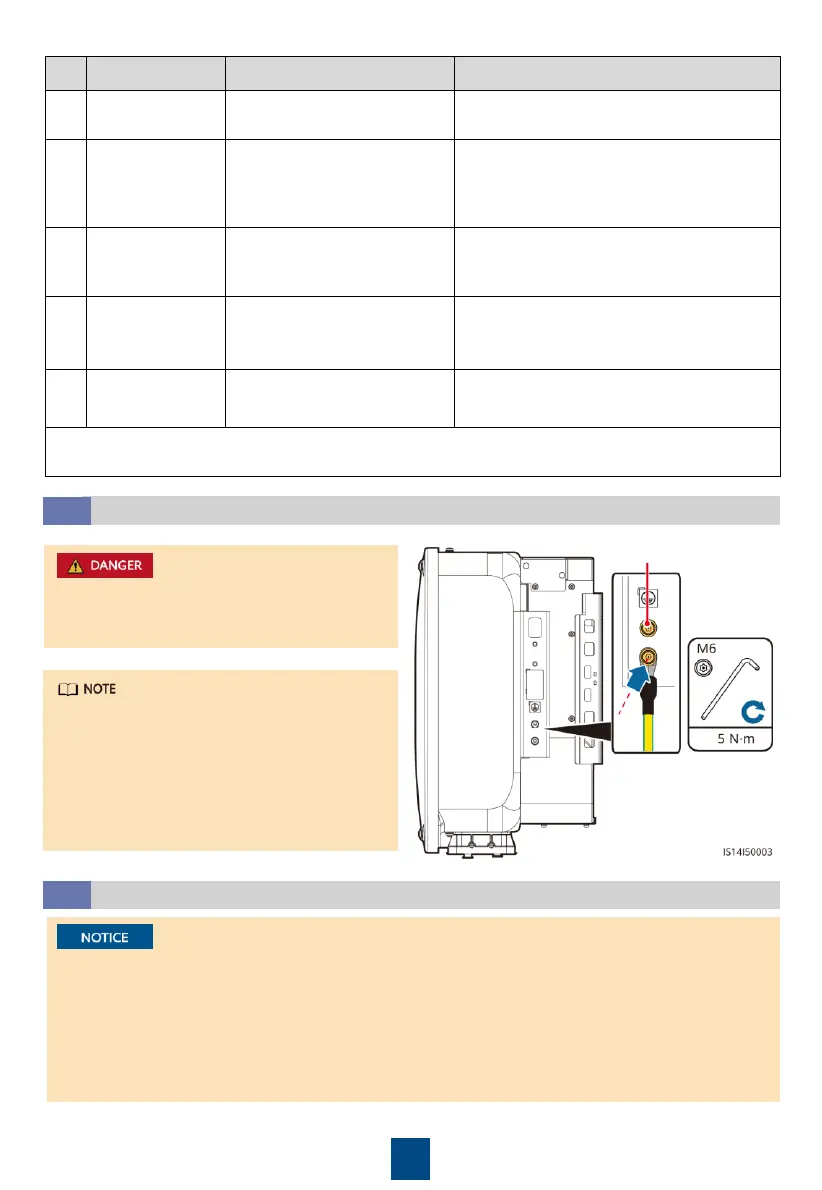

Connecting a PE Cable
4.2
•
The PE point at the AC output port is used
only as a PE equipotential point, not a
substitute for the PE point on the
enclosure.
•
It is recommended that silica gel or paint
be applied around the ground terminal
after the PE cable is connected.
Do not connect the neutral wire to the
enclosure as a PE cable. Otherwise, electric
shocks may occur.
Reserved PE point
Installing the AC Output Power Cable
4.3
•
Use a socket wrench and extension rod to connect the AC power cable. The extension rod
must be longer than 100 mm.
•
Sufficient slack should be provided in the PE cable to ensure that the last cable bearing the
force is the PE cable when the AC output power cable bears pulling force due to force
majeure.
•
Do not install third-party devices in the AC connection box.
•
You need to prepare M8 OT terminals by yourself.
