Connection Through the Wiring Terminal

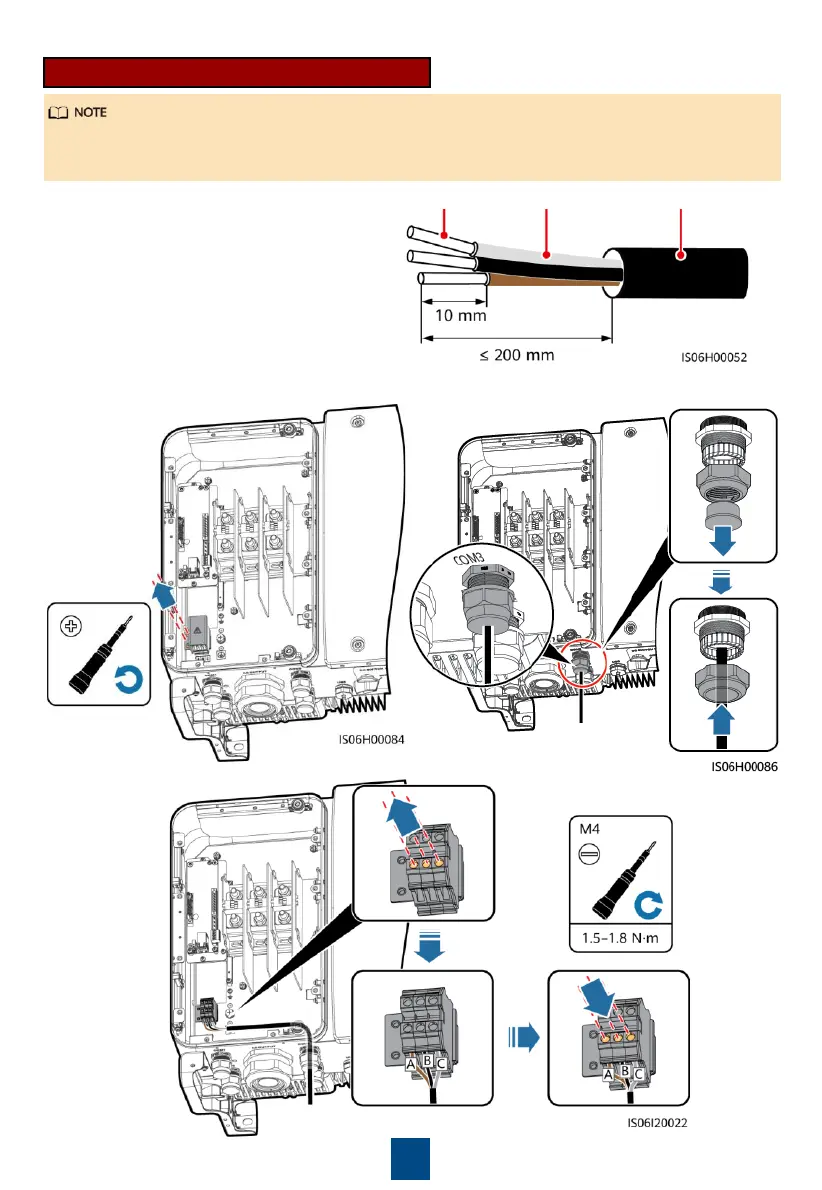

1. Remove an appropriate length of the
jacket and insulation layer from the
solar tracker power cable using a wire
stripper. (Ensure that the jacket is in the
maintenance compartment.)
JacketInsulation layerCore wire
Only certain models support the installation of the solar tracker power cable through the wiring
terminal.
2. Remove the shielding cover from wiring
terminals.
3. Route the cable through the cable gland.
4. Connect the solar tracker power cable.
