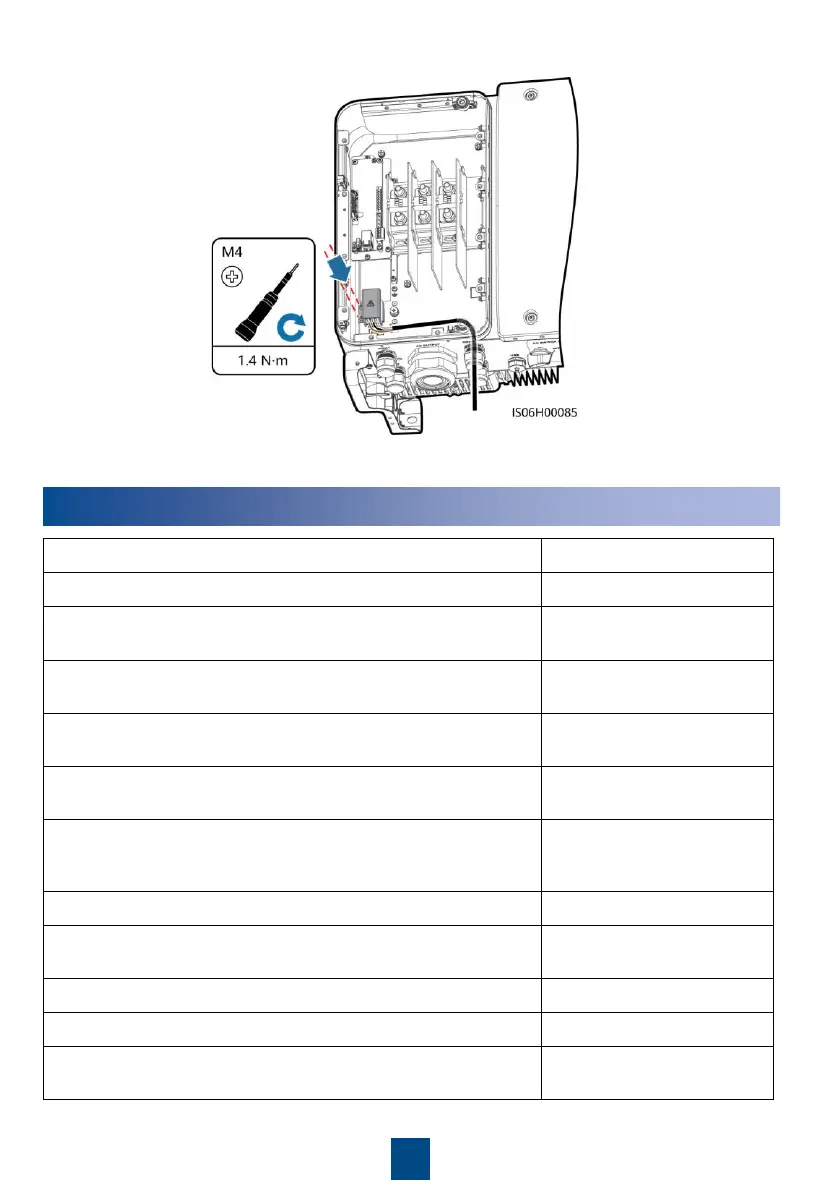

5. Install the shielding cover on wiring terminals.
6. Tighten the thread-lock sealing nut and seal the cable gland.
5
Verifying the Installation
1.
The SUN2000 is installed correctly and securely.
Yes
□
No
□
N/A
□
2.
The DC switches and downstream AC switch are OFF.
Yes
□
No
□
N/A
□
3. All ground cables are connected securely, without open circuits
or short circuits.
Yes
□
No
□
N/A
□
4.
AC output power cables are connected correctly and securely,
without open circuits or short circuits.
Yes
□
No
□
N/A
□
5.
DC input power cables are connected correctly and securely,
without open circuits or short circuits.
Yes
□
No
□
N/A
□
6.
The RS485 communications cable is connected correctly and
securely.
Yes
□
No
□
N/A
□
7.
Check that all used cable glands at the bottom of the
enclosure are sealed, and that the thread-lock sealing nut is
tightened.
Yes
□
No
□
N/A
□
8.
The AC terminal cover is reinstalled.
Yes
□
No
□
N/A
□
9.
The maintenance compartment door is closed and the door
screws are tightened.
Yes
□
No
□
N/A
□
10.
Unused DC input terminals are sealed.
Yes
□
No
□
N/A
□
11.
Unused USB ports are plugged with watertight caps.
Yes
□
No
□
N/A
□
12.
Unused cable glands are plugged and the thread-lock sealing
nuts are tightened.
Yes
□
No
□
N/A
□
