Huawei SUN2000-M1 User Manual

12
• In the SmartLogger networking scenario, the Smart Dongle cannot be connected.
• A maximum of 80 devices can connect to a single SmartLogger, such as inverters, Smart
Power sensor, and EMI. You are advised to connect fewer than 30 devices to each RS485
route.
• The Smart Power Sensor is necessary for export limitation. Select the Smart Power Sensor
according to the actual project.
• To ensure the system response speed, you can connect the Smart Power Sensor to a separate
COM port.

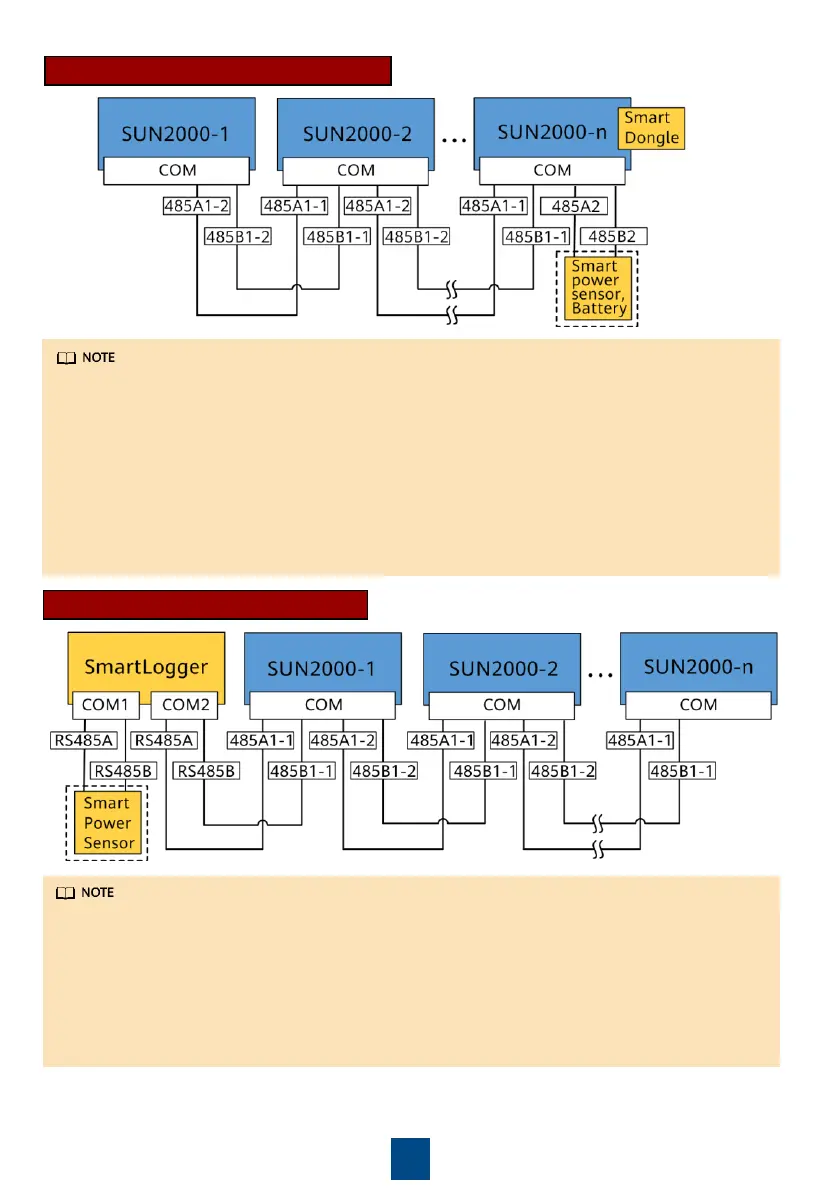

Smart Dongle Networking Scenario
• In the Smart Dongle networking scenario, the SmartLogger cannot be connected.
• The Smart Power Sensor is necessary for export limitation. Select the Smart Power Sensor
according to the actual project.
• A maximum of 10 devices can be connected to the WLAN-FE and 4G Smart Dongles. The
Smart Power Sensors connected to the RS485A2 and RS485B2 ports are not included.
• If a battery is connected, a maximum of three inverters can be cascaded. Any one of the
inverters can be connected to the battery. (The inverter connected to the Smart Dongle must
be connected to the battery.)
• If the SUN2000-(3KTL–10KTL)-M1 and SUN2000-(2KTL–6KTL)-L1 are cascaded, a maximum
of three inverters can be cascaded.
SmartLogger Networking Scenario

Huawei SUN2000-M1 Specifications

General

Model	SUN2000-M1
Manufacturer	Huawei
Max Efficiency	98.6%
Max DC Voltage	1100 V
Number of MPPTs	2
Rated AC Grid Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THD)	<3%
DC Connection	MC4
Cooling	Natural Convection
Protection Degree	IP65
Weight	17 kg
MPPT Efficiency	99.9%
Cooling Method	Natural Convection
Protection Level	IP65
Max Input Current	11A
Max AC Power	5.5 kW
Rated AC Voltage	230V
AC Voltage Range	180 V - 276 V
Operating Temperature Range	-25°C to 60°C
Dimensions	525 x 470 x 146 mm
Maximum Output Power	5.5 kW
