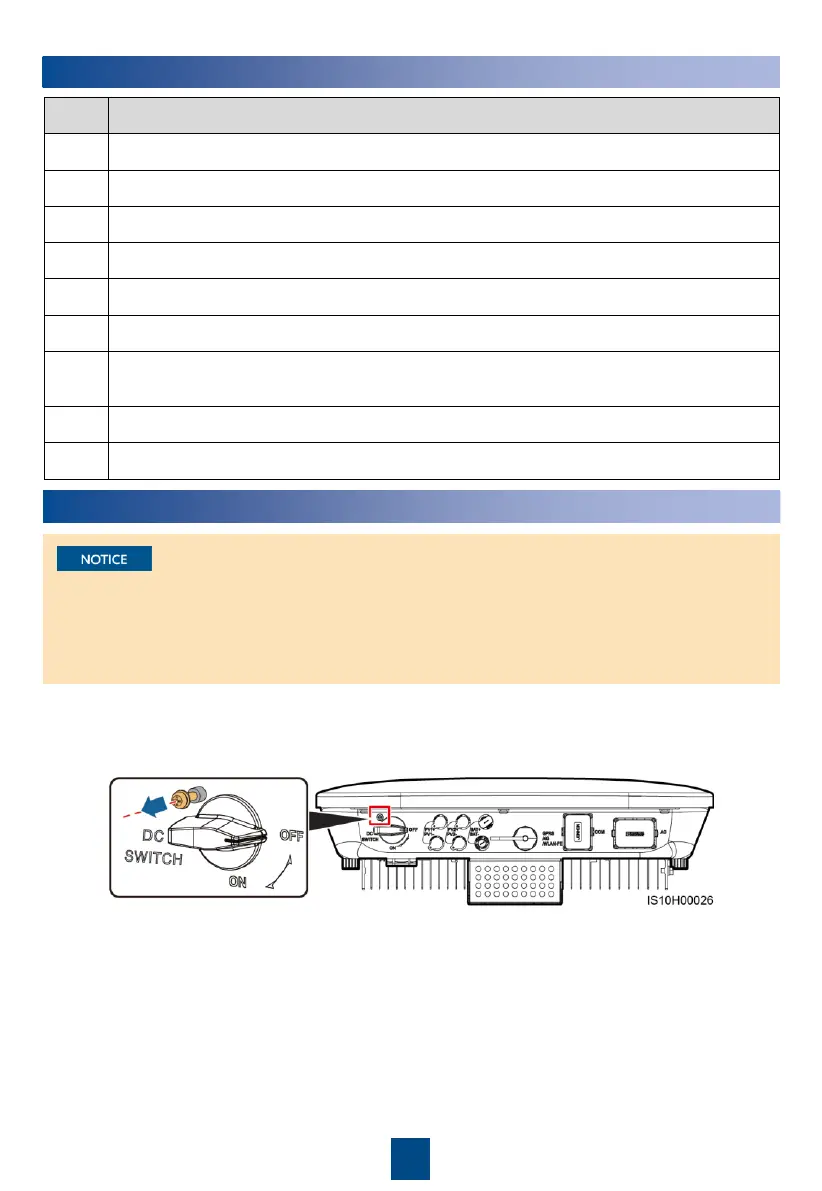

Huawei SUN2000-M1 User Manual

18
No.
Acceptance Criteria
1
The inverter is installed correctly and securely.
2
Cables are routed properly as required by the customer.
3
The Smart Dongle is installed correctly and securely.
4
Cable ties are evenly distributed and no burr exists.
5
The PE cable is connected correctly, securely, and reliably.
6
The DC switch and all the switches connected to the inverter are set to the OFF position.
7
The AC output power cable, DC input power cable, battery cable, and signal cable are
connected correctly and securely.
8
Unused terminals and ports are locked by watertight caps.
9
The installation space is proper, and the installation environment is clean and tidy.
4
Verifying
Installation
5
Powering On the System
•
Before turning on the AC switch between the solar inverter and the power grid, check that the
AC voltage is within the specified range using a multimeter set to the AC position.
•
If the solar inverter is connected to an LG battery, turn on the DC switch within 1 minute after
turning on the AC switch. If you turn on the DC switch after more than 1 minute, the solar
inverter will shut down and start again.
1. If a battery is connected, turn on the battery switch.
2. Turn on the AC switch between the solar inverter and the power grid.
3. (Optional) Remove the screw for locking the DC switch.
4. Turn on the DC switch (if any) between the PV string and the solar inverter.
5. Turn on the DC switch at the bottom of the solar inverter.

Huawei SUN2000-M1 Specifications

General

Model	SUN2000-M1
Manufacturer	Huawei
Max Efficiency	98.6%
Max DC Voltage	1100 V
Number of MPPTs	2
Rated AC Grid Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THD)	<3%
DC Connection	MC4
Cooling	Natural Convection
Protection Degree	IP65
Weight	17 kg
MPPT Efficiency	99.9%
Cooling Method	Natural Convection
Protection Level	IP65
Max Input Current	11A
Max AC Power	5.5 kW
Rated AC Voltage	230V
AC Voltage Range	180 V - 276 V
Operating Temperature Range	-25°C to 60°C
Dimensions	525 x 470 x 146 mm
Maximum Output Power	5.5 kW
