16

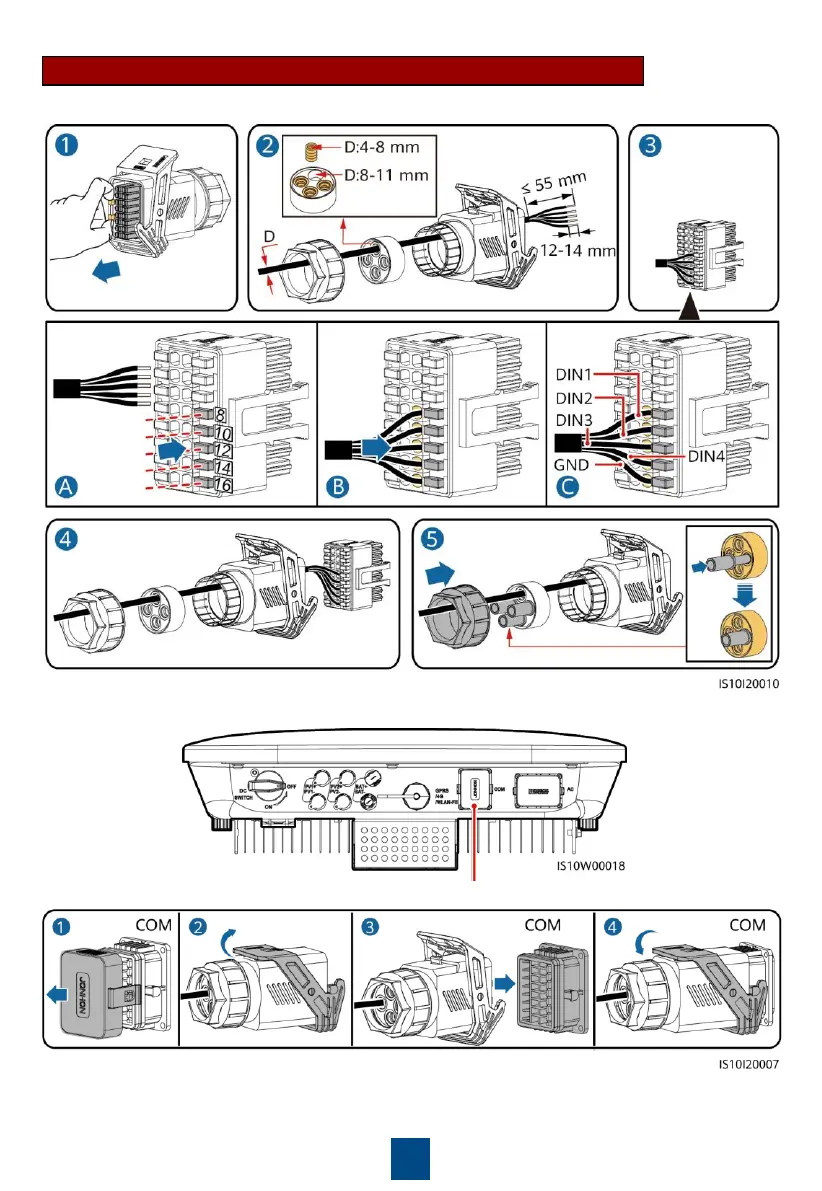

1. Connect the signal cable to the signal cable connector.
(Optional) Installing the Grid Scheduling Dry Contact Signal Cable
2. Connect the signal cable connector to the Communication port.
Communications port (COM)

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Huawei SUN2000-M1 and is the answer not in the manual?

Huawei SUN2000-M1 Specifications

General IconGeneral
ModelSUN2000-M1
ManufacturerHuawei
Max Efficiency98.6%
Max DC Voltage1100 V
Number of MPPTs2
Rated AC Grid Frequency50 Hz / 60 Hz
Adjustable Power Factor Range0.8 leading to 0.8 lagging
Total Harmonic Distortion (THD)<3%
DC ConnectionMC4
CoolingNatural Convection
Protection DegreeIP65
Weight17 kg
MPPT Efficiency99.9%
Cooling MethodNatural Convection
Protection LevelIP65
Max Input Current11A
Max AC Power5.5 kW
Rated AC Voltage230V
AC Voltage Range180 V - 276 V
Operating Temperature Range-25°C to 60°C
Dimensions525 x 470 x 146 mm
Maximum Output Power5.5 kW
