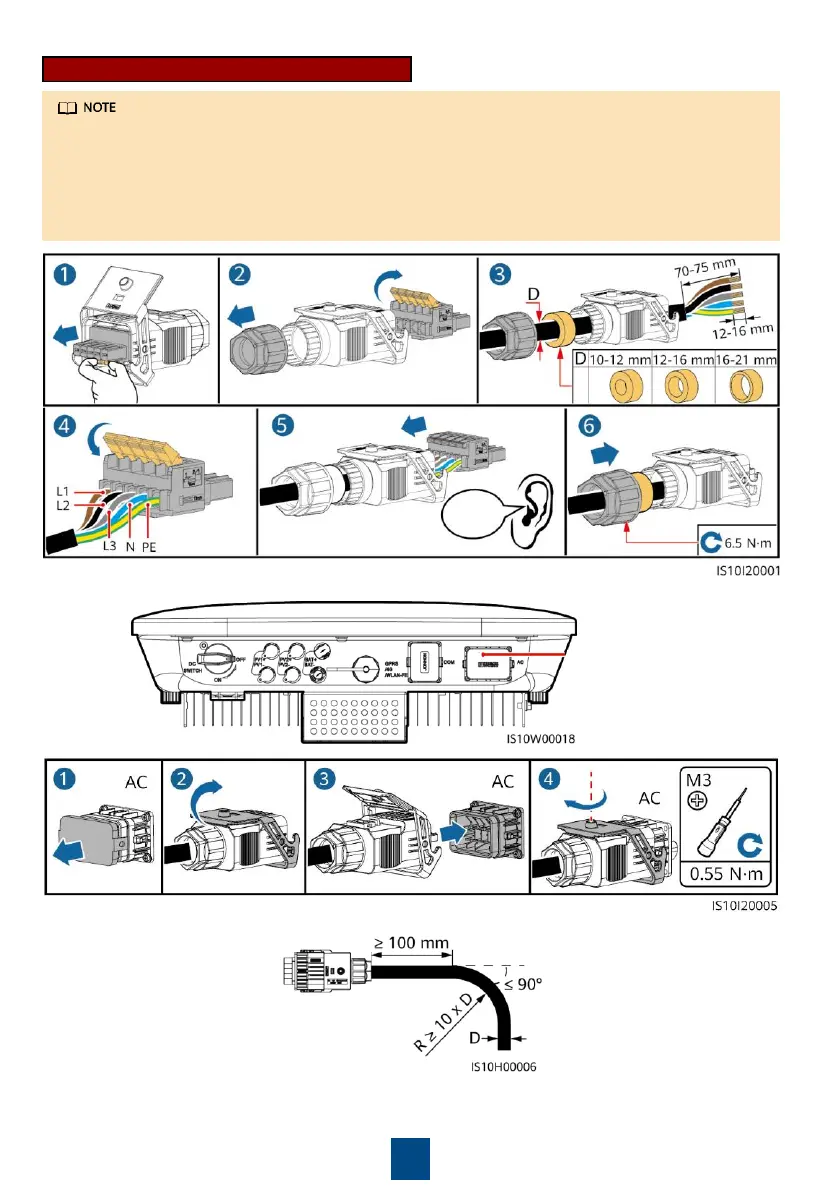

Huawei SUN2000-M1 User Manual

6
Five-Core Cable (L1, L2, L3, N, and PE)
Click
2. Connect the AC connector to the AC output port.
AC output port (AC)
3. Check the route of the AC output power cable.
• This section describes how to connect a five-core AC output power cable to an AC connector.
• A three-core AC output power cable can be connected similarly. The three-core cable (L1, L2,
and L3) is not connected to the neutral wire or PE wire.
• A four-core or five-core AC output power cable can be connected similarly. The four-core
cable (L1, L2, L3, and PE) is not connected to the N wire, and the four-core cable (L1, L2, L3,
and N) is not connected to the PE wire.

Huawei SUN2000-M1 Specifications

General

Model	SUN2000-M1
Manufacturer	Huawei
Max Efficiency	98.6%
Max DC Voltage	1100 V
Number of MPPTs	2
Rated AC Grid Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THD)	<3%
DC Connection	MC4
Cooling	Natural Convection
Protection Degree	IP65
Weight	17 kg
MPPT Efficiency	99.9%
Cooling Method	Natural Convection
Protection Level	IP65
Max Input Current	11A
Max AC Power	5.5 kW
Rated AC Voltage	230V
AC Voltage Range	180 V - 276 V
Operating Temperature Range	-25°C to 60°C
Dimensions	525 x 470 x 146 mm
Maximum Output Power	5.5 kW
