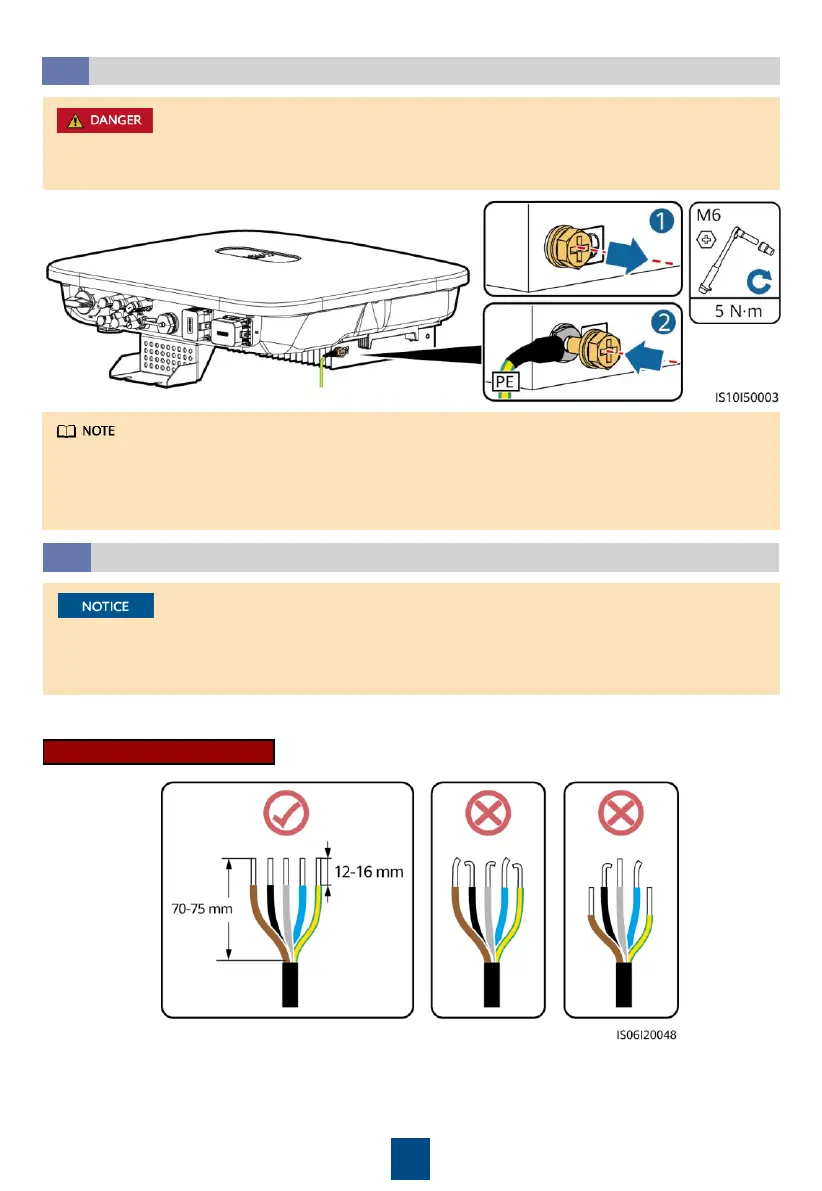

Installing the PE Cable
3.2
Do not connect the neutral wire to the enclosure as a PE cable. Otherwise, electric shocks may
occur.
The PE point at the AC output port is used only as a PE equipotential point, and cannot
substitute for the PE point on the enclosure.
It is recommended that silica gel or paint be used around the ground terminal after the PE
cable is connected.
Installing the AC Output Power Cable
3.3
Ensure that the protection layer of the AC output power cable is inside the connector, the core
wires are totally inserted into the cable hole, and the cable is connected securely. Failing to do
so may cause device malfunction or damage.
1. Connect the AC output power cable to the AC connector.
