Installing the PE Cable
3.2

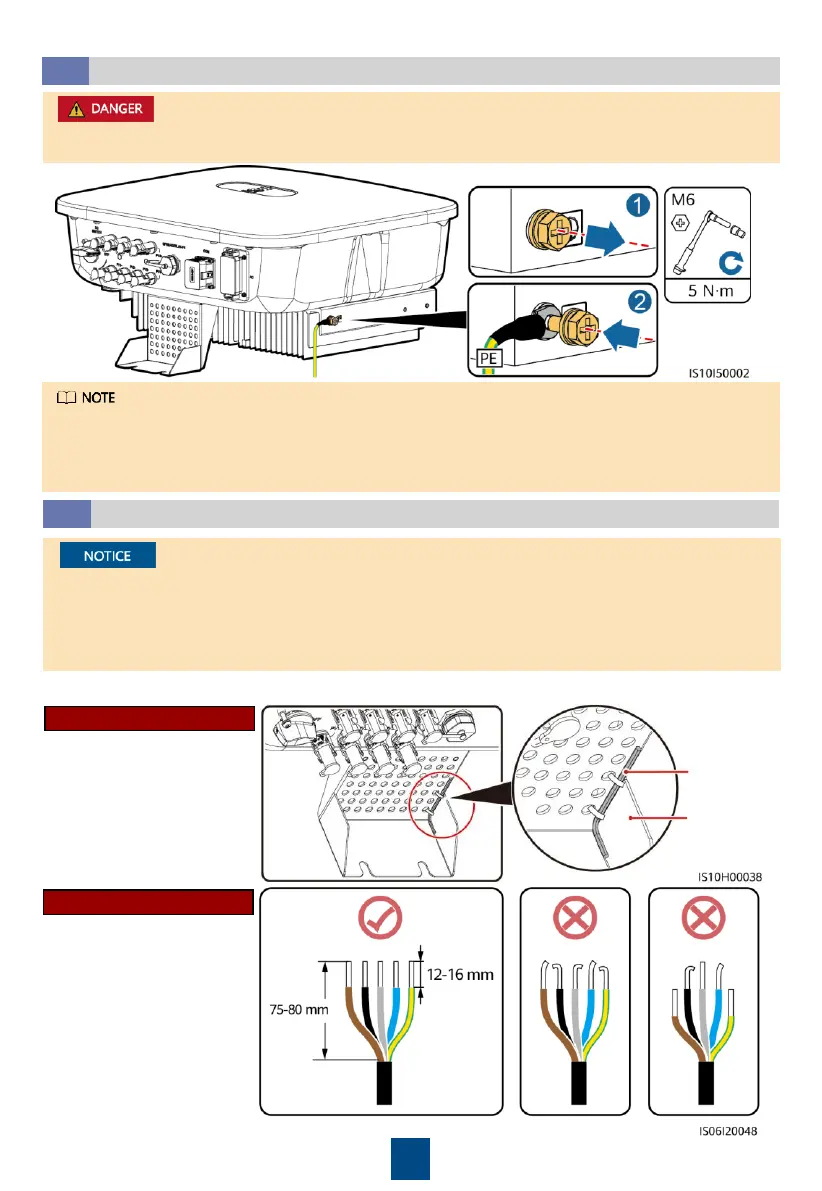

Do not connect the neutral wire to the enclosure as a PE cable. Otherwise, electric shocks may
occur.
•
The PE point at the AC output port is used only as a PE equipotential point, and cannot
substitute for the PE point on the enclosure.
•
It is recommended that silica gel or paint be used around the ground terminal after the PE
cable is connected.
Installing the AC Output Power Cable
3.3
•
Ensure that the protection layer of the AC output power cable is inside the connector, the
core wires are totally inserted into the cable hole, and the cable is connected securely. Failing
to do so may cause device malfunction or damage.
•
The hex key is delivered with the inverter and bound to the hanging kit at the bottom of the
inverter.
Hanging kit
Hex key
1. Connect the AC output power cable to the AC connector.
Stripping requirements
Hex key
To Next Page
