Huawei SUN2000-M2 User Manual

6

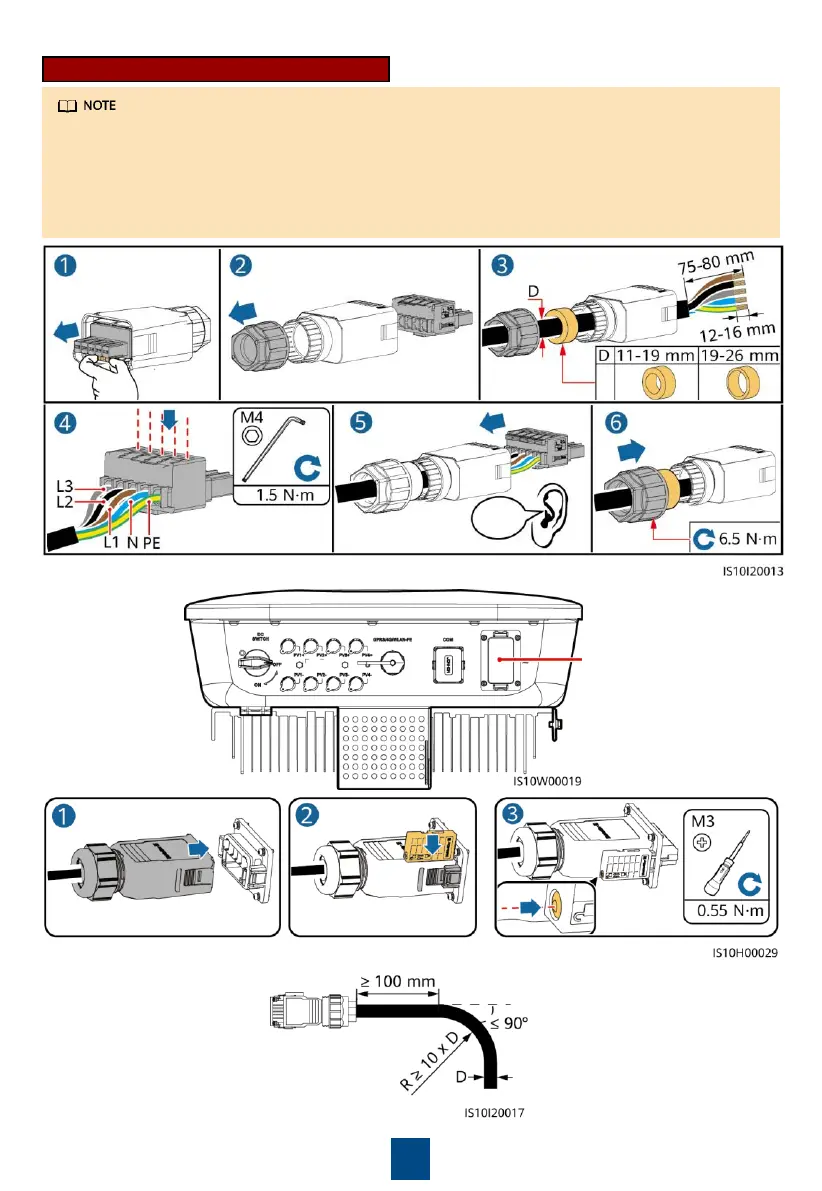

Five-Core Cable (L1, L2, L3, N, and PE)
Click
2. Connect the AC connector to the AC output port.
AC output port (AC)
3. Check the route of the AC output power cable.
• This section describes how to connect a five-core AC output power cable to an AC connector.
• A three-core AC output power cable can be connected similarly. The three-core cable (L1, L2,
and L3) is not connected to the neutral wire or PE wire.
• A four-core or five-core AC output power cable can be connected similarly. The four-core
cable (L1, L2, L3, and PE) is not connected to the N wire, and the four-core cable (L1, L2, L3,
and N) is not connected to the PE wire.

Huawei SUN2000-M2 Specifications

General

Max. Efficiency	98.6%
Protection Rating	IP65
Cooling	Natural convection
Operating Temperature Range	-25°C to 60°C
Rated AC Voltage	230V
European Efficiency	98.0%
