Huawei SUN2000 Series Quick Installation Guide

2
1. The antitheft lock is prepared by customers.
2. For details about wall-mounting the device, see the SUN2000 (8KTL-28KTL) User Manual.

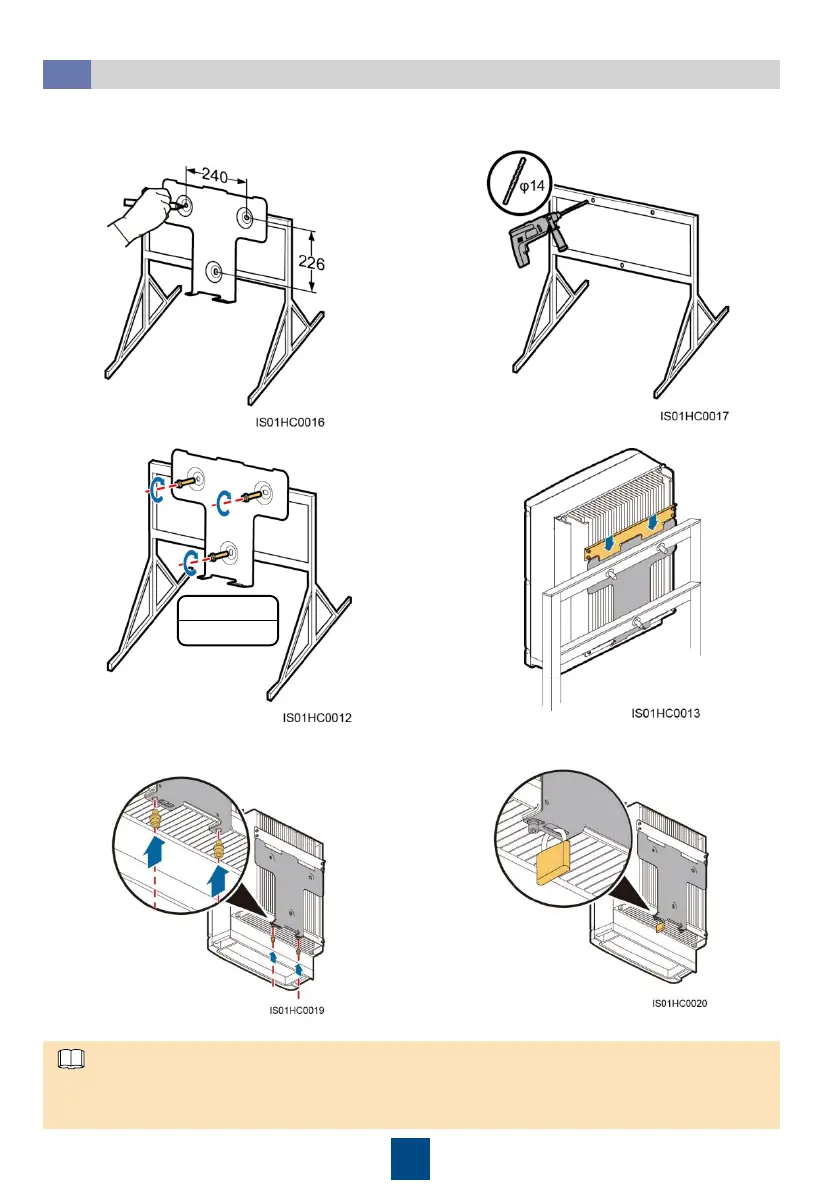

1. Determine the hole positions on the support
based on rear panel dimensions.
2. Drill holes.
3. Secure the rear panel.
5. Tighten hexagon bolts.
6. (Optional) Install an anti-theft lock.
M10 (3 PCS)
30 N·m
Unit: mm
NOTE
Installing an Inverter (support-mounting is used as an example)
1.2
4. Mount the inverter on the rear panel.

Huawei SUN2000 Series Specifications

General

Max Efficiency	98.6%
MPPT Efficiency	99.9%
Protection Rating	IP65
Max. DC Voltage	1100 V
Rated AC Frequency	50 Hz / 60 Hz
Rated Power	3kW - 10kW
Operating Temperature Range	-25 °C ~ +60 °C
Communication	RS485
Rated AC Power	3kW - 10kW
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THD)	≤ 3%
Protection	DC reverse polarity
Cooling	Natural convection
DC Connection	MC4
