Huawei SUN2000 Series Quick Guide

8
(Optional) Installing the Smart Dongle
3.5

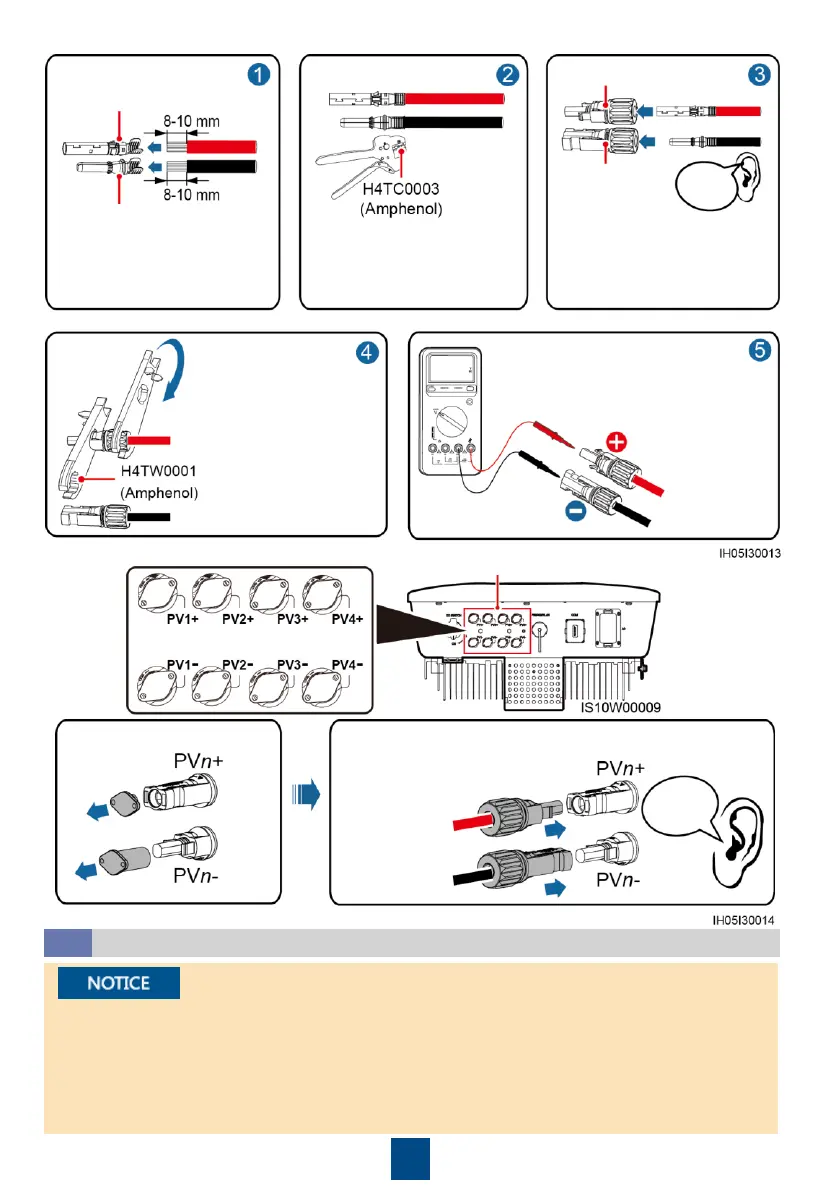

Pull back the DC input power cable to
ensure that it is in position.
DC input terminals
Click
• If you prepared a Smart Dongle without a SIM card, you need to prepare a standard SIM card (size:
25 mm x 15 mm) with the capacity greater than or equal to 64 KB.
• When installing the SIM card, determine its installation direction based on the silk screen and arrow
on the card slot.
• Press the SIM card in place to lock it, indicating that the SIM card is correctly installed.
• When removing the SIM card, push it inwards to eject it.
n indicates 1, 2, 3, or 4.
Positive connector
Negative
connector
Positive metal
terminal
Negative metal terminal
Ensure that the cable
cannot be pulled out
after being crimped.
Ensure that the locking nut
is secured.
Ensure that the cables are
correctly connected. (The DC
voltage of a multimeter should
not be less than 1100 V).
Click

Huawei SUN2000 Series Specifications

General

Max Efficiency	98.6%
MPPT Efficiency	99.9%
Protection Rating	IP65
Max. DC Voltage	1100 V
Rated AC Frequency	50 Hz / 60 Hz
Rated Power	3kW - 10kW
Operating Temperature Range	-25 °C ~ +60 °C
Communication	RS485
Rated AC Power	3kW - 10kW
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THD)	≤ 3%
Protection	DC reverse polarity
Cooling	Natural convection
DC Connection	MC4
