TP48200A-DT19C1, TP48200A-DT19C2,
TP48200A-HT19C1 and TP48200A-HT19C2 Telecom
Power
User Manual
Copyright © Huawei Technologies Co., Ltd.
Step 3 Removing the internal circulation fan
1. Record the position where cables connect to the internal circulation fan, and then
disconnect the cables.
2. Remove the cover from the internal circulation fan, as shown in Figure 4-11.

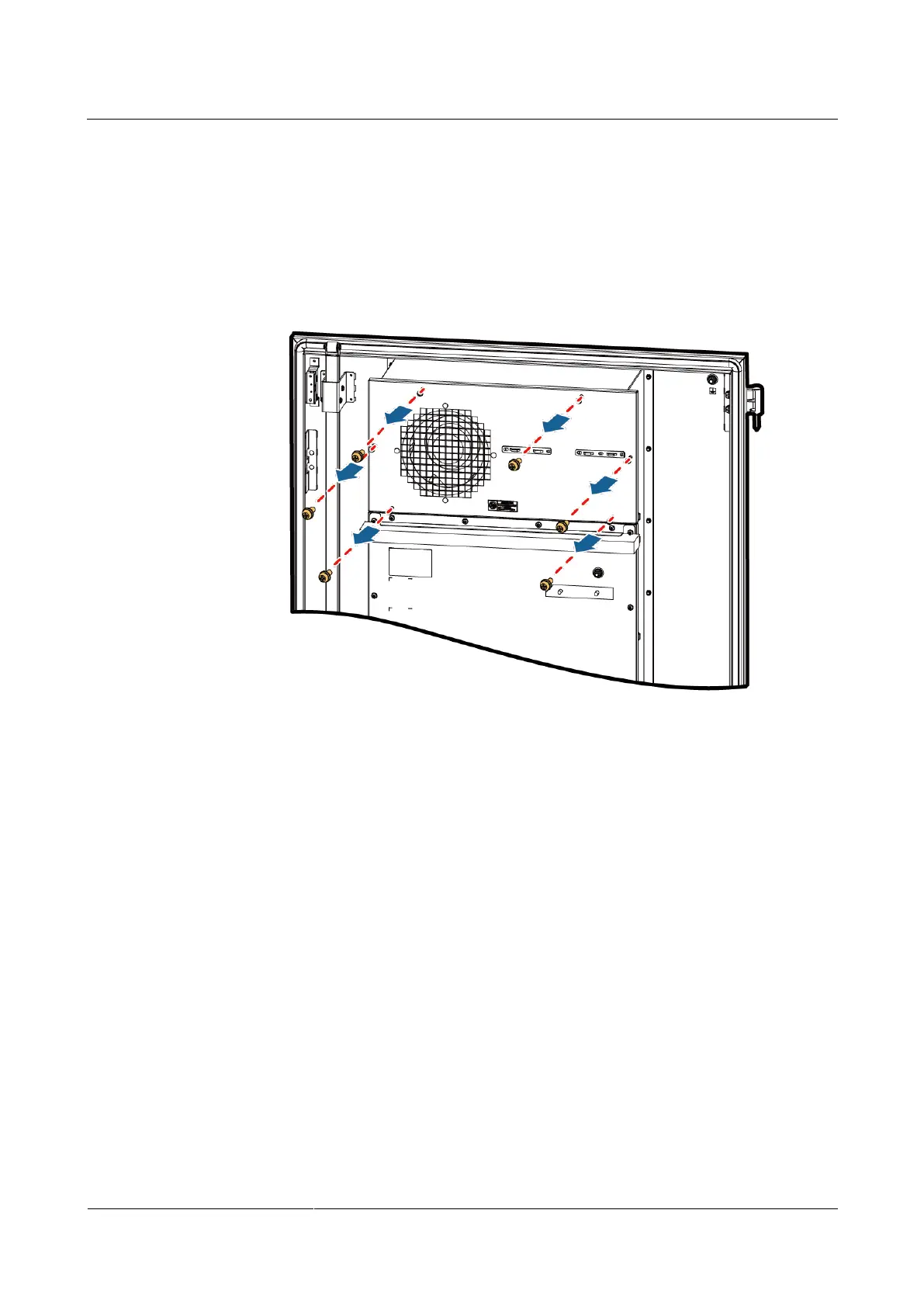

Figure 4-11 Removing the cover from the internal circulation fan
3. Remove the fan fixing plate from the internal circulation fan, as shown in Figure 4-12.
