TP482000B V300R002C03 Telecom Power
(TP482000B-N20B1, TP482000B-N20B2,
TP481200B-N20B1, and TP481200B-N20B2)
User Manual
Copyright © Huawei Technologies Co., Ltd.

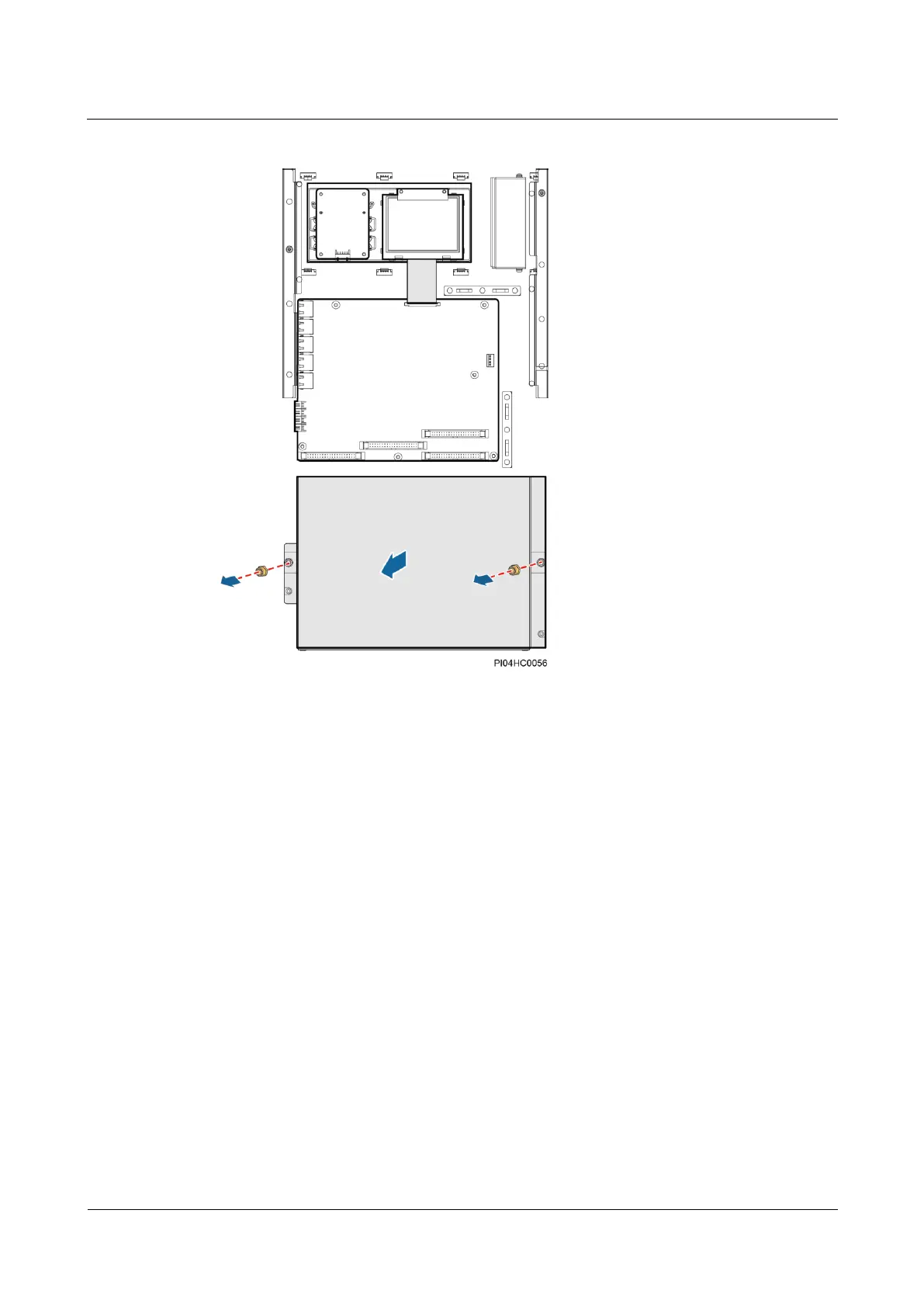

Figure 7-21 Removing the cover from a signal transfer board
Step 6 Remove the signal transfer board, as shown in Figure 7-22.
1. Record the positions of cables connected to the signal transfer board, and disconnect the
cables.
2. Unscrew and remove the signal transfer board.
