2. Connect the LCD flat cable to the signal sampling board.
3. Reconnect the input power cable to the J98 port on the signal sampling board.

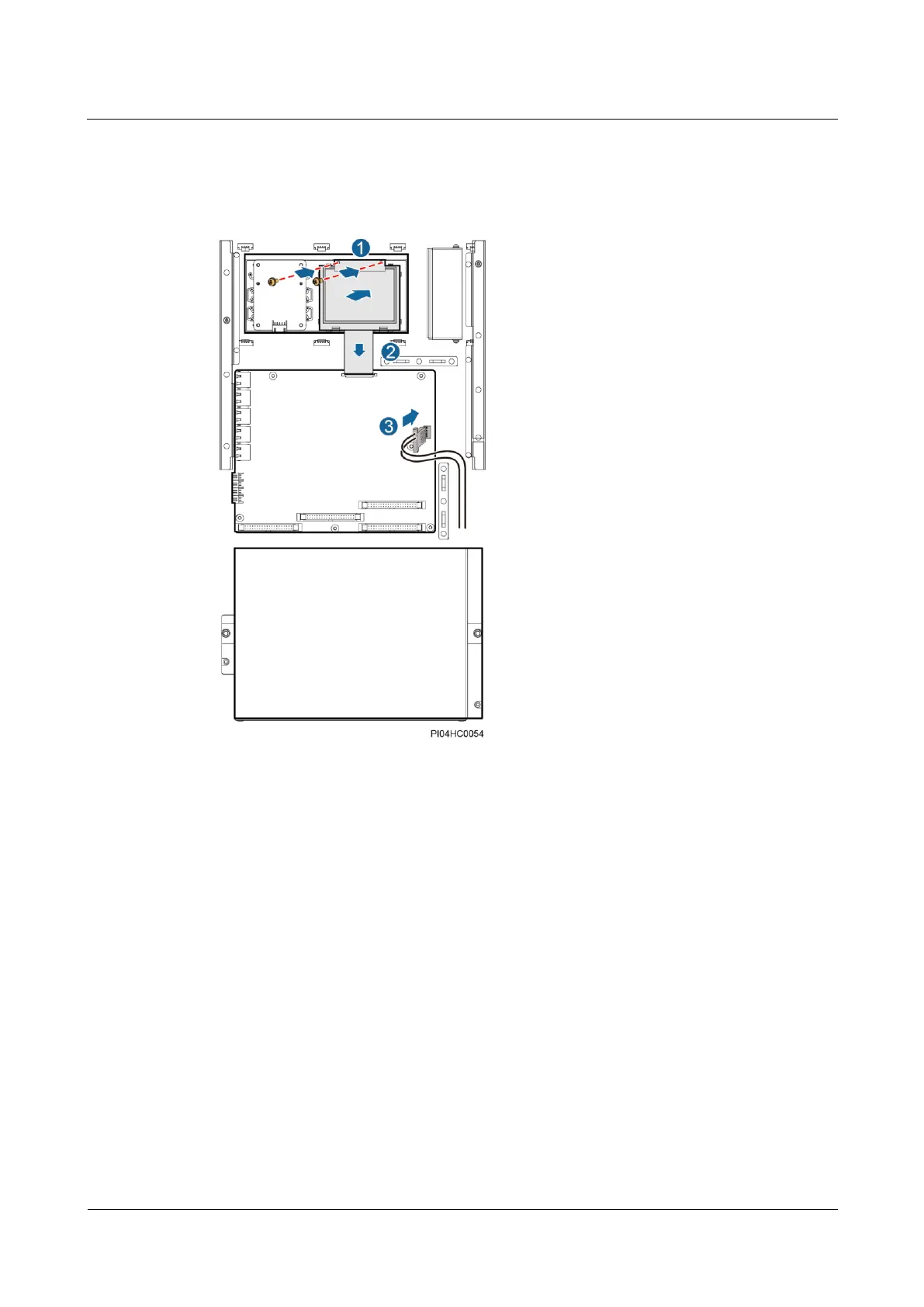

Figure 7-18 Installing an LCD
Step 6 Place the cover on the power distribution monitoring unit, and tighten the screws.
Step 7 Reconnect the cables to the RJ45 ports on the power distribution monitoring unit based on the
recorded information.
Step 8 Disconnect the ground cable for the ESD wrist strap, and take off the ESD wrist strap and
ESD gloves.
----End
7.3.3 Replacing the Button Board
Prerequisites

You have obtained an ESD wrist strap, a pair of ESD gloves, an ESD box or bag, a tool
kit, and the cabinet door key.

The new button board is intact.
