UPS2000-A-(6 kVA-10 kVA)
User Manual
Copyright © Huawei Technologies Co., Ltd.
UPS2000-A-6 kVA/10 kVA Dimensions

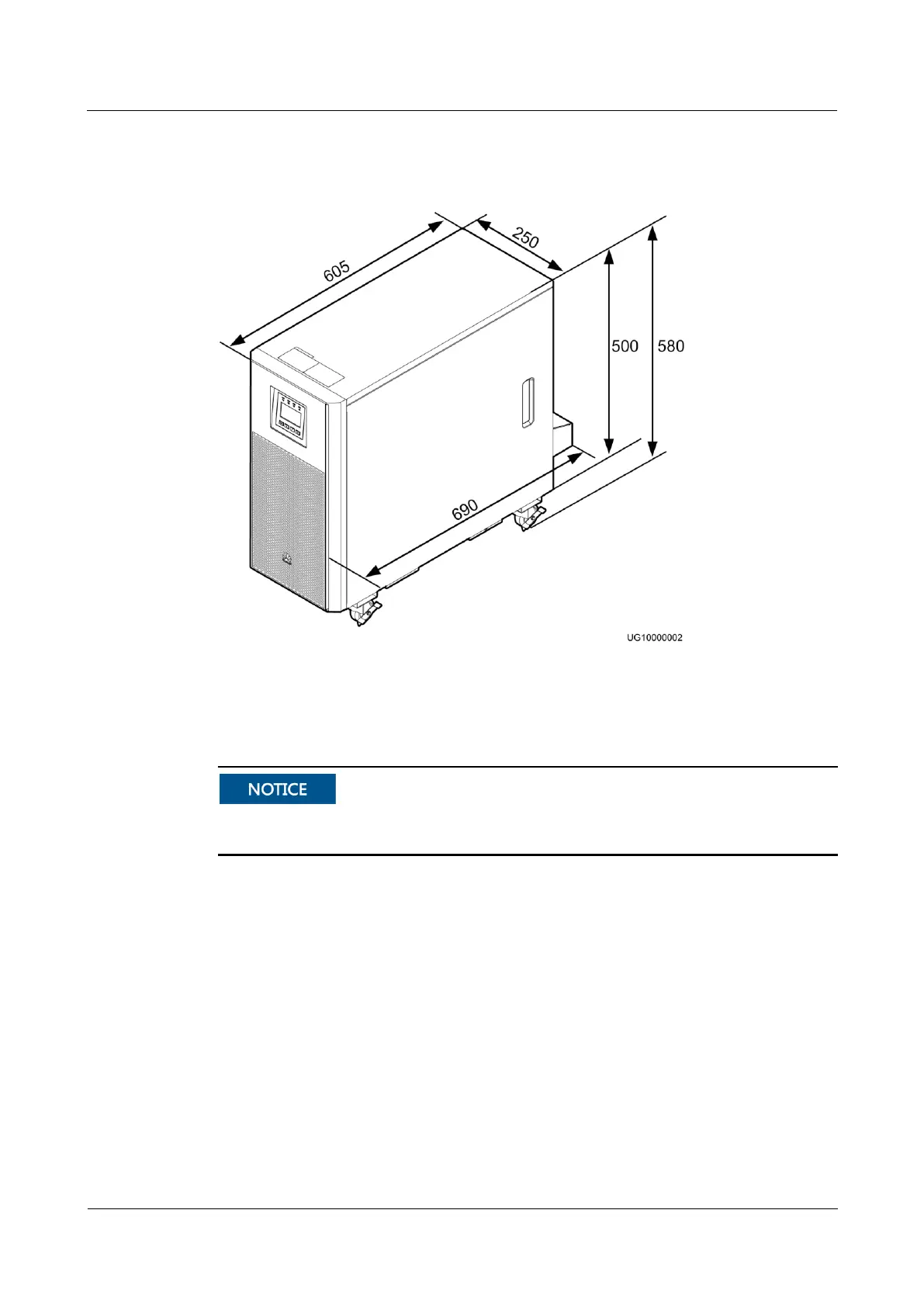

Figure 3-1 UPS2000-A-6 kVA/10 kVA installation dimensions (Unit: mm)
Clearances
The distance between UPS air vents and the wall or obstacle is greater than or equal to 500
mm.
Reserve a clearance of at least 500 mm respectively from the front and rear panels of the UPS
to the wall or adjacent equipment to facilitate ventilation and heat dissipation, as shown in
Figure 3-2.
