Huawei UPS5000-H Series Quick Guide

2

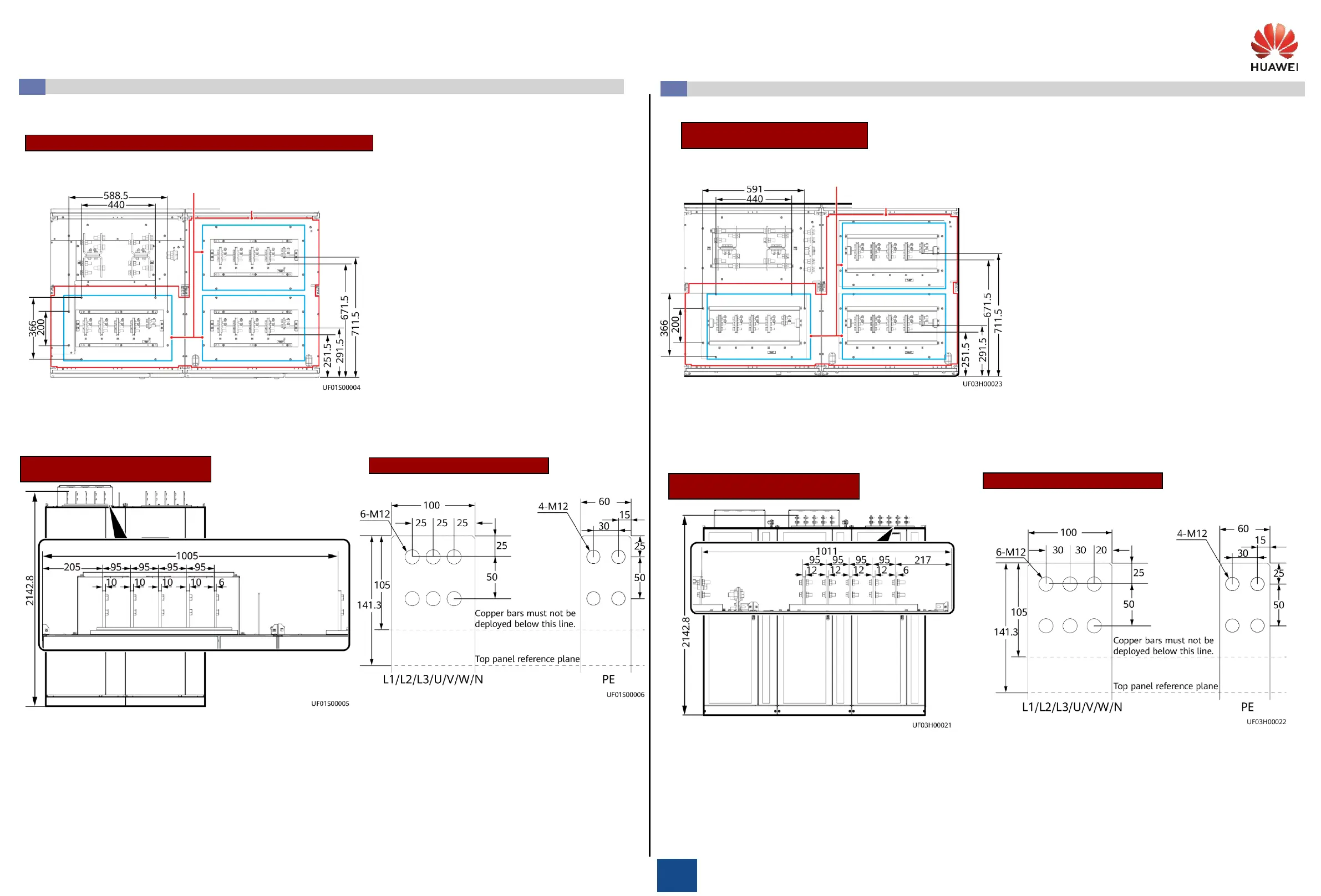

Top view of the Distance Between Copper Bars on the Top (unit: mm)
Copper Bar Location (1200 kVA)
Copper Bar Location (1600 kVA)
Front View of the Distance Between
Copper Bars on the Top (unit: mm)
Copper Bar Specifications (unit: mm)
Front View of the Distance Between
Copper Bars on the Top (unit: mm)
Copper Bar Specifications (unit: mm)
Top View of the Distance Between
Copper Bars on the Top (unit: mm)
The area marked by the line box
is reserved for the dense busway.
Recommended space for connector boxes (If one power source is
used, a connector box must be deployed for the copper bars that
are not installed in the busway. Copper bars must not be exposed.)
The area marked by the line box
is reserved for the dense busway.
Recommended space for connector boxes (If one power source is
used, a connector box must be deployed for the copper bars that
are not installed in the busway. Copper bars must not be exposed.)
UPS5000-H-(1200 kVA-1600 kVA) Quick Guide (100 kVA Power Modules, Three-Phase Three-Wire)
