Hubbell Versa-Tech I - Dimensions - Pole;Structure Mount

PSP8620311
Rev. E
7
VACUUM INTERRUPTER
2-HOLE NEMA
PAD (STANDARD)
TYPICAL
2-HOLE NEMA
PAD (STANDARD)
TYPICAL
NON-RECLOSE
LEVER
OPERATING LEVER
LOCKOUT INDICATOR
BEACON AND COUNTER
MOUNTING HOLES FOR
5/8" (15mm) BOLTS
11" (27.9cm) CENTER
TO CENTER NOMINAL.
17.1 12.4
2.0
11.0
4.2
29.5
SERIAL PROGRAMMING PORT
LEAKAGE DISTANCE - 39.4"
LOCKOUT INDICATOR BEACON
AND COUNTER
OPERATING LEVER
BATTERY PACK
(HOT STICK REPLACEABLE)
15.8
8.7
22.0
15.0

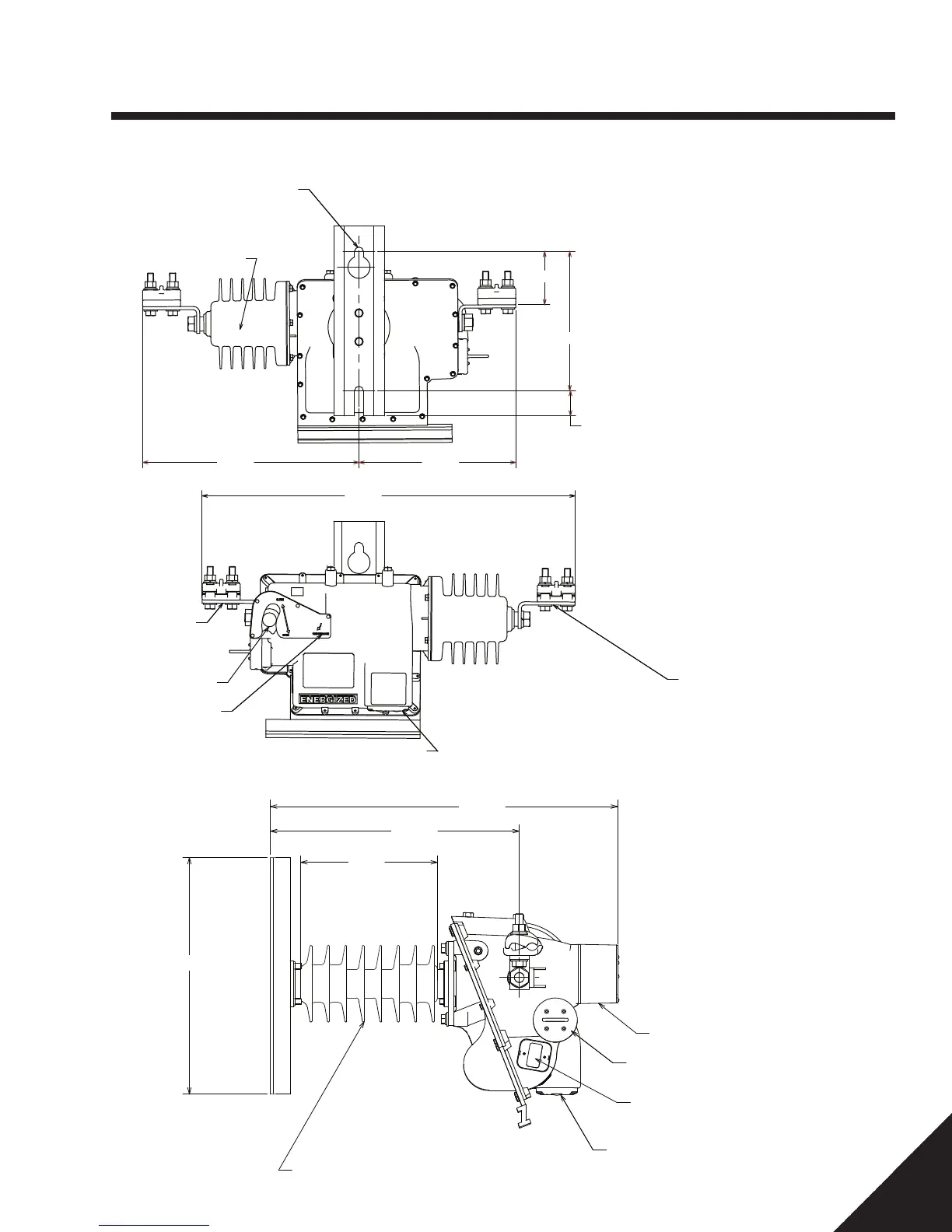

Dimensions - Pole/Structure mounting
1 — Overview
Side View
Front View
Back View
