Huck 2012 Series - Page 19

2012 series Tooling (HK969) Alcoa Fastening Systems
17
125150
End Cap
506488
Wiper*
124828
Washer
123774
Piston
Assy
500621 Pin
124333-1
Trigger
505496
Dowel Pin
116404-1
Cable
Assembly
123766
Handle
Assembly
2012 Head / Handle
506492
Spring
2
124211
Pintail
Deflector
*Note orientation of
Wipers and
Polyseals.
** WARNING Sticker
MUST be purchased
and placed as shown
any time it becomes
worn, lost, or
damaged or if
Handle/Head is
replaced.
505817
Wiper*
122432
Gland Cap
505818
Polyseal*
501110
Back-up
Ring
500816
O-ring
123775 Front
Gland Assy
506160
Polyseal*
506654
Washer
506653
Retaining
Ring
124448-2
Pintail Tube
3
1
1
1
1
2
2
2
2
2
123770 End Cap &
Adapter Assembly
123772
Pintail Bottle
123771
Washer
501007
Retaining
Ring
506488
Wiper*
124828
Washer
2012B Head / Handle
All components same as
2012 except as shown here.
111795
Retaining Nut
120588 Stop
Notes:
Piston Assembly 123774 includes:
124258 Piston (not sold separately)
506160 Polyseal
506653 Retaining Ring
506654 Washer
Front Gland Assembly 123775 includes:
123757 Front Gland (not sold separately)
122432 Gland Cap
505818 Polyseal
500816 O-Ring
501110 Back-up Ring
505817 Wiper
Pintail to be used ONLY for -04 and
-05 size fasteners.
2
3
1
123761
Adapter
590517
Sticker
590240-1
WARNING
Sticker

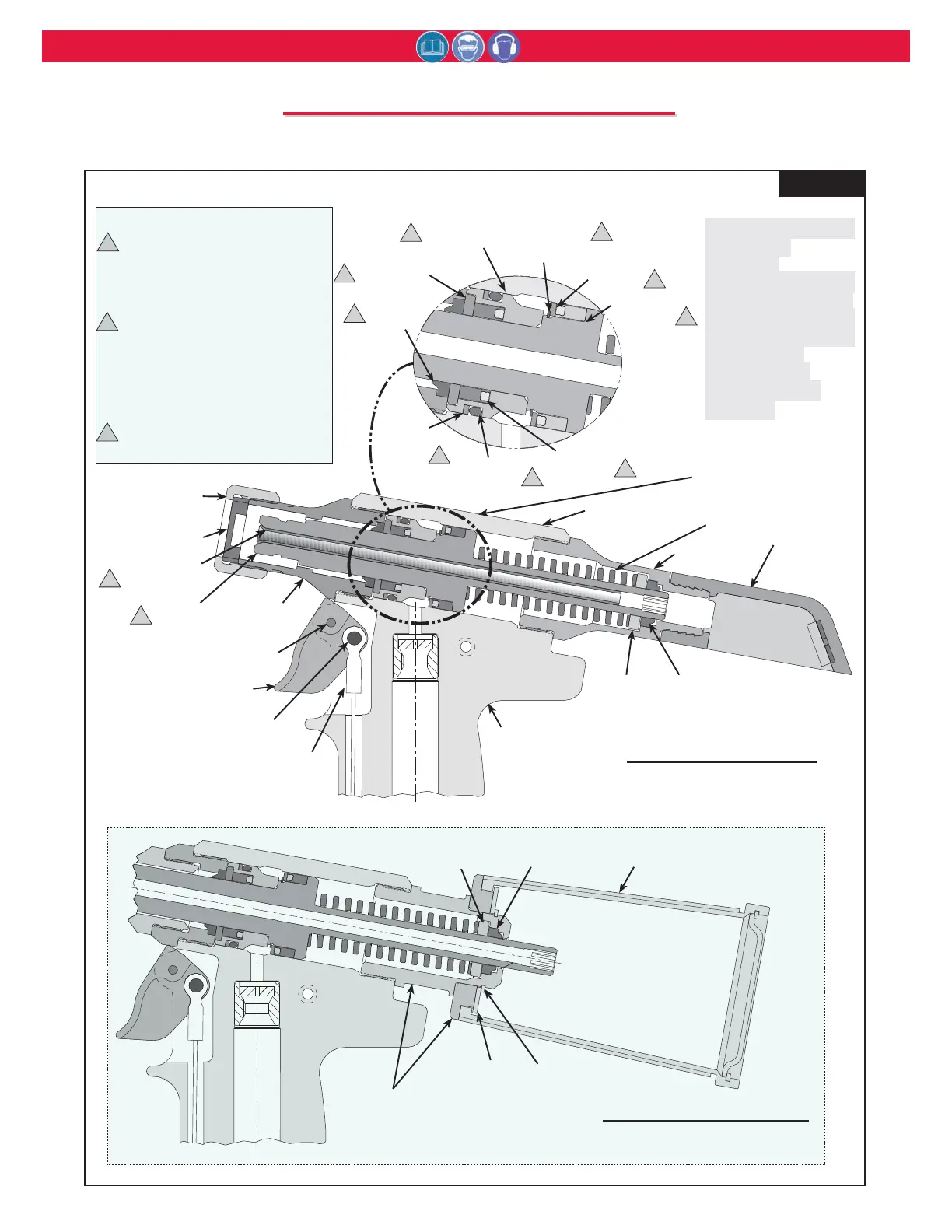

Figure 8
**
T
T
OOL
OOL
A
A
SSEMBLY
SSEMBLY
D
D
RAWINGS
RAWINGS
(pages 16-22)
**
