Huck 2012 Series - Page 20

2012 series Tooling (HK969) Alcoa Fastening Systems
18
506648 Washer
124245 Slide & Tube Assembly
(shown in ON position)
123577 End Cap
500790 O-ring
500778 O-ring
500790 O-ring
500807 O-ring
506628 Washer
501007 Retaining Ring
502310 Retaining Ring
123578 Spacer
506488 Wiper*
124828 Washer
123784 Adapter
123761 Adapter
500621 Pin
124333-1 Trigger
505496 Dowel Pin
116404-1 Cable Assembly
123766 Handle Assembly
123772
Pintail Bottle
2012V Head / Handle
506492 Spring
505817
Wiper*
122432
Gland
Cap
505818 Polyseal*
501110
Back-up
Ring
500816 O-ring
123757 Front Gland
506160 Polyseal*
506654 Washer
506653 Retaining Ring
*Note orientation
of Wipers and
Polyseals.
123774-1
Piston Assy
Notes:
Piston Assembly 123774-1 includes:
124258-1 Piston (not sold separately) 506160 Polyseal 506653 Retaining Ring 506654 Washer
Front Gland Assembly 123775 includes:
123757 Front Gland (not sold separately) 122432 Gland Cap 505818 Polyseal 500816 O-Ring 501110 Back-up Ring 505817 Wiper
Pintail to be used ONLY for -04 and -05 size fasteners.
2
3
1
2
124448-2
Pintail Tube
3
1
1
1
1
2
2
2
2
2
111795
Retaining Nut
120588 Stop

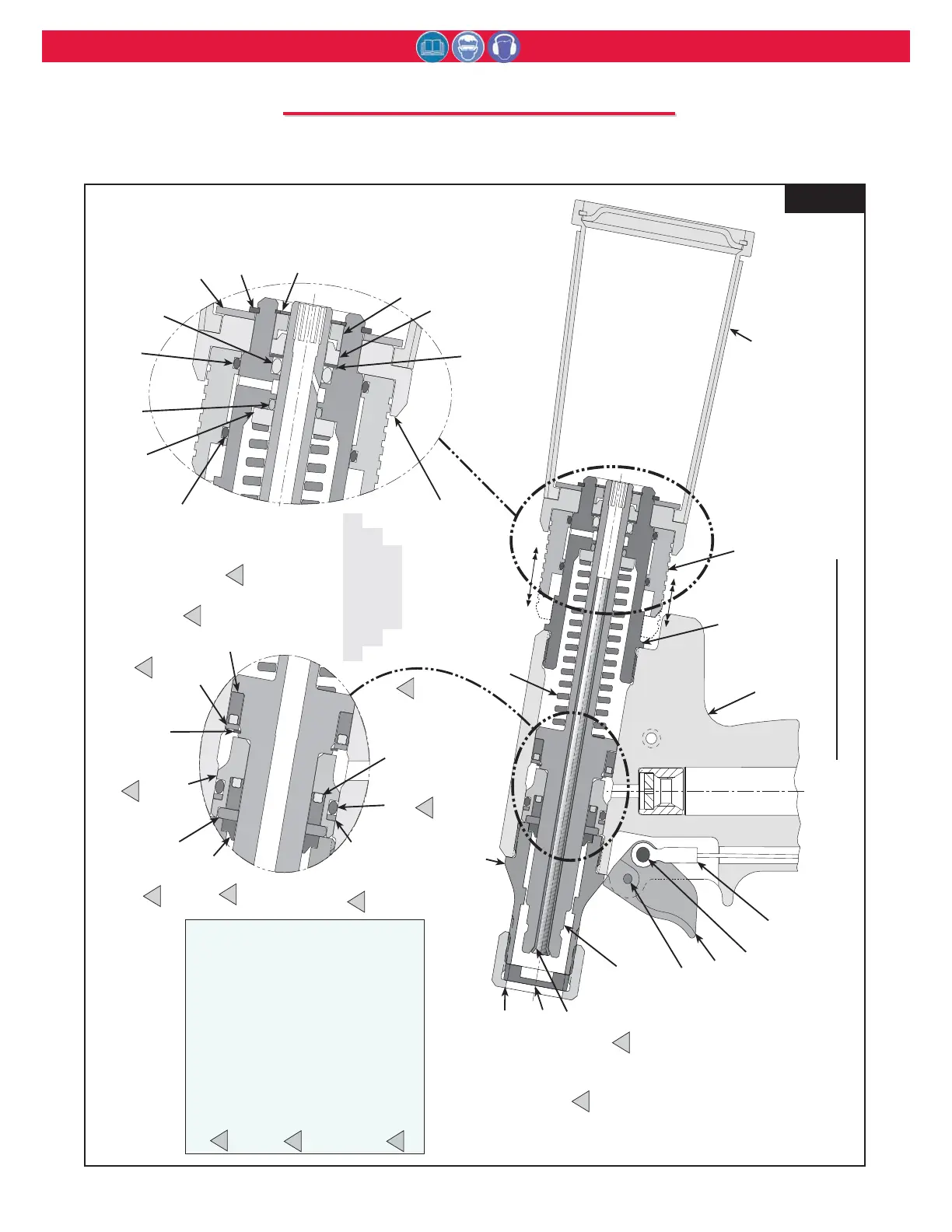

Figure 9
*
T
T
OOL
OOL
A
A
SSEMBLY
SSEMBLY
D
D
RAWINGS
RAWINGS
(pages 16-22)
