HK-150 Nutsetter
The HK-150 NUTSETTER sets 3mm
through 3/8-24 threaded aluminum inserts
and up to 1/4-20 steel inserts. Size chang-
es are accomplished by changing the
PULL-UP STUD and ANVIL. No tools
required.
Installing threaded Inserts:
1. Make sure proper Pull-up Stud and
are Anvil in place.
2. Thread the insert on the Pull-up Stud
until all threads on the insert are
engaged.
3. Position the Insert into workpiece with
the appropriate size hole and pump
the Handles until the Insert is set.
(You will feel the tool come to a denite
stop when the insert is properly set. STOP
PUMPING HANDLES)
Releasing the Tool: (After Insert has been
set in the workpiece)
1. Press the Releasing Button while
squeezing Handles.
2. Rotate the Turn Nut in a counterclock-
wise direction until the Pull-up Stud is
released from the Threaded Insert.

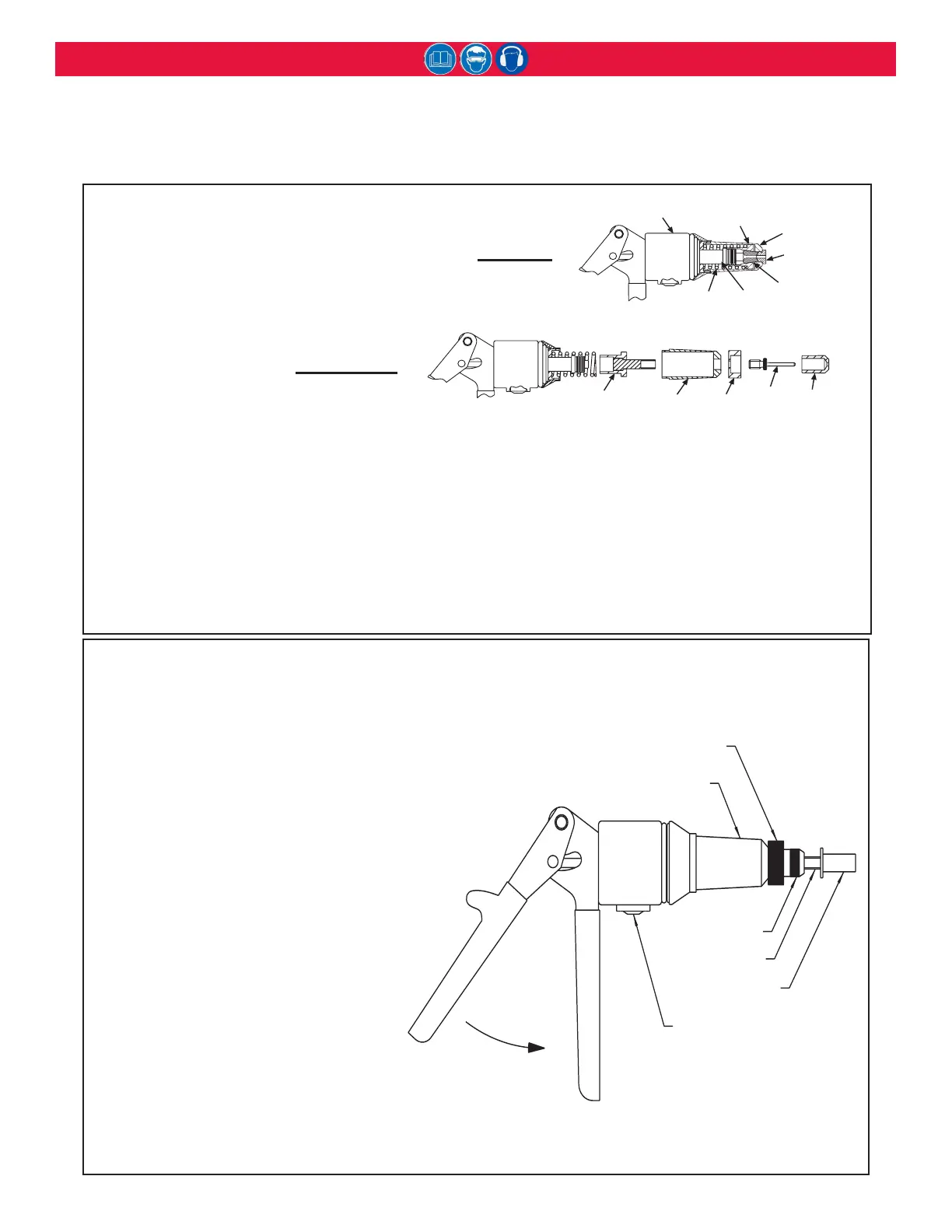

convertIng a rIveter to a nutsetter
nutsetter
1. Completely retract the tool by squeezing HANDLES
and pressing the RELEASING BUTTON. (Figure 3)
2. Remove NOSE PIECE from NOSE TUBE. Remove NOSE
TUBE, JAWS and JAW HOLDER.
The parts that were removed should be stored for
future use as a riveter. The tool is ready to start add-
ing NUTSETTER accessories as follows:
3. Screw MASTER SHAFT assembly on PULLER SHAFT
and replace NOSE TUBE as shown.
4. Slide TURN NUT over the extended secon of the
MASTER PULLER SHAFT. Screw the appropriate
PULL-UP STUD into MASTER SHAFT ASSEMBLY.
(NOTE: this is a le hand thread and must be
screwed in counterclockwise.)
5. Push appropriate ANVIL over PULL-UP STUD into
TURN-NUT.
The HK-150 can be converted from
a riveter to a nutsetter by changing
several of the nose components. No
tools required as parts require hand
tightening only.
rIveter
