6

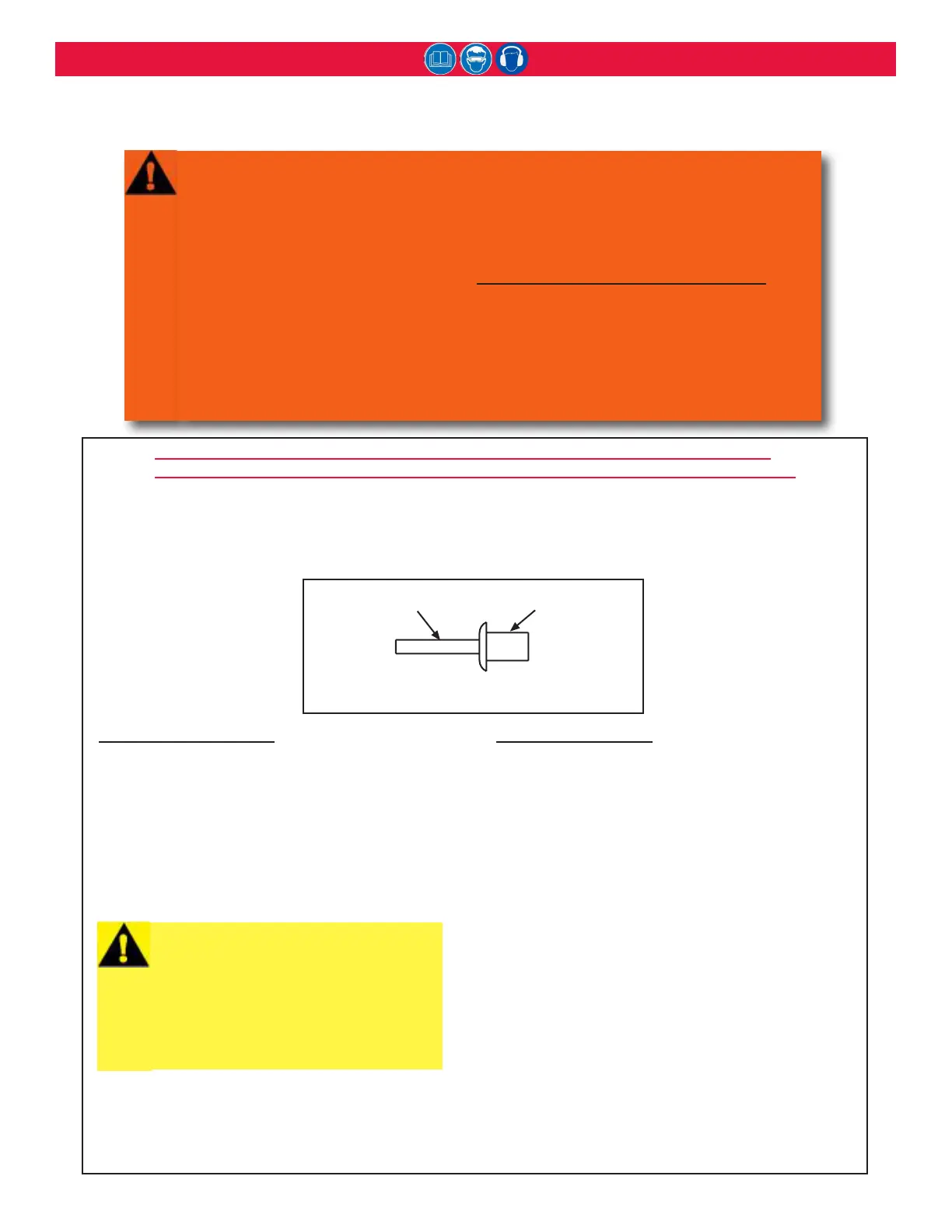

oPeratIng InstructIons
The HK-150 hydraulic riveter installs fasteners by a pull and release system. Placing lever in “PULL” position,
and pumping the handles (see gure 2 on the next page) will actuate the tool. After installing the fastener, the
tool must be returned to its original position, which releases the pintail. To do this, point the tool downward,
place lever in “RELEASE” position, and squeeze handles (see gure 3). The pintail should drop out.
*The HK-150 has a .625 inch work travel and will set most rivets in one cycle. If the tool reaches the end
of its travel before the rivet breaks, DO NOT continue pumping the handles on the tool. Release the tool by
pressing RELEASE Button and then squeezing the handles. Next, regrip the rivet, and pump the HANDLES
and nish the installation.
Nose Piece Installation:
1. Select the proper Nose Piece for the correct
installation of fastener and function of tool.
2. Remove the Nose Piece in the tool by
unscrewing it in a counterclockwise direction.
3. Hand tighten the Nose Piece into the Nose
Tube.
Fastener Installation:
Install correct nose piece on tool (see Nose Piece
installation section).
1. Insert pintail of rivet in to the Nose Piece.
2. Position the Rivet Body in to Work Piece to
be fastened.
3. Hold the tool steady against the work piece
and pump Handles until rivet is set and pintail
is broken*. See gure 2
CAUTIONS:
● Before operating tool, make
sure that all Nose parts have
been screwed in HAND TIGHT.
● Frequently check that nose
components do not vibrate
loose during operation.
READ INSTRUCTIONS THOROUGHLY PRIOR TO OPERATING THE RIVETER. THIS
RIVETER IS DESIGNED FOR INTERMITTENT DUTY AND MAINTENANCE WORK ONLY.
WARNINGS:
● Read full manual before using tool.
● A half-hour training session with qualied personnel is recommended before
using Huck equipment.
● To avoid severe personal injury: Wear approved eye and ear protection.
● Be sure of adequate clearance for Operator’s hands before proceeding with
fastener installation.
● Tool shall not be operated if directed toward the operator or any person.
● Beware of ejection of fastener; turn head in each operation to avoid exposure.
HK-150 Series Tools (HK1058) Arconic Fastening Systems and Rings
