Huffy BMX - Caliper Rim Brake Cable Adjustment

25
Maintenance
Caliper Rim Brake System Setup - continued
2
3
1
1-1
2-1
3-1
4-1
4-2
4-3
4

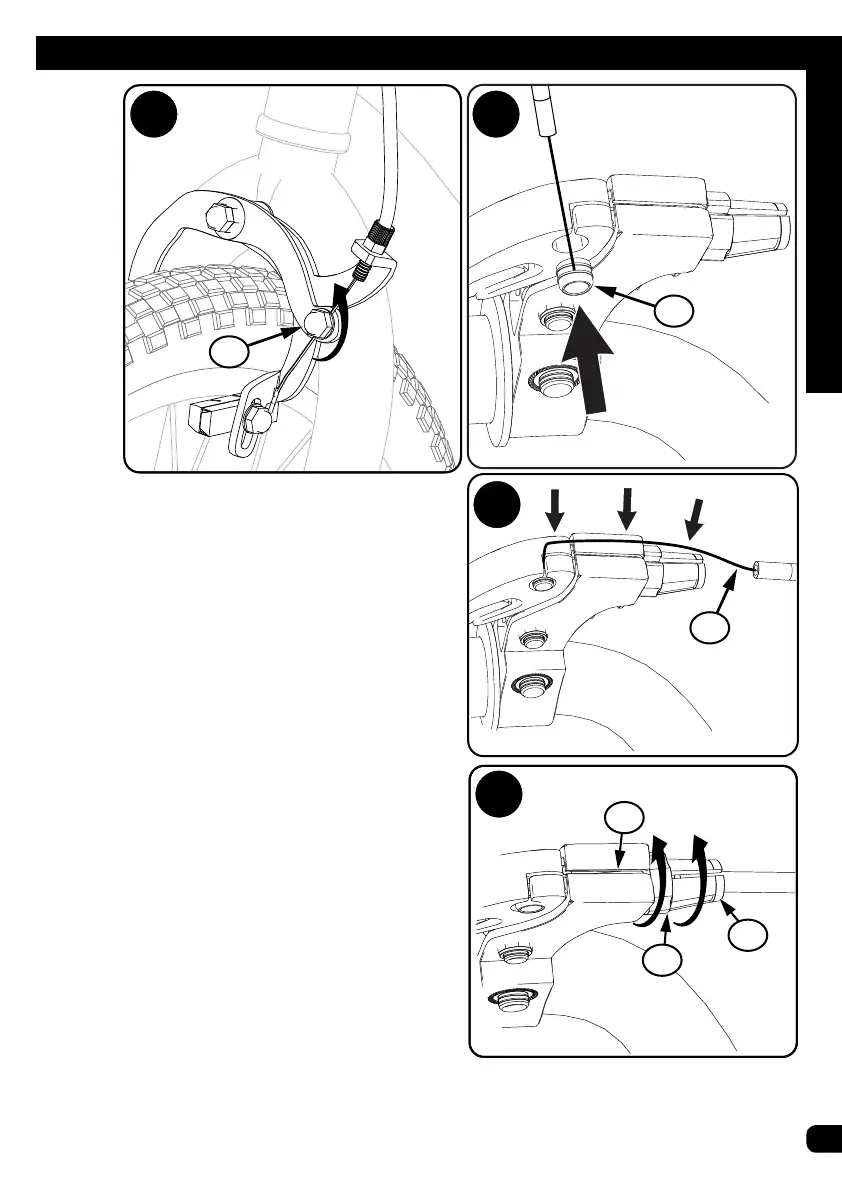

Step 1:
• Loosen Cable Nut

so that the cable is
loose.
Step 2:
• Insert Cable Barrel

into Brake Lever.
Step 3:
• Insert Brake Cable

into Groove as shown.
Step 4:
• Rotate Housing

Groove away from Cable
Groove

and tighten Housing Nut

.
