Huffy BMX - Caliper Rim Brake Pad Clearance

26
Caliper Rim Brake System Setup - continued
6
1/16” 1/16”
(1.5 mm)
5-1
6-1
6-2
6-3
5-2
5
7
0
7-1

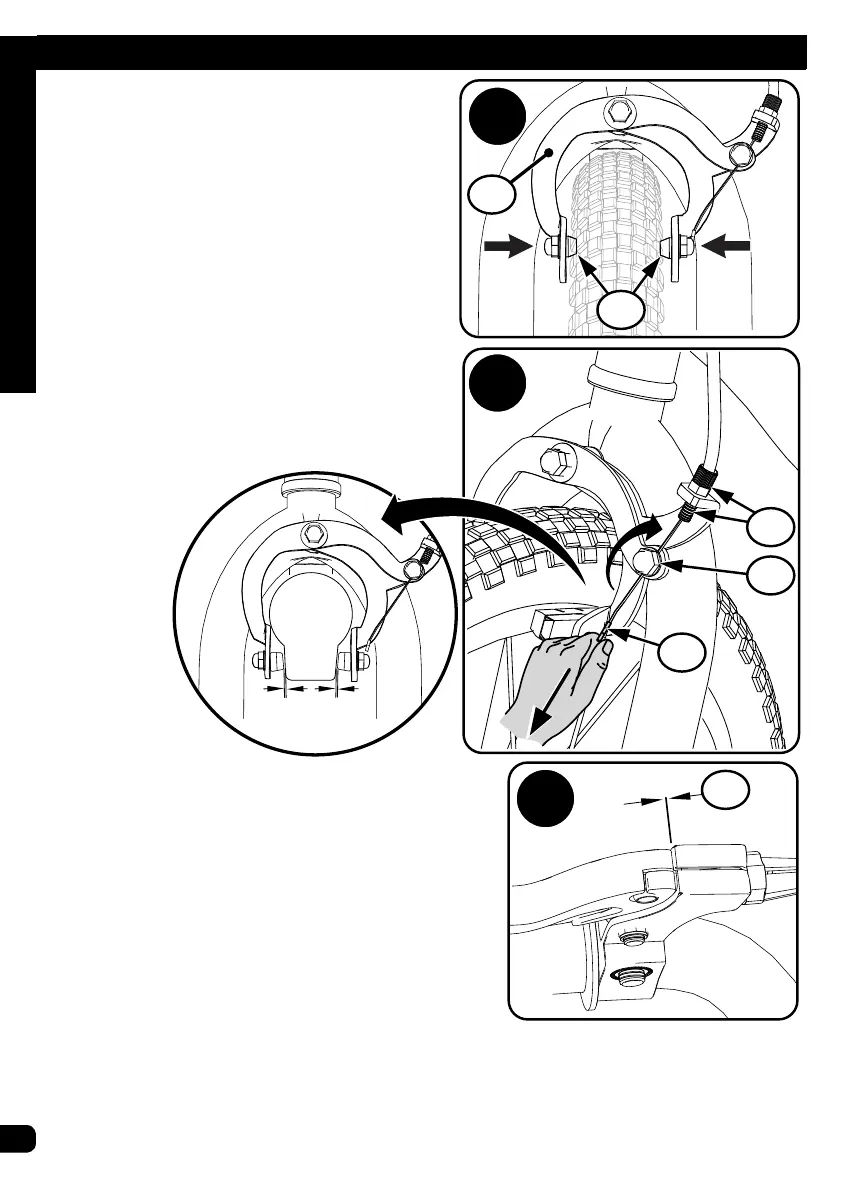

Step 5:
• Squeeze Brake Arms

so that Brake Pads

are against the Rim.
Step 7:
• Make sure the Brake Lever is not loose

.
Step 6:
• Pull Brake Cable

tight.
• Tighten Cable Nut

.
• Adjust Cable Nut

for 1/16in (1.5mm) Brake
Pad clearance.
Maintenance
