18
Assembly
Re ector Installation (as equipped)
Re ector Installation:
1. Position FRONT Re ector
A
so it points
straight forward.
2. Tighten Clamp Screw.
3. Position Seat Post Re ector (if equipped)
B
so it points straight backwards.
4. Tighten Clamp Screw.
NOTE: Do not over-tighten. This will damage
the Clamp.
B
A

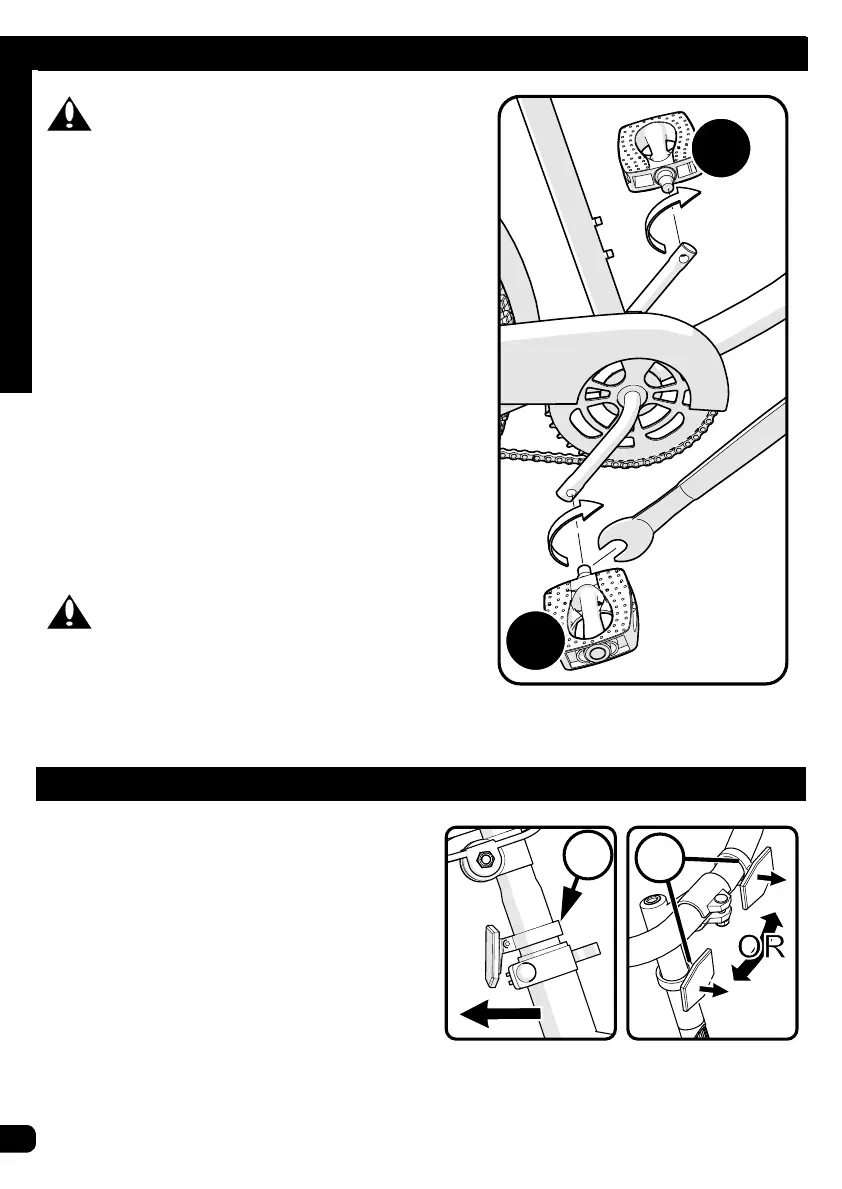

Pedal Installation
CAUTION: There is a RIGHT pedal marked
R
and a LEFT pedal marked
L
.
NOTE: A Pedal Wrench is preferred for attaching Ped-
als. A thin open-end
wrench can also be used.
• The pedal marked
R
has right-hand threads.
Tighten it in a clockwise direction.
• The pedal marked
L
has left-hand threads.
Tighten it in a counterclockwise direction (anti-
clockwise).
• Turn the right pedal marked
R
into the right side
of the crank arm, and the left pedal marked
L
into
the left side of the crank arm.
Tighten the pedals:
• Make sure the threads of each pedal are fully into
the crank arm.
WARNING: Ensure pedals are secure in
crank arms so they will not loosen. Periodically check
tightness.
L
R
