12
Assembly

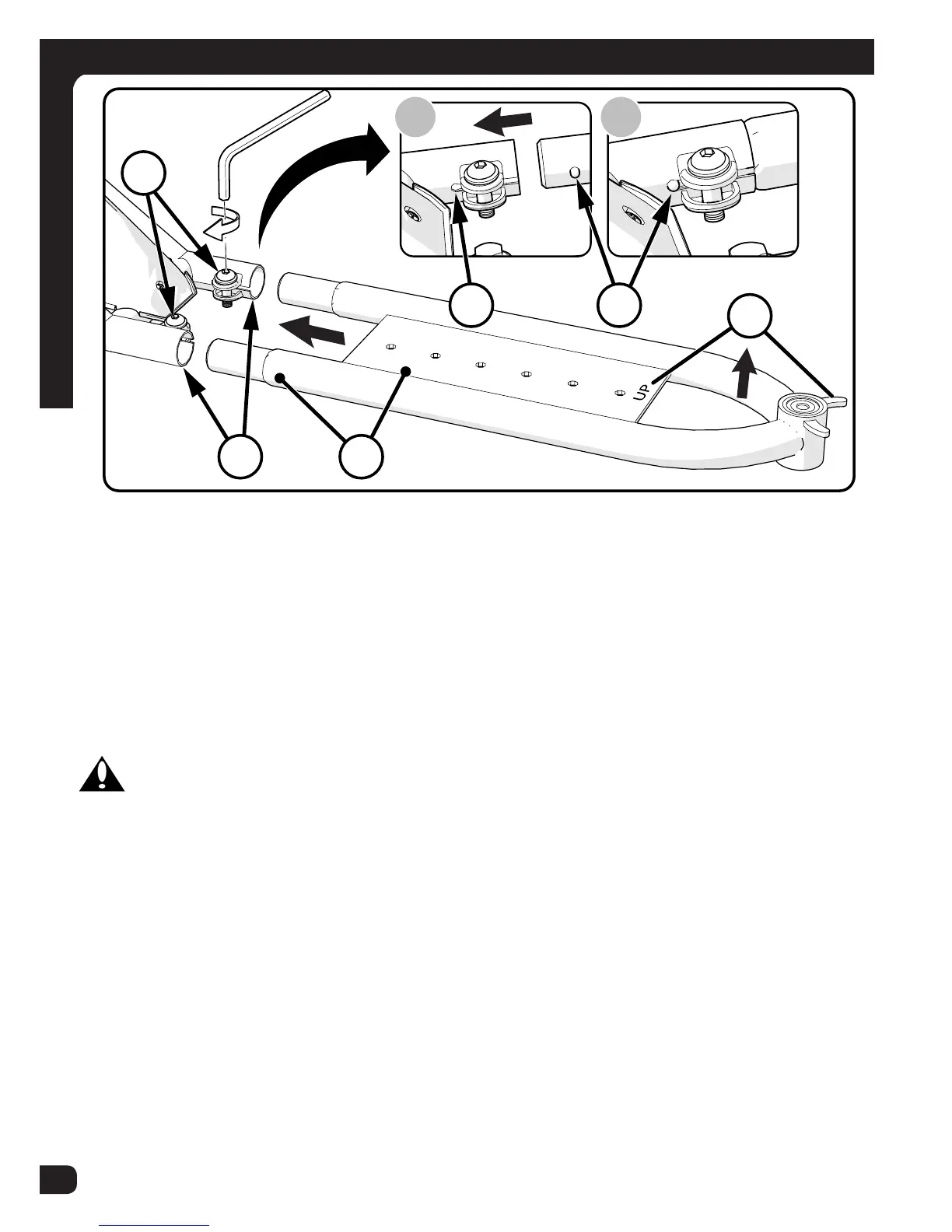

Assemble Front Frame to Rear Frame
NOTE: See Torque Chart for recommended torques.
B
A
C
EF
D
1 2
STEPS:
NOTE: Mounting Screws (A) may be pre installed at the factory.
1. Begin by loosening Screws (A) slightly.
2. Make sure rear section of Frame (B) is right side UP: Rear Stop (C) will be on the
top of the Frame.
3. Insert Rear Frame Tubes fully and evenly into front Frame Tubes (D).
WARNING: Ensure the Lock Button (E) on the Rear Frame section is fully
engaged with the Locking Hole Stop (F) in the end of the front Frame Tube. Failure to
fully engage the lock button can result in personal injury.
4. Tighten Screws (A) evenly and securely.
