16

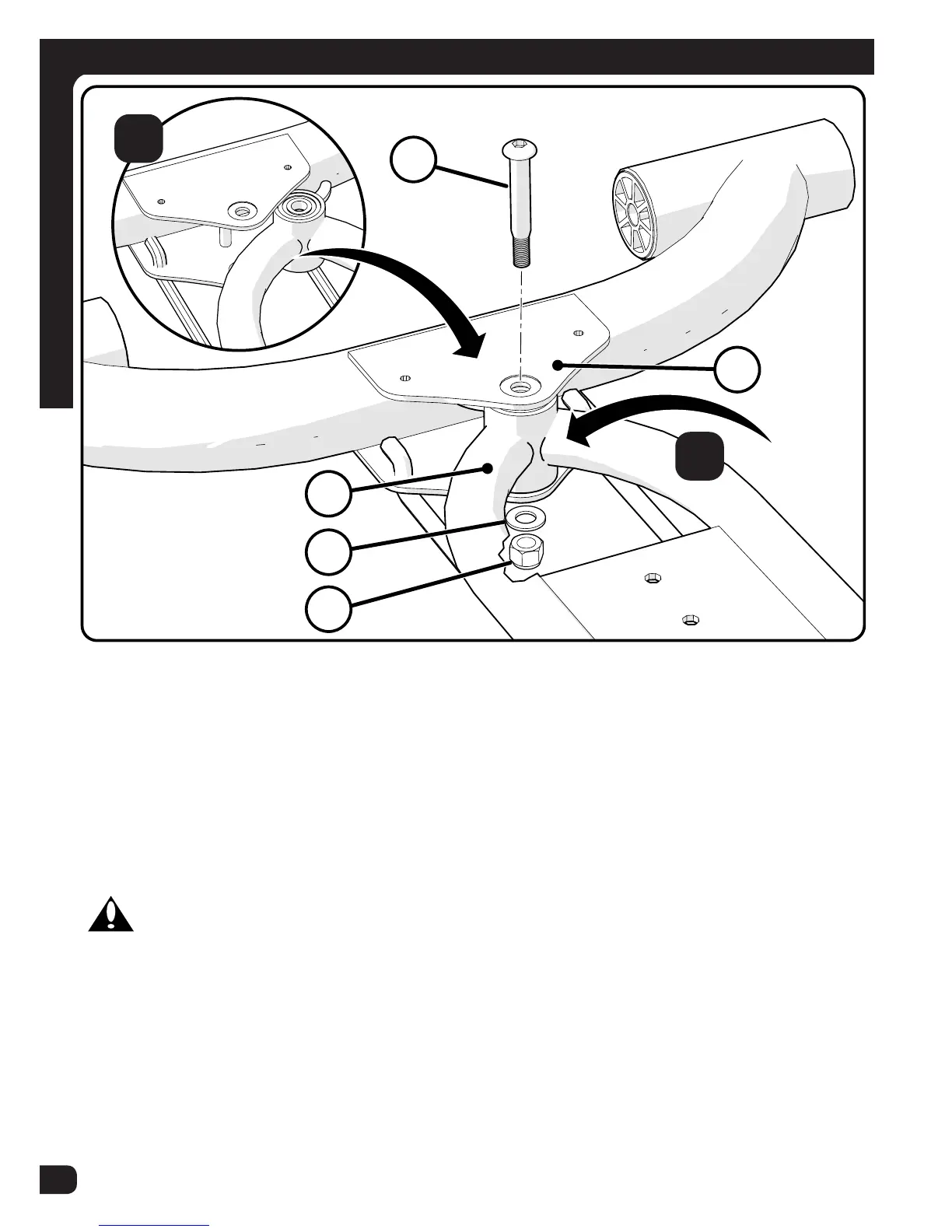

Assemble Rear Steering Axle
A
E
D
C
B
1
2
STEP 3:
1. Rotate Rear Axle back to horizontal, while moving Frame (A) into place between
Pivot Bracket holes (B).
2. Swing the Frame (A) into the Pivot Bracket (B) so the mounting holes line up.
3. Install Pivot Bolt (C) though Pivot Bracket and Rear Frame pivot end.
4. Install Washer (D) and Locknut (E) onto Pivot Bolt.
5. Tighten Locknut securely. See Torque Chart for recommended torque.
WARNING: Periodically check Pivot Bolt Nut for tightness. If the Pivot Bolt
comes lose, damage to the product or rider injury may occur.
Assembly
