Assembly
WARNING: To prevent the seat coming loose and possible loss of control, the
“MIN-IN” (minimum insertion) mark
A
on the seat post must be BELOW the top of the
seat tube
B
.

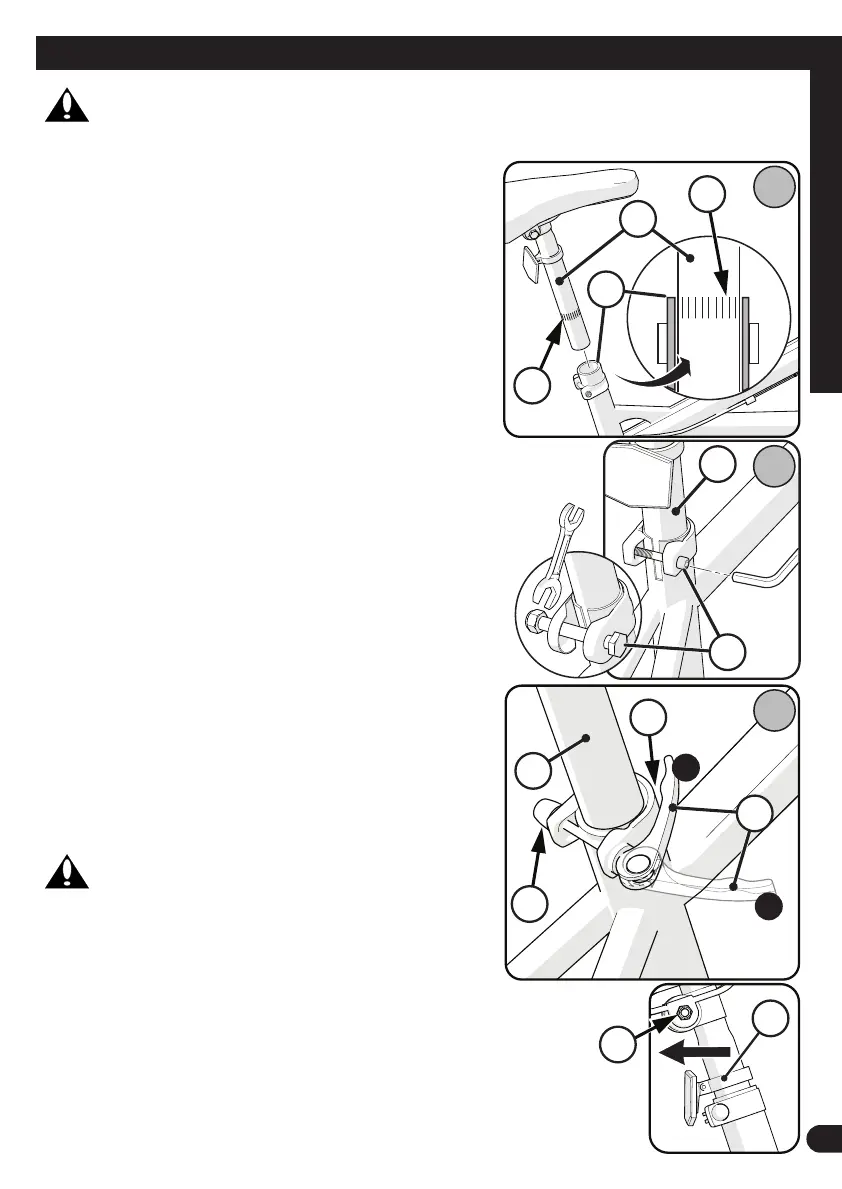

STEP 1 INSERT SEAT POST INTO SEAT TUBE:
• If needed, loosen seat post clamp screw
D
or open
the quick release lever
E
.
• Point the seat forward and put the seat post
C
into
the seat tube
B
with the “MIN-IN” marks BELOW
the top of the seat tube as shown.
STEP 2  BOLT SEAT CLAMP: (various models)
• With seat post
C
inserted according to STEP 1 -
Tighten screw
D
securely so seat supports the rider
without moving.
STEP 3  QUICK RELEASE LEVER: (various models)
CAUTION: Operate the quick release lever by HAND
ONLY  DO NOT USE TOOLS.
1. As needed, open and close the quick release lever
E
with one hand and tighten or loosen the adjusting
nut
G
by hand, so that you  rst feel resistance to the
quick release lever when it is in the “OPEN” position
1
.
2. Push the quick release lever to the “CLOSE” position
2
- It will take strong force to clamp securely so
that the quick release Lever lays against the seat
post clamp
F
.
WARNING: You must use strong force to
move the quick release lever securely to the “CLOSE”
position
2
. This ensures that the seat does not move
during normal operation.
NOTE:
I
Suggested Torque 20-22NM - Verify seat does not move
while riding.
REFLECTOR: (as equipped)
Position seat post re ector (if equipped)
H
so it points straight
backwards. Tighten clamp screw.
Seat Installation
A
A
G
1
2
3
1
2
C
B
C
F
C
E
H
D
I
