Accessories (various models)

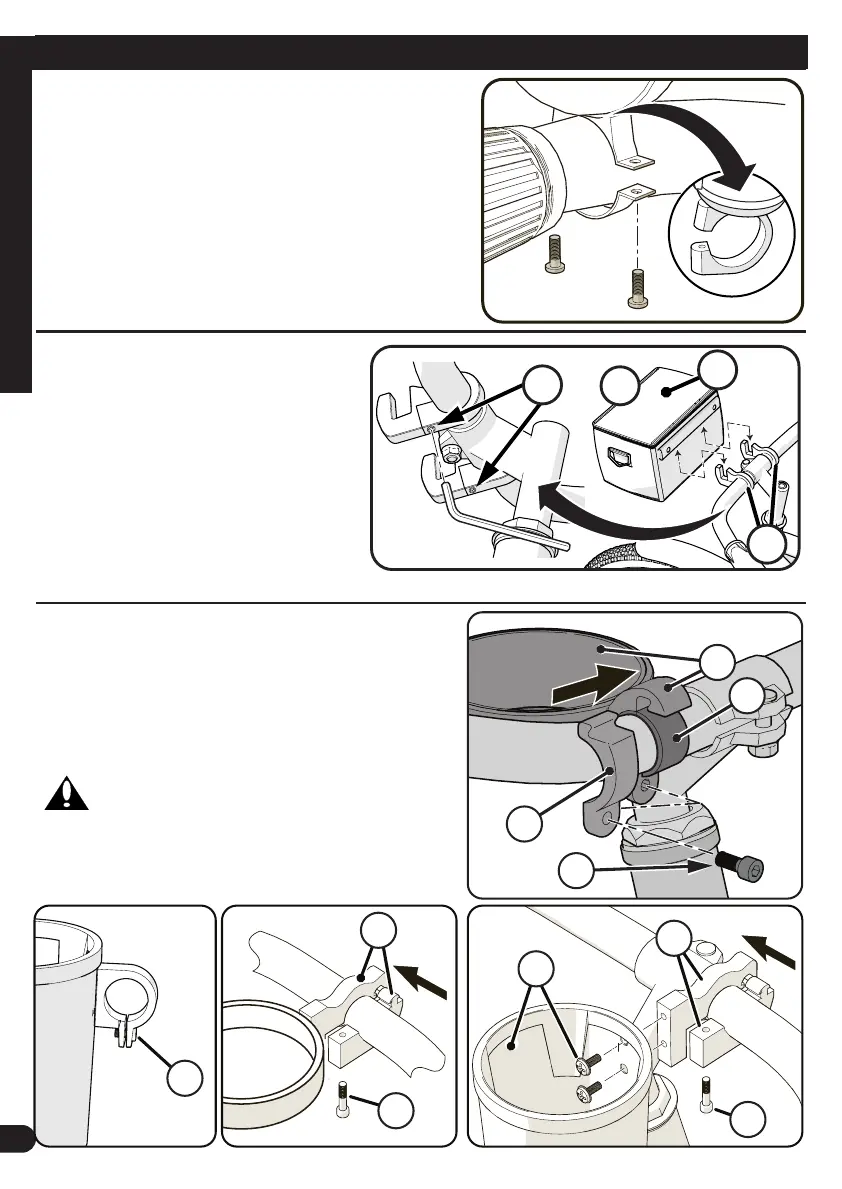

INSULATED BAG INSTALL:
1. Attach Bag
A
to Handlebar by
sliding the Back Brace
B
securely
into the Bracket Slots
C
.
2. If needed, adjust Brackets
C
by
loosening Screws
D
, and moving
Brackets closer together or further
apart so that Bag  ts into the
Brackets Slots.
3. Tighten Screws
D
Securely.
LUGGAGE RACK ADJUSTMENT:
1. Loosen Adjustment Knob
A
by turning
counter clockwise.
2. Slide Adjustable Rack
B
into position
3. Tighten with Adjustment Knob
A
by
turning clockwise.
NOTE: Do not over-tighten. This will damage
the Knob.
B
A
A
B
C
D
CUP HOLDERS VARIOUS:
• If necessary, rotate Cup Holder to level position.
• Attach Cup Holder using supplied hardware as
shown. Tighten securely.
• Follow numbers for assembly steps.
WARNING: Do not carry hot liquids!
Testing Stem and Handlebar Tightness
TO TEST THE TIGHTNESS OF THE STEM:
• Straddle the front wheel between your legs.
• Try to turn the front wheel by turning the handlebar
1
.
• If the handlebar and stem turn without turning the front
wheel, realign the stem with the wheel and tighten the
stem bolt(s) tighter than before (about 1/2 revolution
only at a time) until the handlebar and stem do not turn
without turning the front wheel.
TO TEST THE TIGHTNESS OF THE HANDLEBAR CLAMP:
• Hold the bicycle stationary and try to move the ends of
the handlebar up and down
2
.
CAUTION: Do not exceed 100 lbs (45 kg) downward force.
• If the handlebar moves, loosen the bolt(s) of the handlebar clamp.
• Put the handlebar in the correct position and tighten the bolt(s) of the handlebar
clamp tighter than before.
• If the handlebar clamp has more than one bolt, tighten the bolts equally.
• Do this test again, until the handlebar does not move in the handlebar clamp.
1
2
HANDLEBAR BELL INSTALLATION:
1. Remove screws from Bell.
2. Position Bell on handlebar within easy reach,
with hands on the handlebar grips.
3. Install screws and tighten.
NOTE: Bell may attach with 1 or 2 screws.
ACCESSORY INSTALLATION:
• Attach Accessory
1 2
or
3
to Handlebar using
the supplied Straps.
• Tighten Straps so Accessory does not move.
WARNING:
• Do not over tighten.
• The Straps may break.
• Do not block Re ectors.
• Weight Limit: 5 lb (2.3 kg)
1
2
3
Accessories (various models)
Assembly
