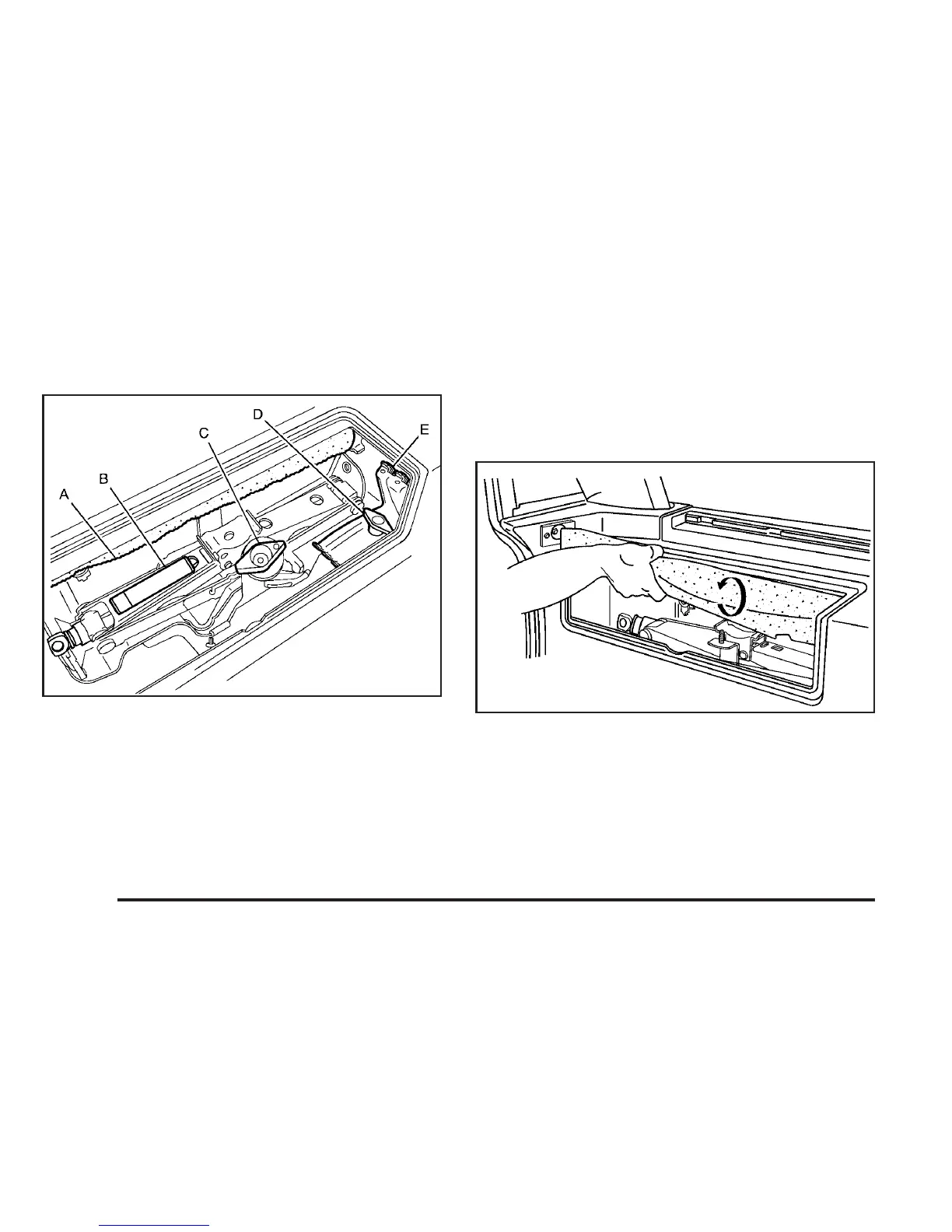

Once it is removed, you will see the following tire
changing equipment:
A. Tool Bag
B. Jack
C. Jack Wing Nut
D. Wing Nut Retaining
Wheel Blocks
E. Wheel Blocks
To remove the equipment, do the following:
1. Unscrew the wing nut (D) retaining the wheel blocks
and remove them.
2. Unscrew the wing nut (C) retaining the jack and
remove it.
3. Pull the tool bag (A) up and out from the front
retention clip.
Jack A and Tools
5-72
