Humminbird 1158c Combo Product Manual

Down Imaging™/Side Imaging® Combo View (
1198c SI only)
Down/Side Imaging® Combo View shows Down Imaging™ and Side Imaging® sonar
information in a combination split screen, where the Down Imaging™ View is displayed on the
left and the Side Imaging® View is displayed on the right. For more information about each side
of this combo view, see Down Imaging™ View and Side Imaging® View.

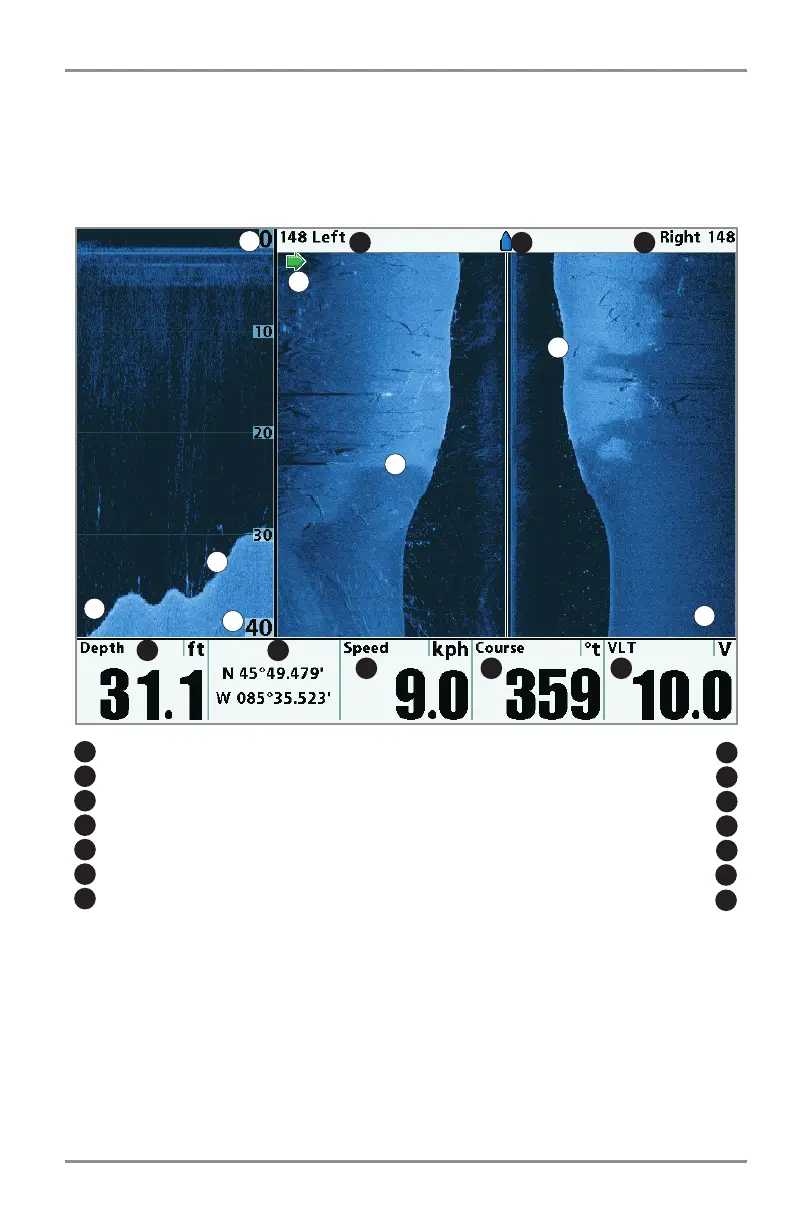

Down Imaging™/Side Imaging® Combo View
1
2
3 4
Depth
1
Boat Position: Latitude/Longitude
2
Speed: speed of boat
3
Course: the current direction the boat is traveling measured in degrees from North
4
VLT: Voltage
5
Down Imaging™ Window
6
Side Imaging® Window
7
5
Bottom Return
8
Topography Changes
9
Side view Range
10
Boat Icon
11
Green Arrow: Active Side
12
Upper Range
13
7
11
9
10
6
12
13
8
8
10
Lower Range
14
14
