Side Imaging® View
(898c SI and 998c SI only)
Side Imaging® View shows a shadowed right- and left-looking view from the
boat as the boat passes over the bottom. See Understanding the Side
Imaging® Display for more information about interpreting the Side Imaging®
View.
• Side Imaging® X-Press™ Menu: Press the MENU key once to access
the Side Imaging® X-Press™ Menu. You can choose a side of the
water to view, the sensitivity of the sonar to see more or less detail,
the side beam range, the chart scrolling speed, and the display color
scheme. See Side Imaging® X-Press™ Menu, as well as
Understanding the Side Imaging® Display for more information.
• Freeze Frame: Press any arrow on the 4-WAY Cursor Control key, and
the SI View will freeze and a cursor will appear on the screen. Use
the 4-WAY Cursor Control key to move the cursor over a sonar return,
and observe the following:
- The depth of the sonar return you choose will be displayed at
the bottom of the screen in the cursor information box.
- Zoom+: Press the ZOOM+ key, and a zoom box will appear and
magnify the area you choose, providing more detail in the
individual sonar returns. The zoom scale will increase or
decrease as you press + or - repeatedly. Press EXIT to remove
the zoom box and return to Side Imaging® View.

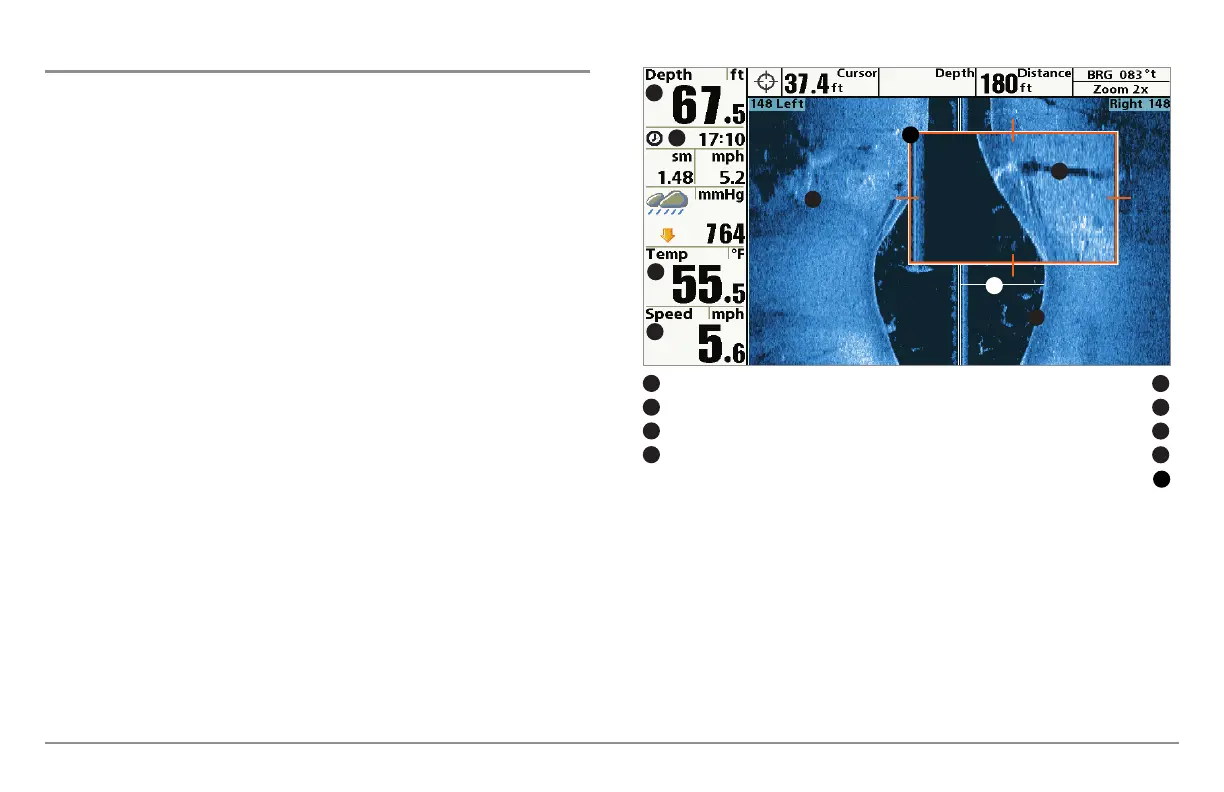

Zoom Box
Side Imaging® View
Depth Water Column
1
5
Triplog Shadows
2
6
Water Surface Temperature Topography Changes
3
7
Speed Bottom Return
4
8
9
5
6
7
8
1
2
3
4
9
