Humminbird HELIX 5 SERIES User Manual

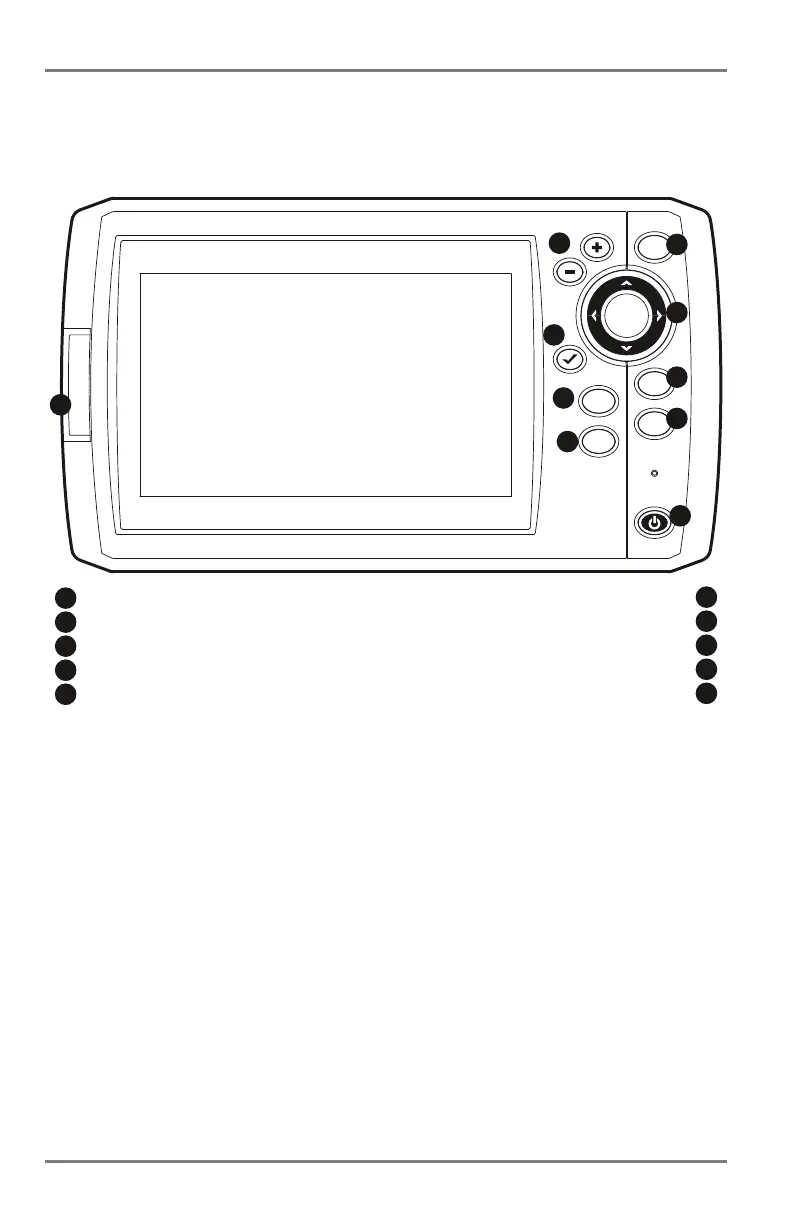

What’s on the Control Head
Your HELIX Series user interface is easy to use. A combination of keys, different views, and
situation-specific, customizable menus allows you to control what you see on the color display.
Refer to the following illustration and see Ke y Functions, Views, and T he Menu System for more
information.
VIEW
MENU
EXIT
MARK
GOTO
MOB
microSD Card Slot
ZOOM (+/-) Keys
VIEW Key
MENU Key
MARK Key
EXIT Key
1
2
3
6
7
8
4-WAY Cursor Control Key (LEFT, RIGHT, UP, or DOWN) GOTO/MOB Key
4
9
CHECK/INFO Key POWER/LIGHT Key
5
10
1
2
4
5
7
8
3
6
9
10
What’s on the Control Head
8

Humminbird HELIX 5 SERIES Specifications

General

Tracks	50
Waterproof Rating	IPX7
Display Size	5 inches
GPS	Yes
Frequency	200/455 kHz
Power Output	500 watts (RMS)
Max Depth	1500 ft (DualBeam PLUS), 350 ft (Down Imaging)
