44
OPERATOR MANUAL HCS-5 020310 5.7.x 03
Task Description
Visual inspection and cleaning
1. Make a visual inspection of the following:
● Interceptors
● Mounting plates
● Servo units
● RCUs
● Control panel
2. Look through the cables and connectors for possible wear.
3. Use soap and freshwater to clean the servo units if needed.
Clean the interceptor blades
1. Fully deploy the blades and check for any damage or marine growth.
2. Gently remove any growth.

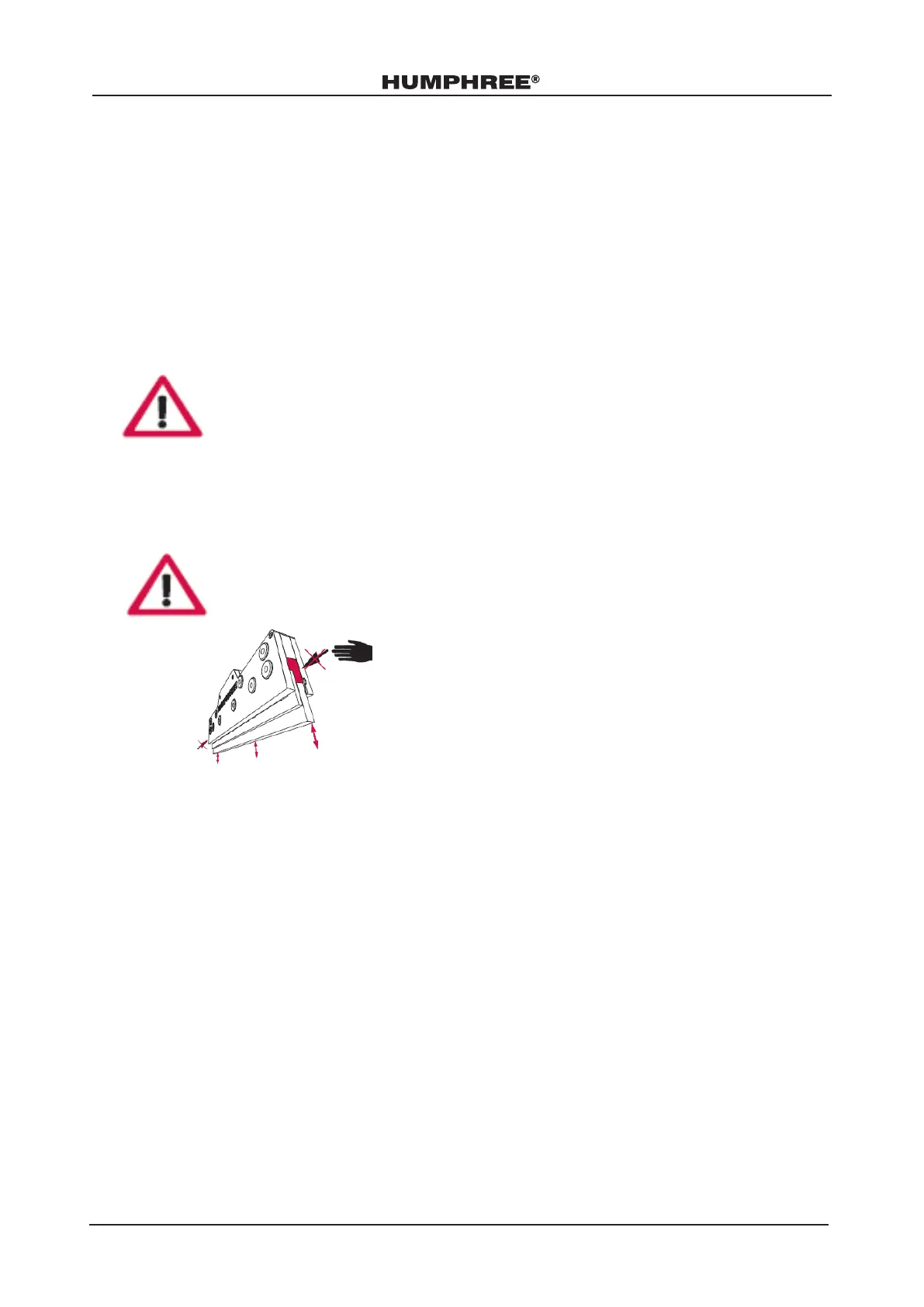

Polish the interceptor blades
Must be done after the blades have been cleaned.
1. Apply lithium based marine grease on a piece of cloth and rub a thin layer on the blade surface.
2. When the blade is shiny, wipe away any visible grease.
Replace shaft and shaft seals
Service kit:
● Shaft kit Short Composite for X, H and HA interceptors
● Shaft kit Short Metal for HE and HAE interceptors
● Shaft kit Long Metal for HE and HAE interceptors
● Part numbers to be found in sparepart pricelist
For instructions, see Workshop Manual.
Replace shaft sleeve kit
Only on steering interceptors.
Service kit: part no 023174
WARNING!
Movable parts and sharp
edges.
ATTENTION!
Never use acids or oxidizing agents of
Humphree components.
